Standard Roof Models
Standard Roof Models

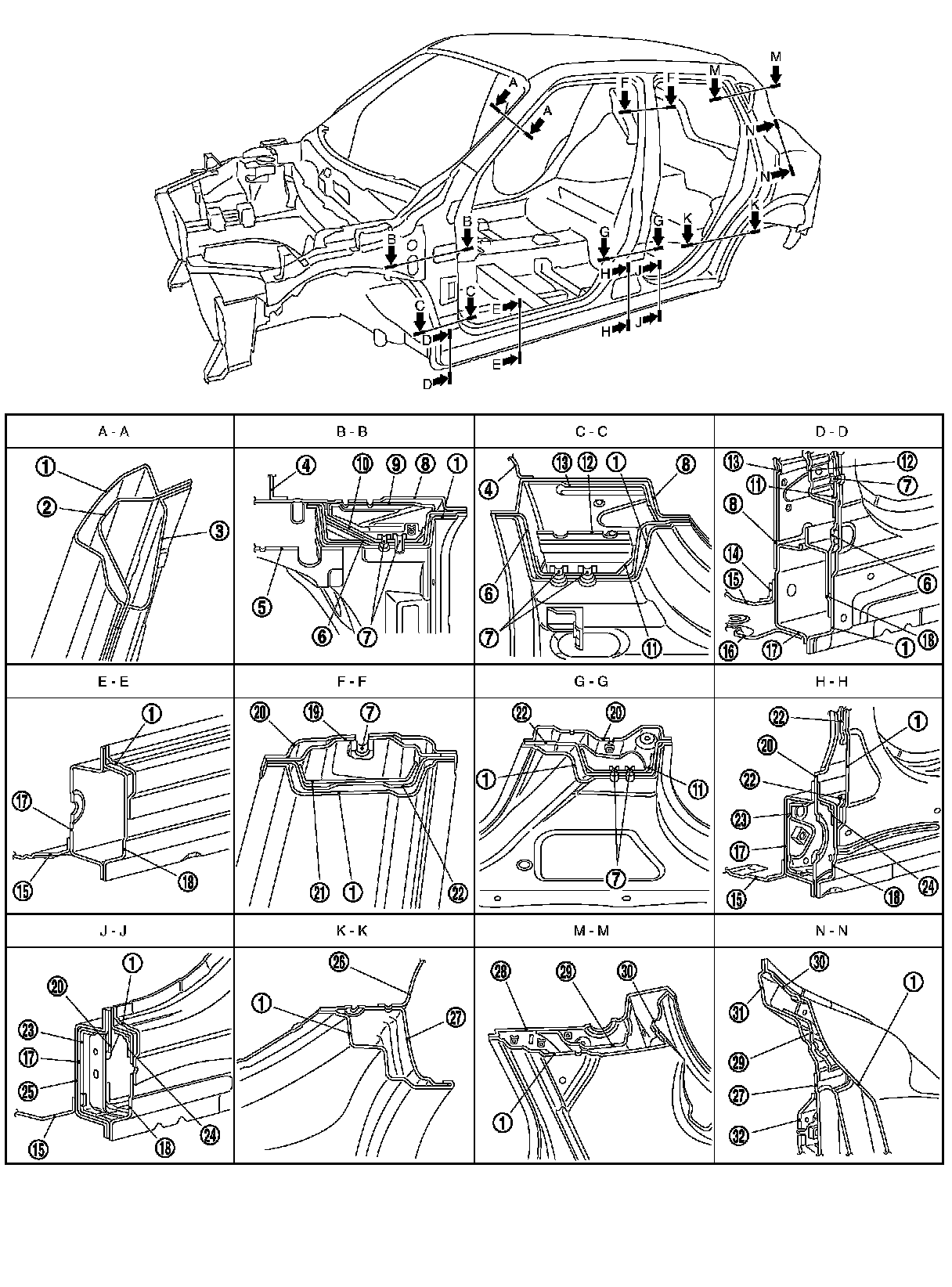

BODY CONSTRUCTION
Body Construction (Standard roof Models)
