Removal And Installation

REAR BUMPER

Removal and Installation

CAUTION:
Bumper fascia is made of resin. Never apply strong force to it, and be careful to prevent contact with oil.

REMOVAL

1.Fully open back door.
2.Remove bumper fascia mounting screws of rear combination lamp (LH and RH) lower side.
3.Remove rear fillet molding rear side. Rear Fillet Molding.
4.Remove bumper closing.
5.Remove clips of bumper lower side.

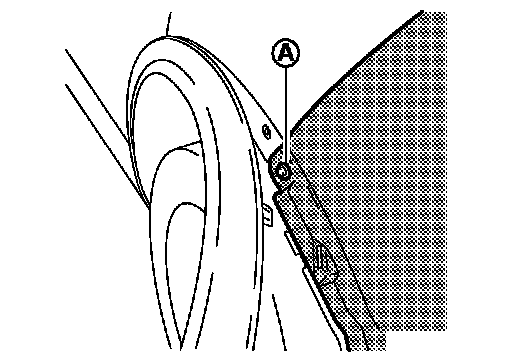

6.Remove bumper fascia assembly fixing screws (A) (LH and RH).

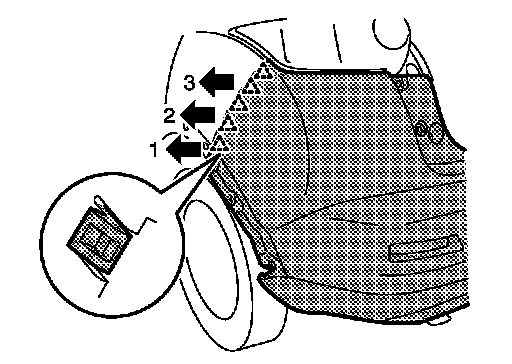

7.Pull bumper fascia side toward the vehicle side to disengage the fitting of bumper side bracket and bumper fascia side as shown by the arrow in the figure.

Broken triangle indicates : Pawl

CAUTION:
When removing bumper fascia, 2 workers are required so as to prevent it from dropping.

8.Remove bumper fascia assembly.
9.Remove the following parts after removing rear bumper fascia.
- Bumper fascia lower
- Bumper finisher
- Reflex reflector (LH and RH).

10.Remove bumper energy absorber.
11.Remove rear panel lower.
12.Remove bumper stay (LH and RH).
13.Remove bumper side bracket fixing screws, and then remove bumper side bracket (LH and RH).

INSTALLATION

Note the following items, and then install in the reverse order of removal.

NOTE:

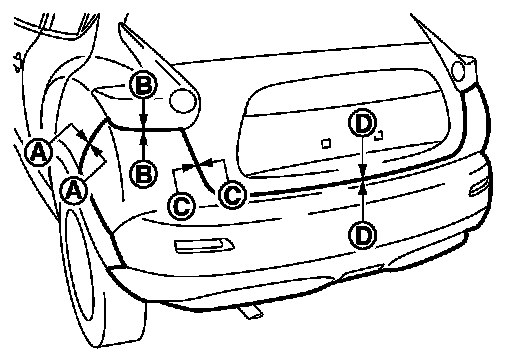

- The following table shows the specified values for checking normal installation status.





- Fitting adjustment cannot be performed.

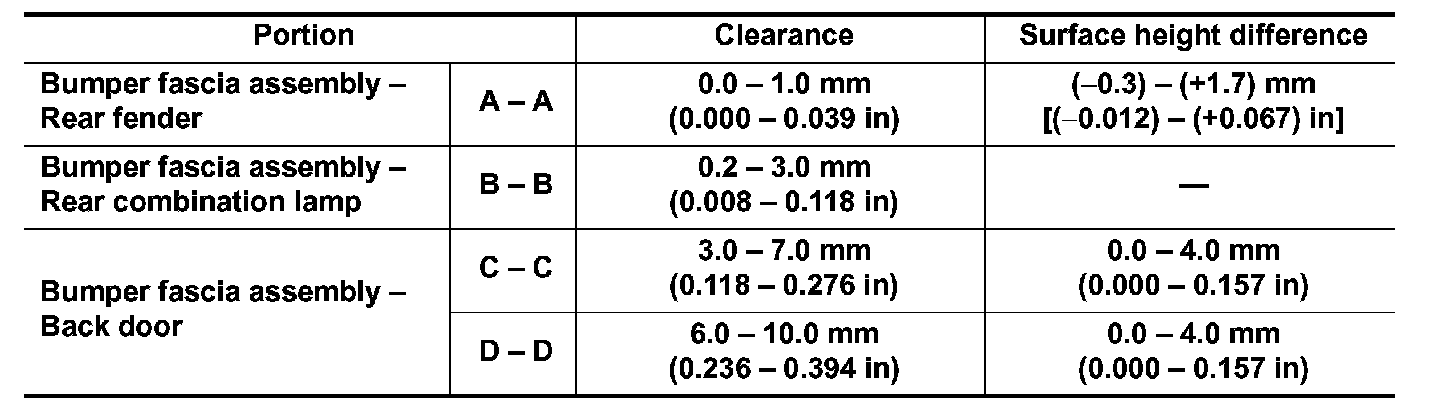

Portion Clearance Surface height difference
