With Intelligent Key System

DIAGNOSIS SYSTEM (BCM)

AIR PRESSURE MONITOR : CONSULT Function (BCM - AIR PRESSURE MONITOR)

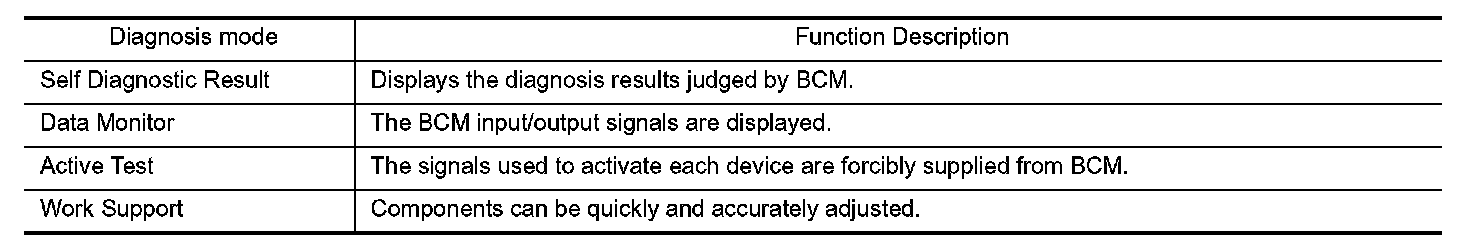

APPLICATION ITEM

CONSULT performs the following functions via CAN communication with BCM.






SELF DIAGNOSTIC RESULT

Testing and Inspection.

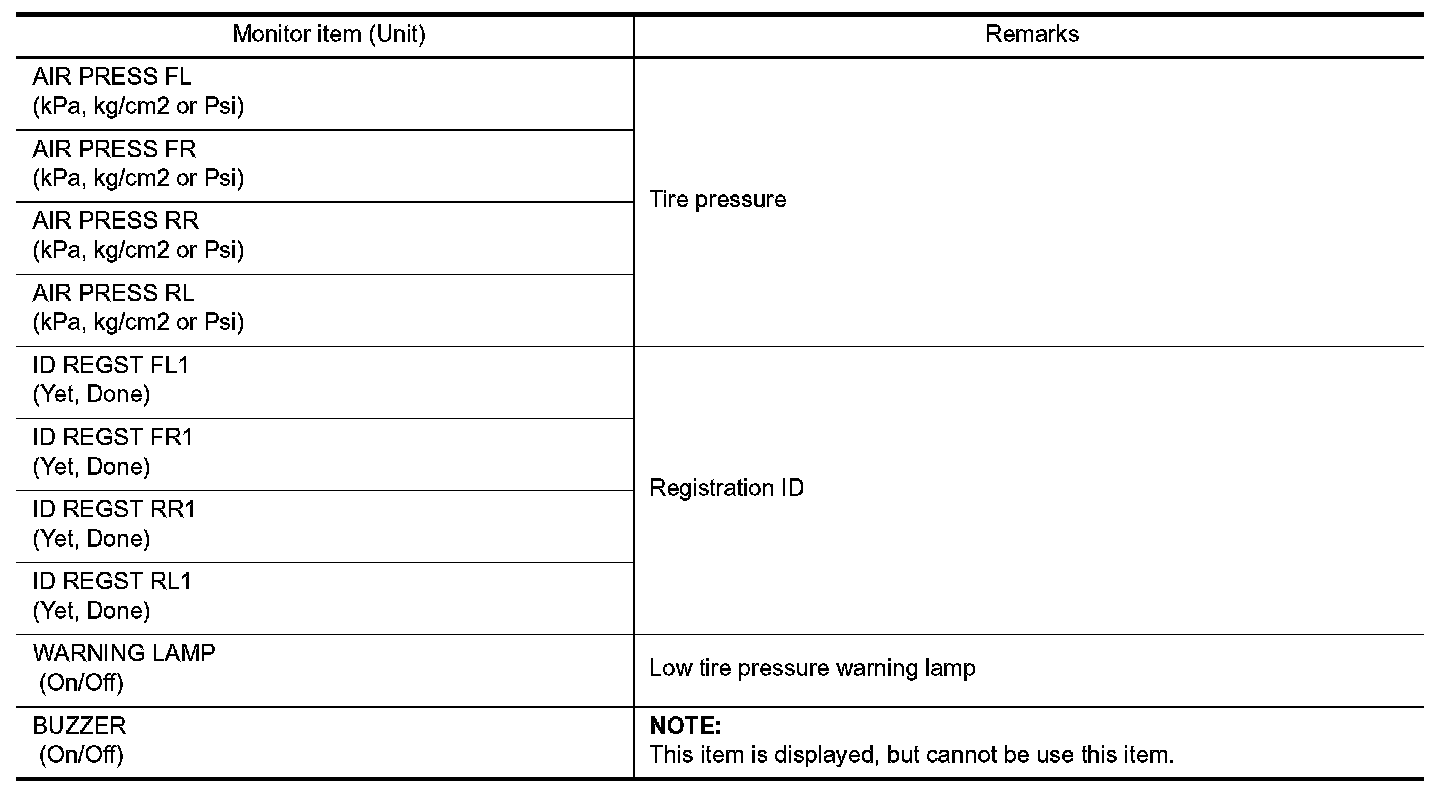

DATA MONITOR MODE

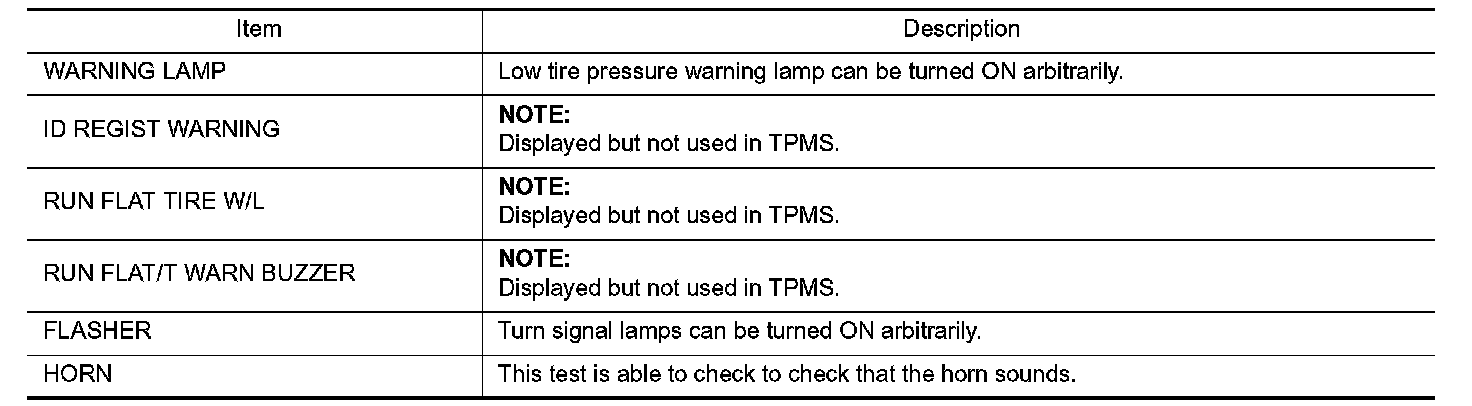

ACTIVE TEST MODE

NOTE:
After completing the work below, perform an active test.
1.Check ID registration state and perform self-diagnosis.
2.Erase the self-diagnosis result history.

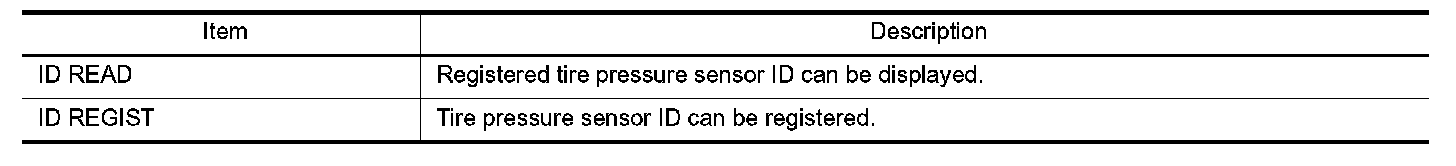

WORK SUPPORT
