Without Intelligent Key System




BCM (BODY CONTROL MODULE)

Reference Value

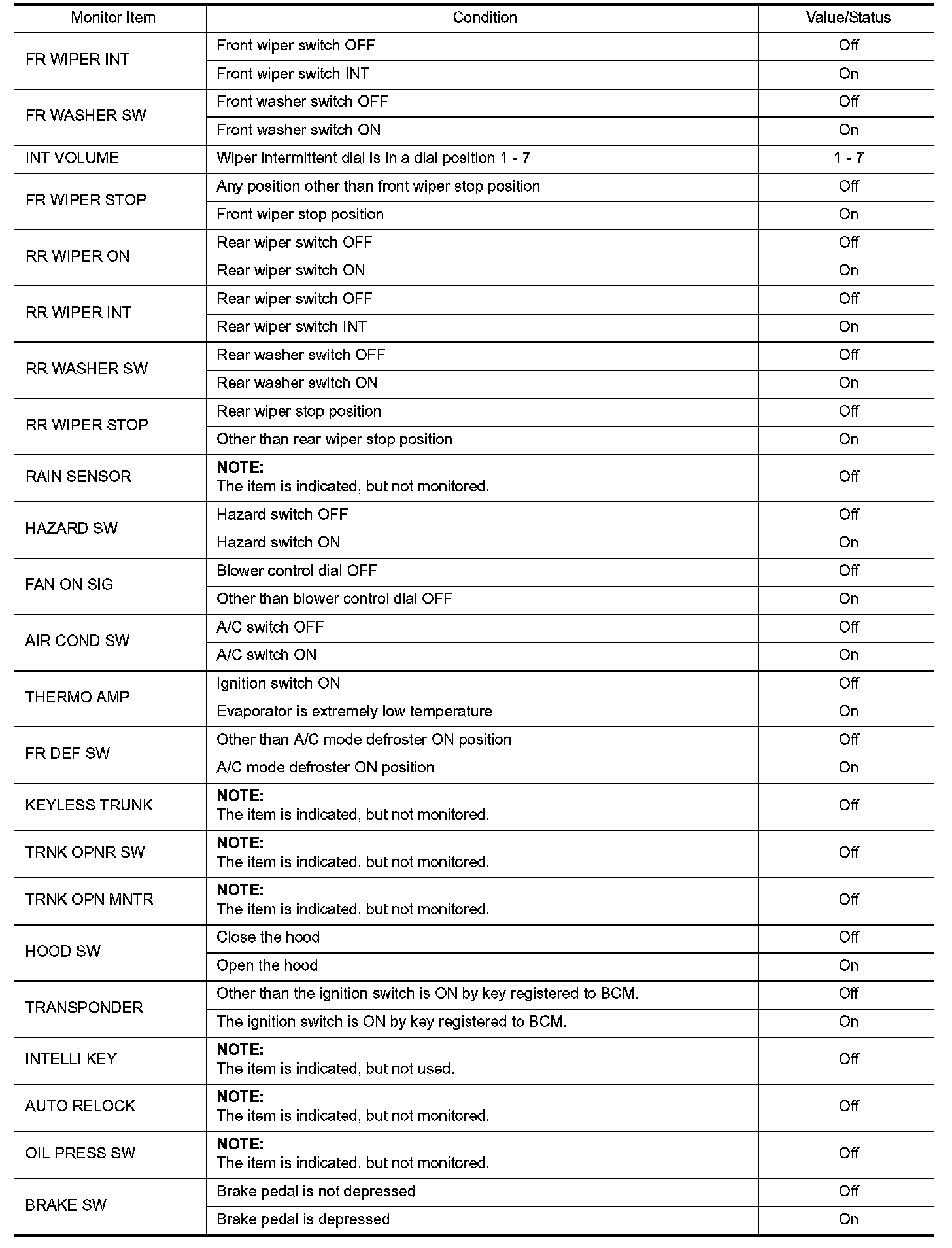

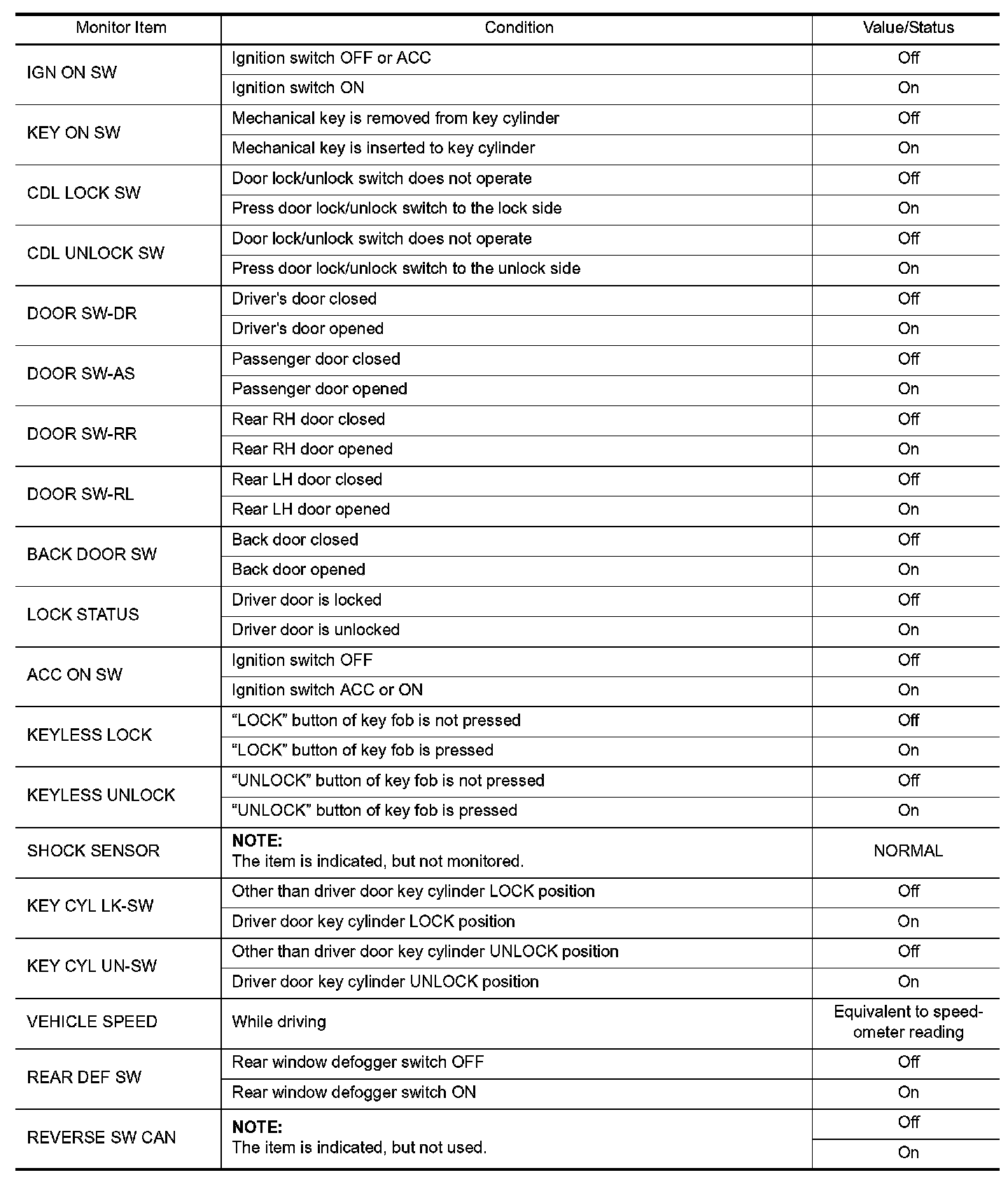

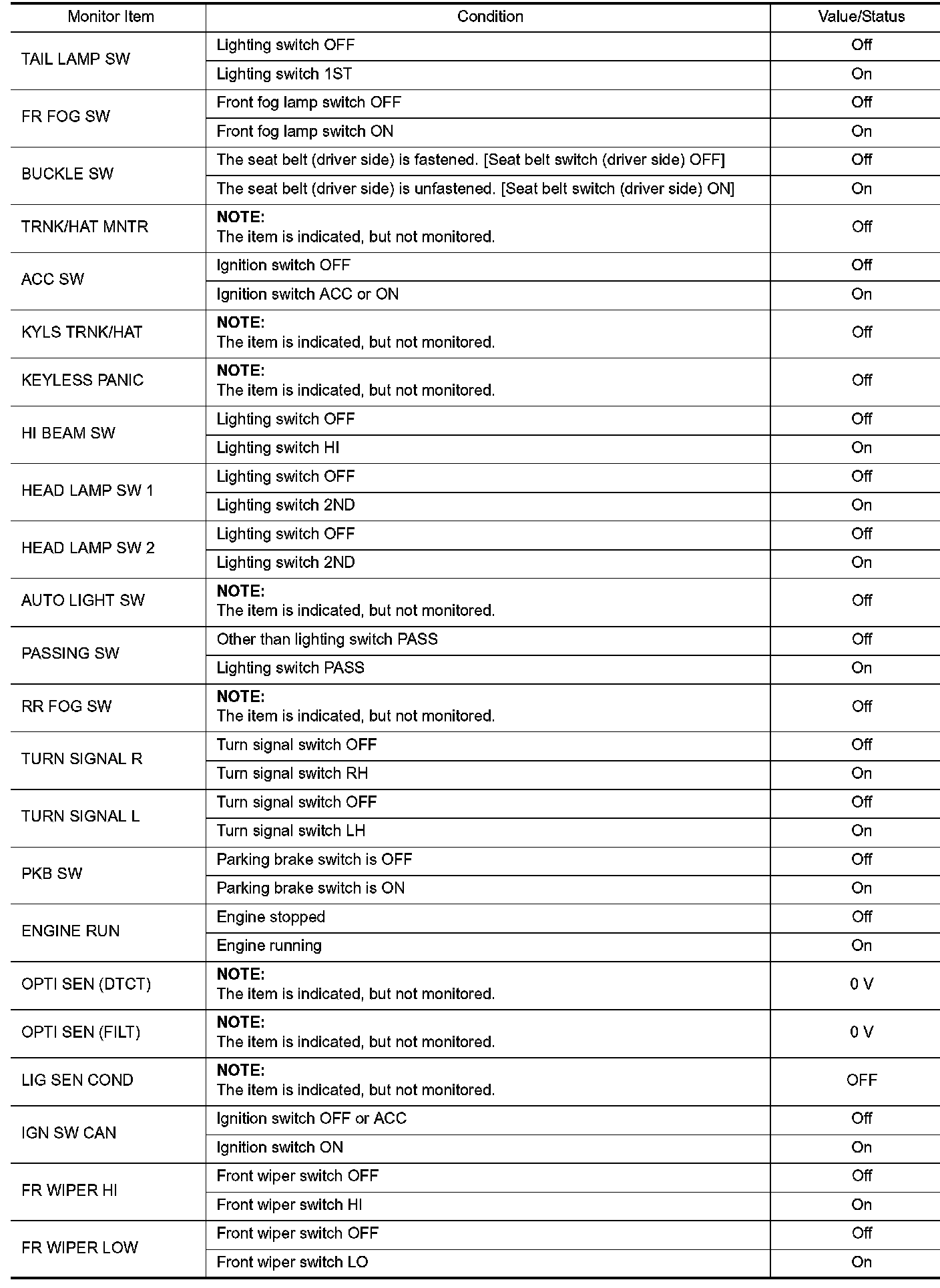

VALUES ON THE DIAGNOSIS TOOL

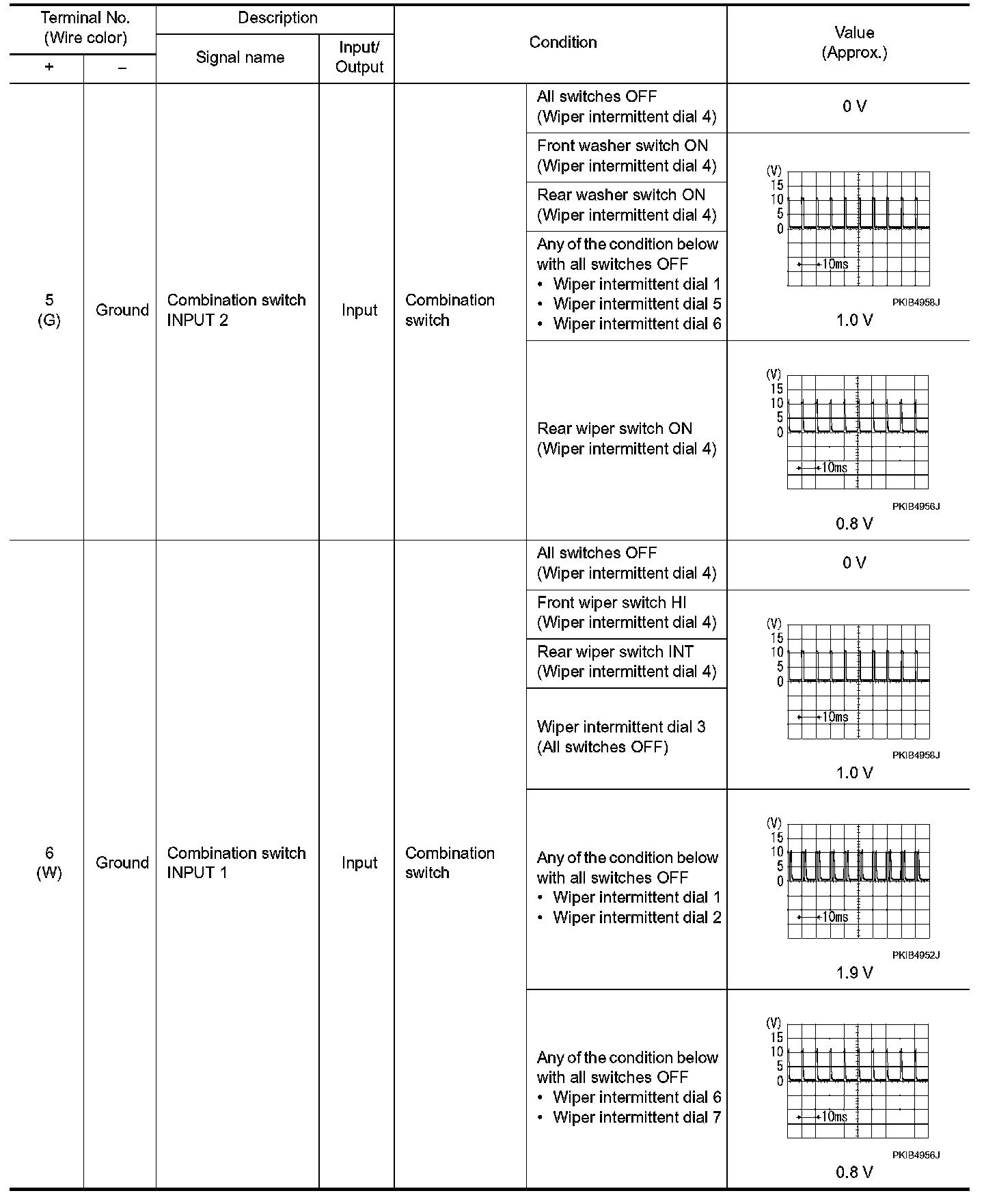

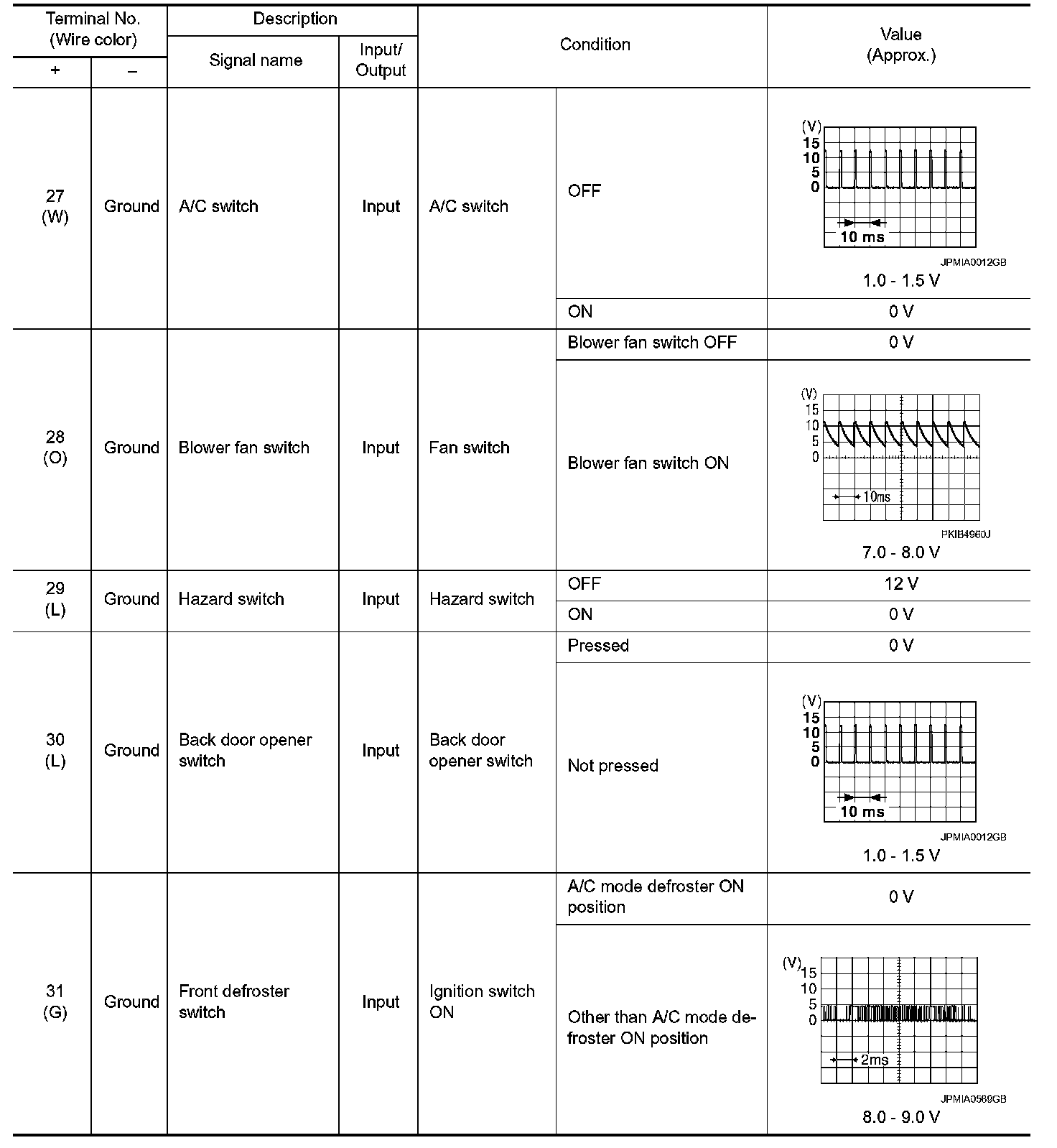

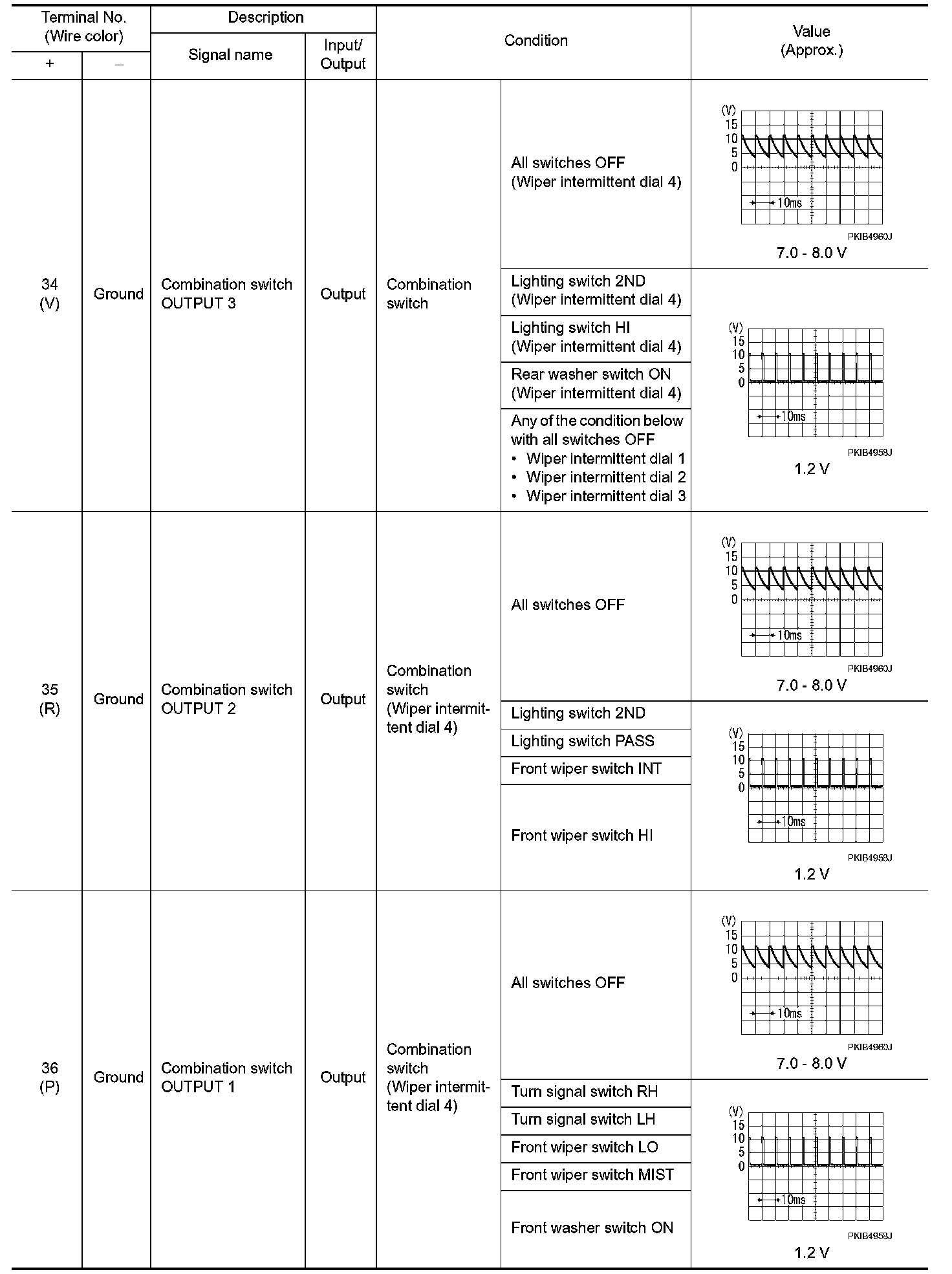

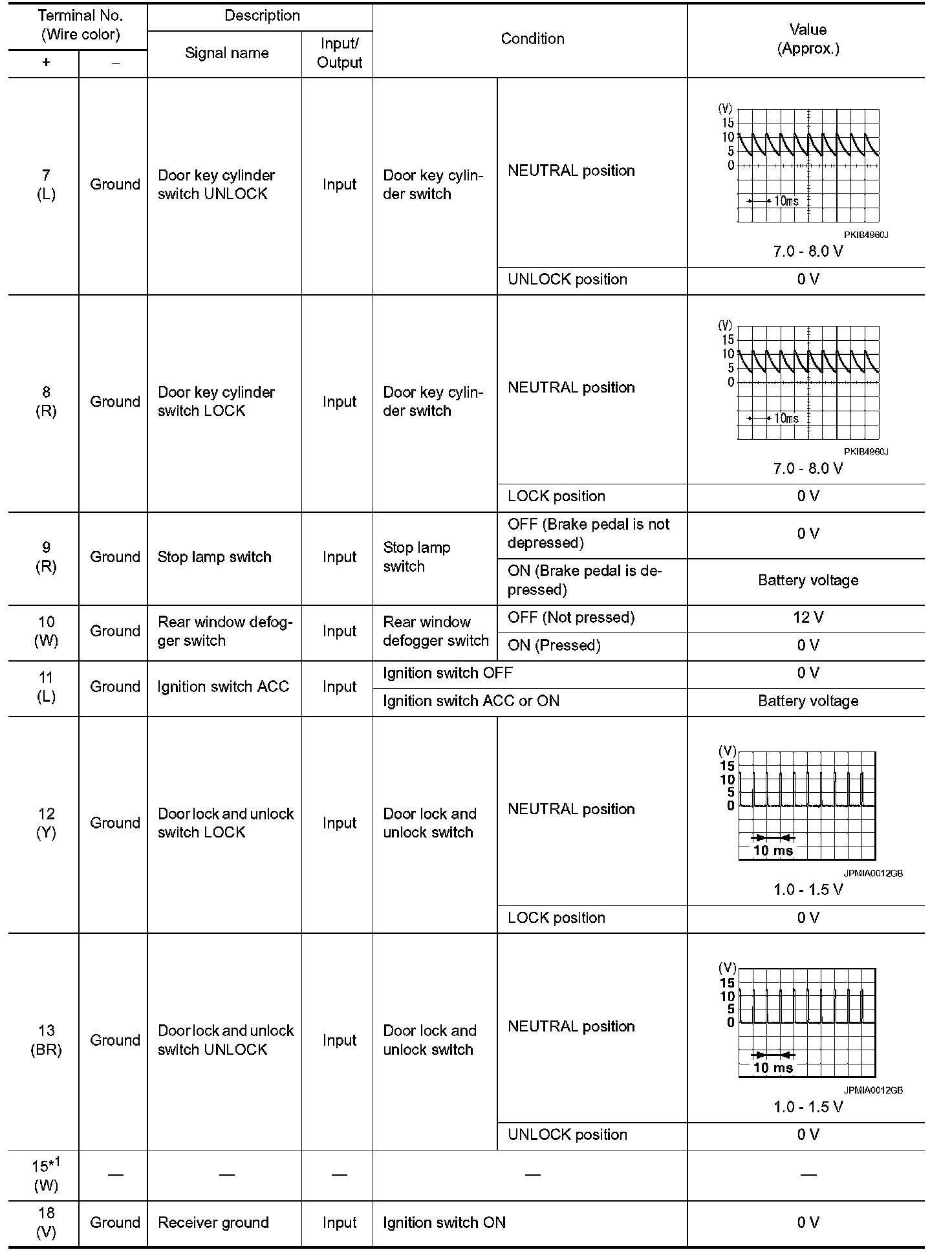

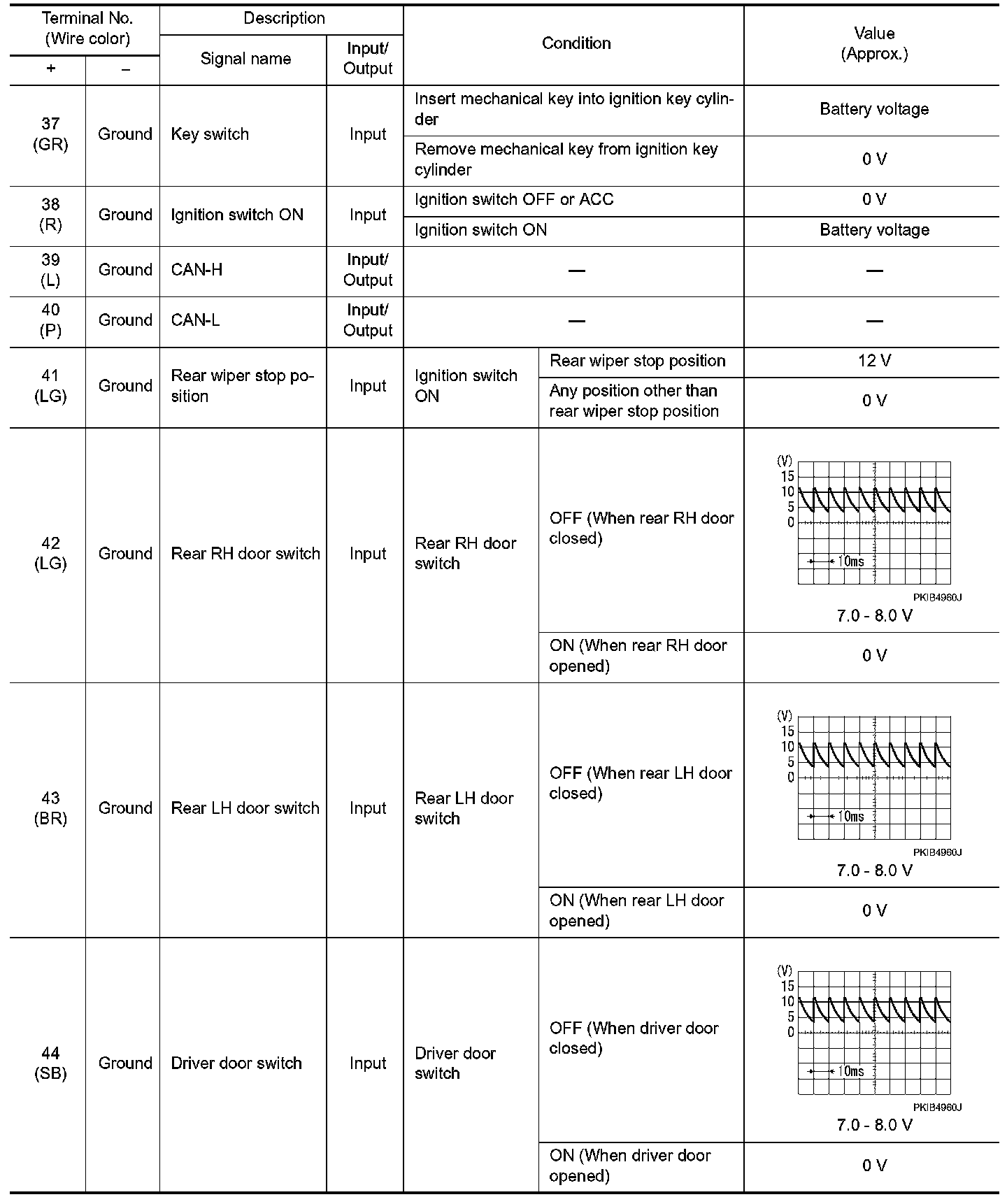

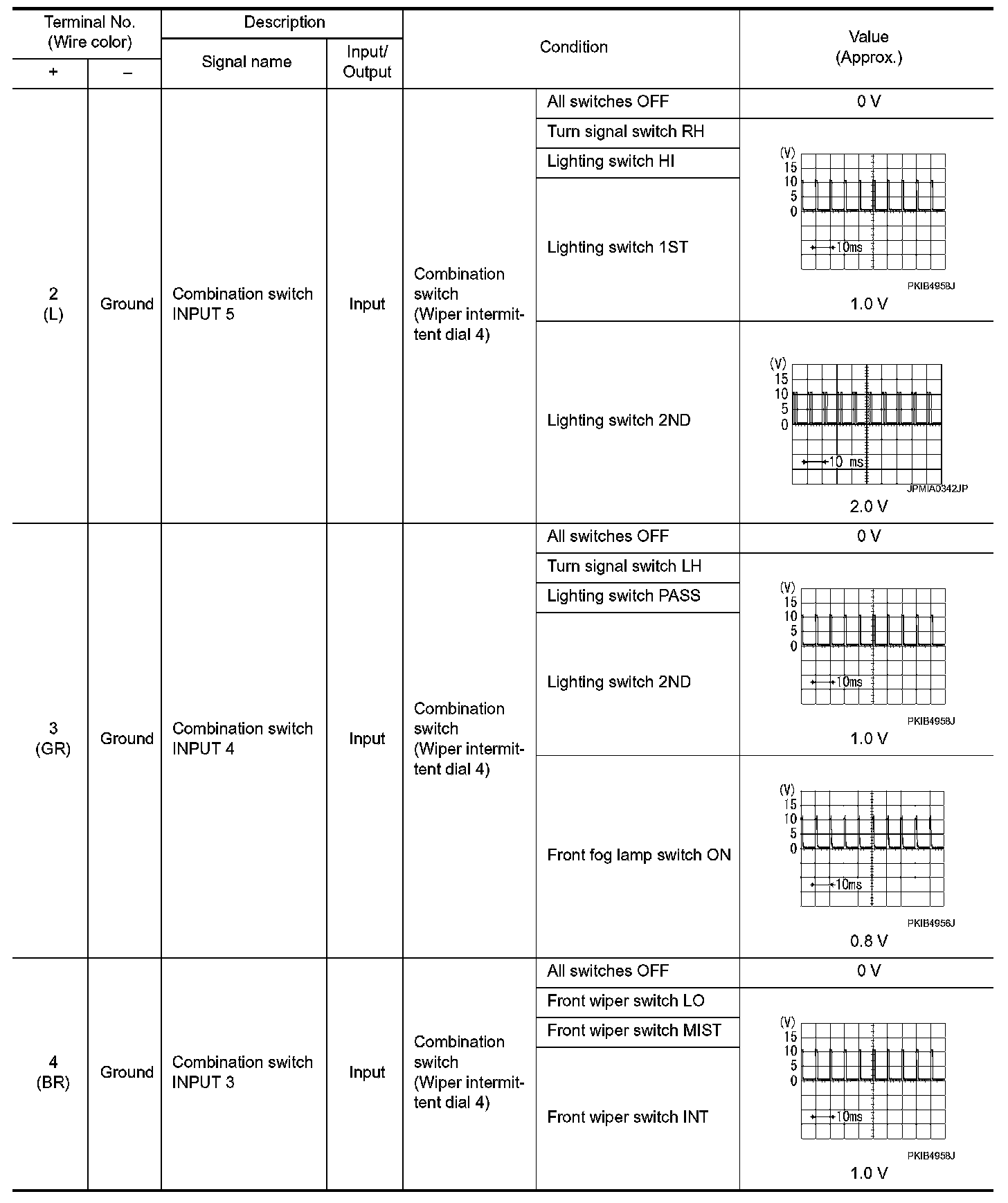

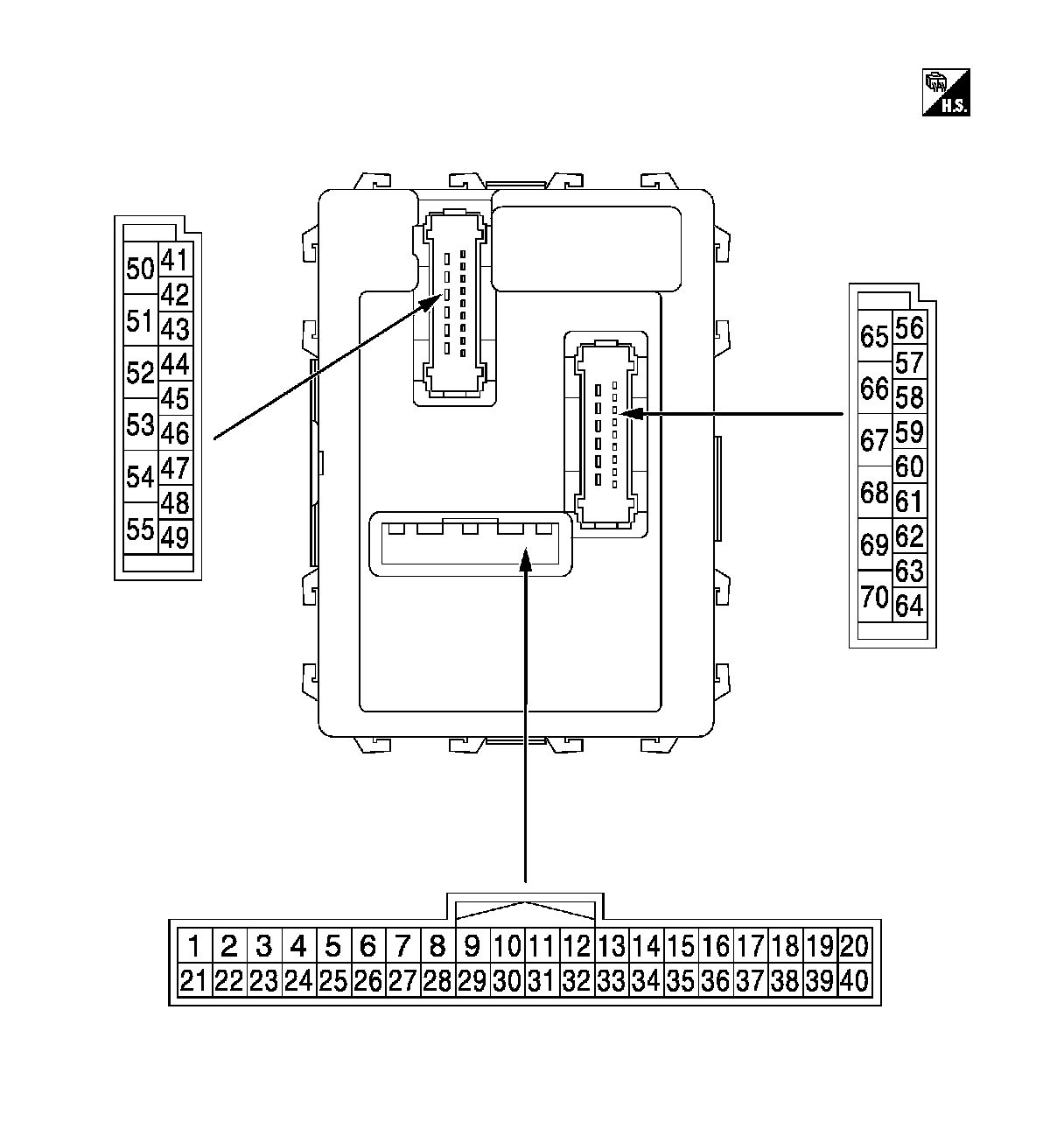

TERMINAL LAYOUT

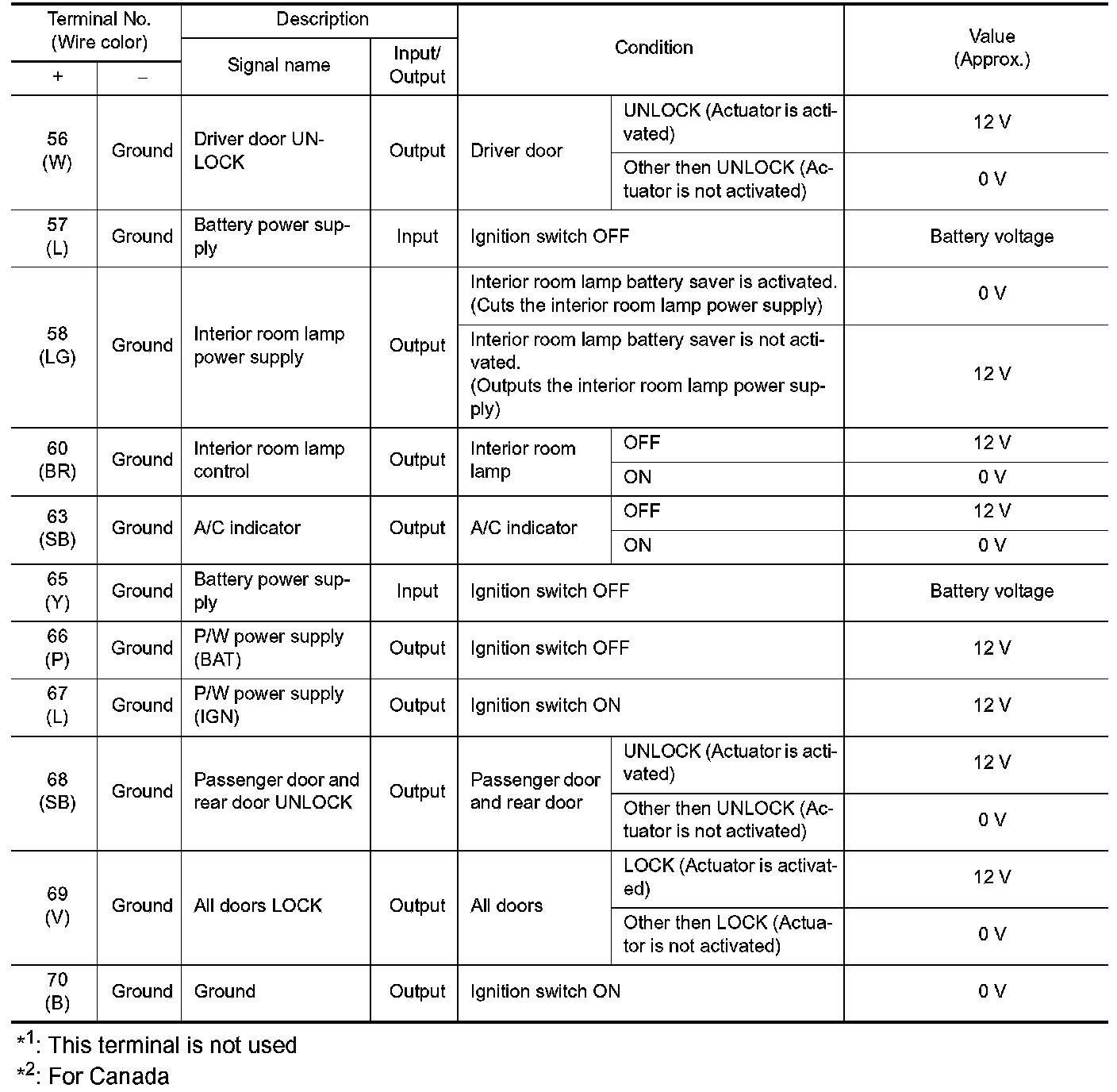

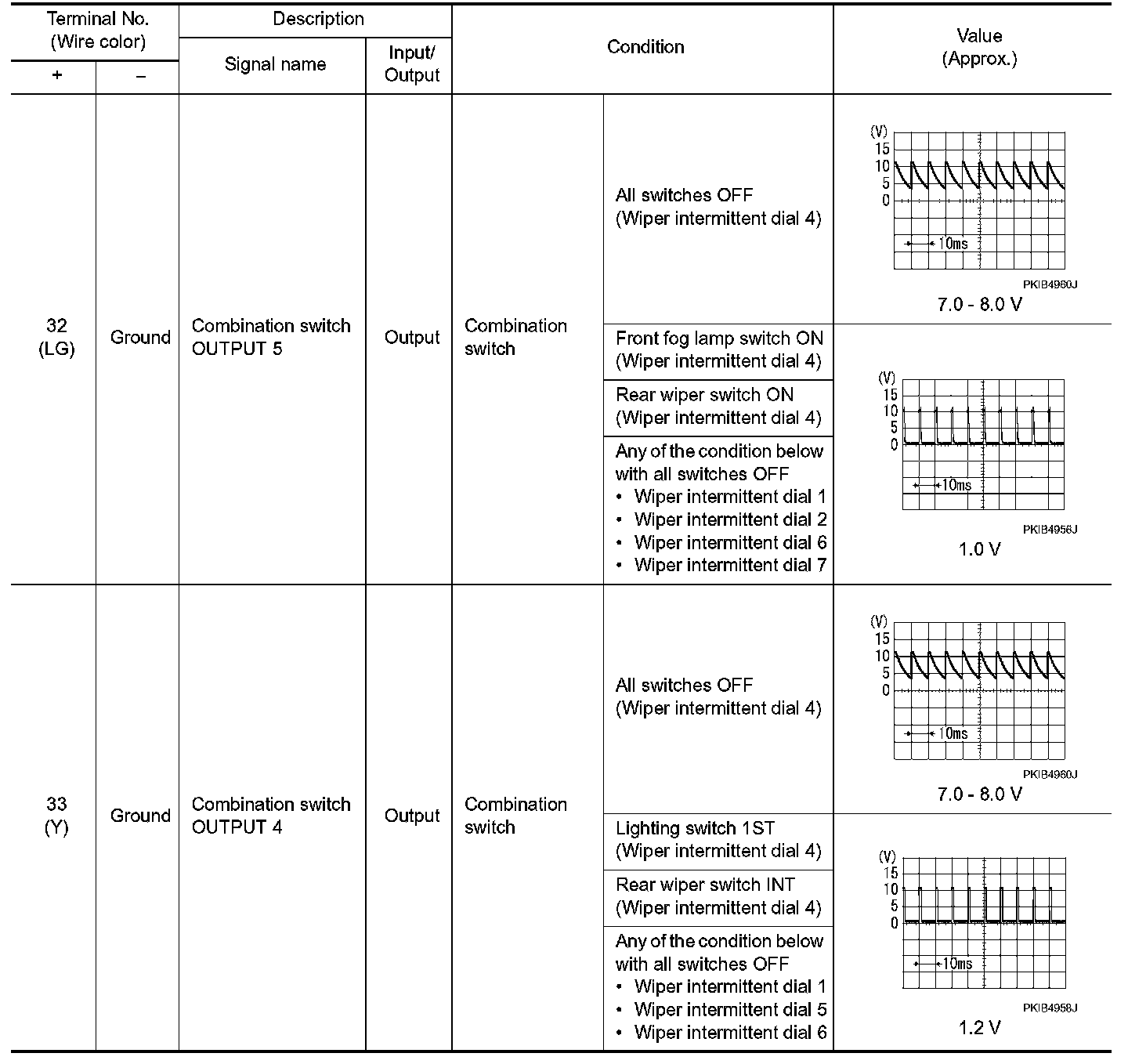

PHYSICAL VALUES
