NAVI Control Unit




NAVI CONTROL UNIT

Reference Value

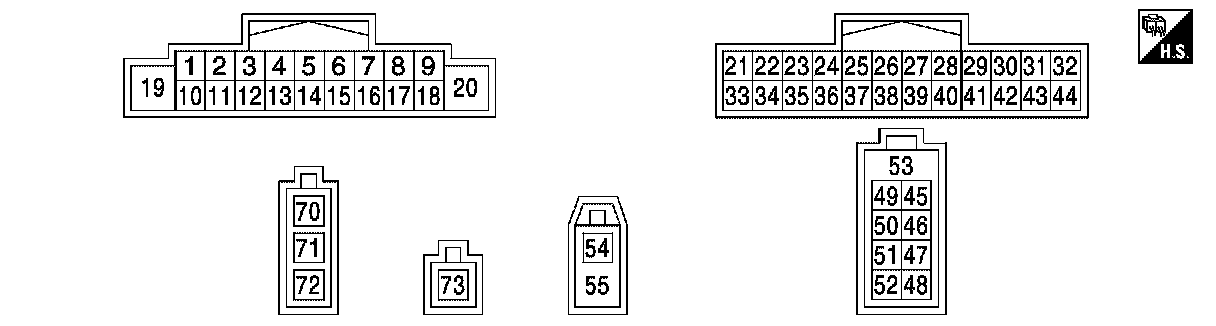

TERMINAL LAYOUT

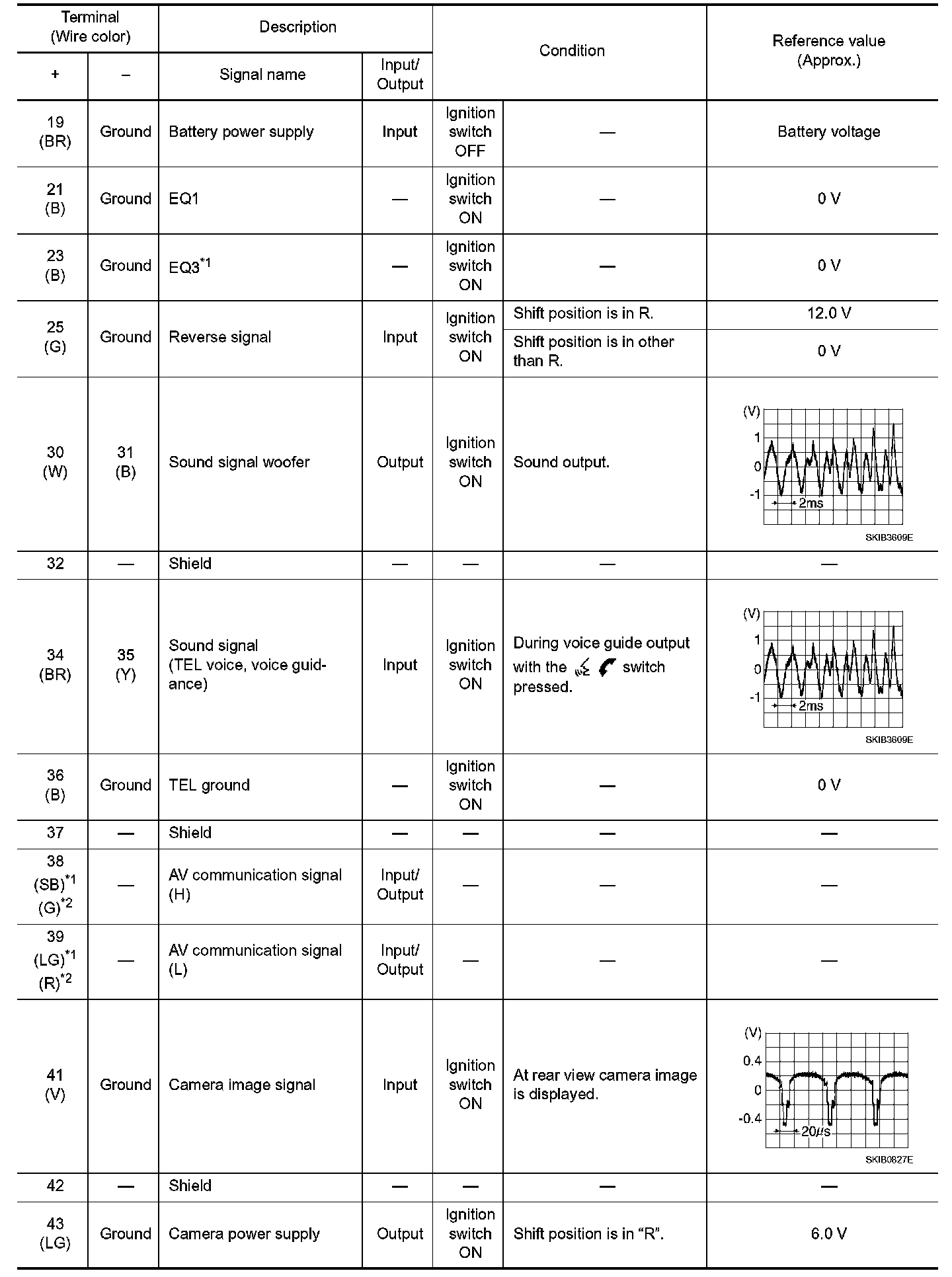

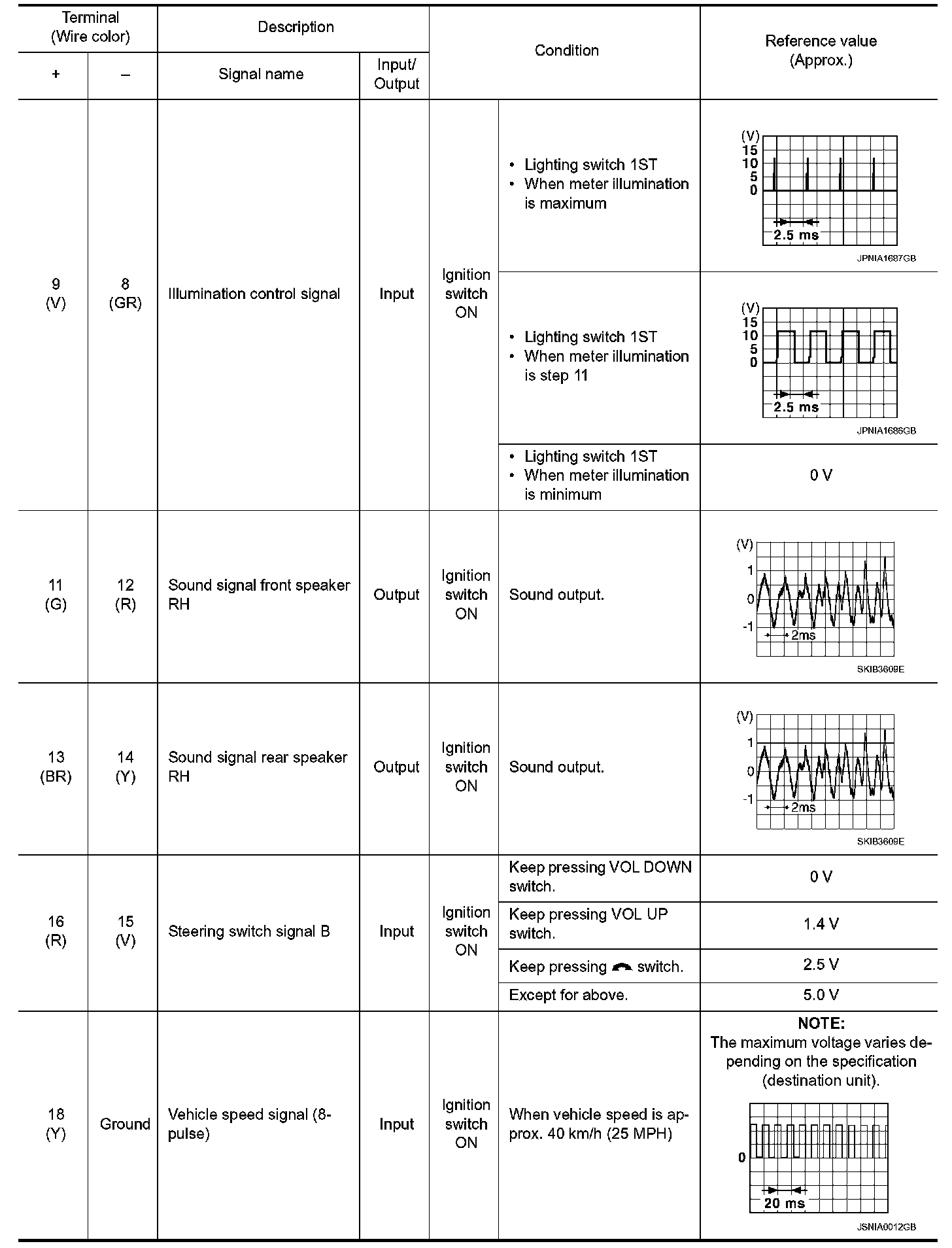

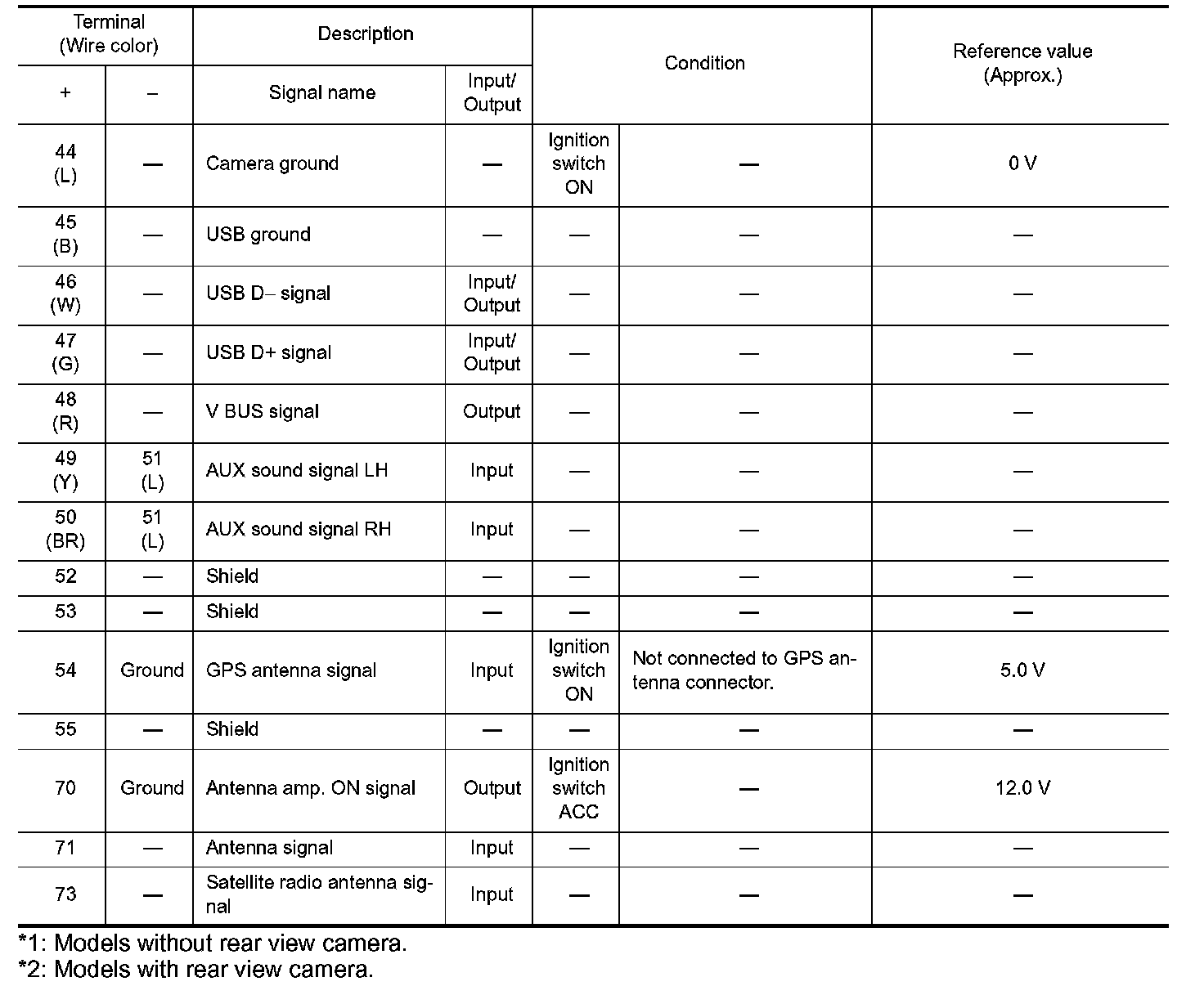

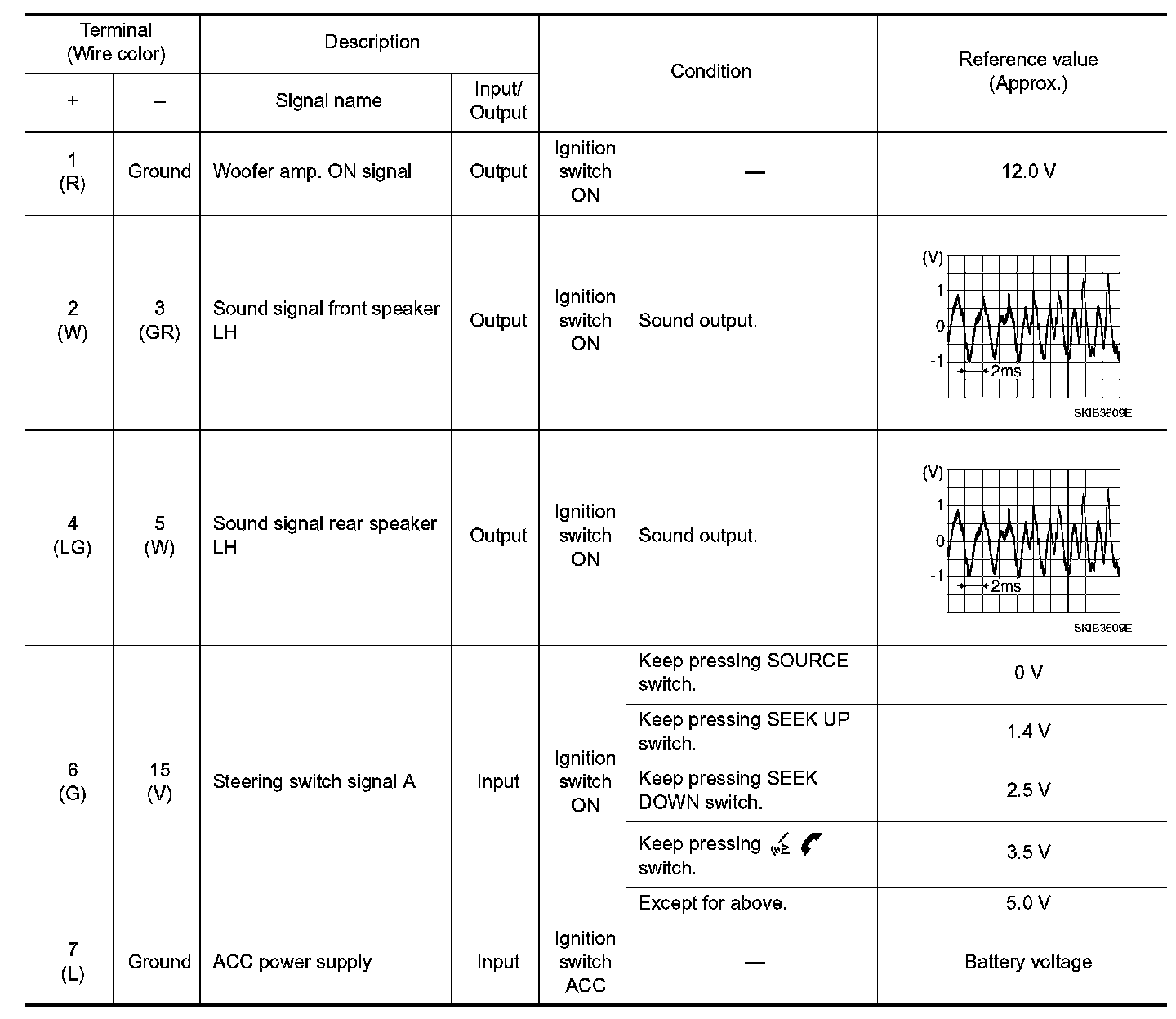

PHYSICAL VALUES





















*1: Models without rear view camera.
*2: Models with rear view camera.
