Multi Display Unit

COMPONENT PARTS

Multi Display Unit

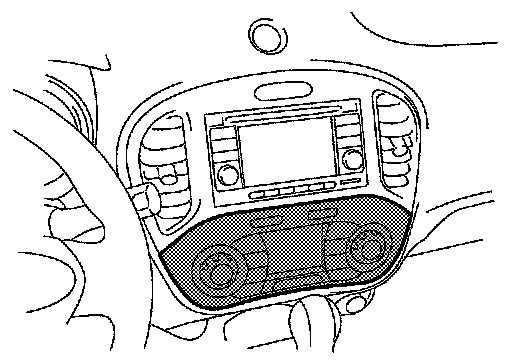

- A multi display unit integrating a color display and an operation panel is adopted.
- It is connected to other units via CAN communication and performs the drive mode control, air conditioner control, display of various information, and various settings.
- The display can show the drive mode (NORMAL, SPORT, ECO), drive information (travel time, mileage, average vehicle speed), ECO information (fuel consumption history), setting screen as well as engine power, providing information on the vehicle status according to the driver's operation.
- For the operation switch section, newly developed unique switches are adopted, which respectively have 2 types of symbols and functions.

UNIQUE SWITCH

*

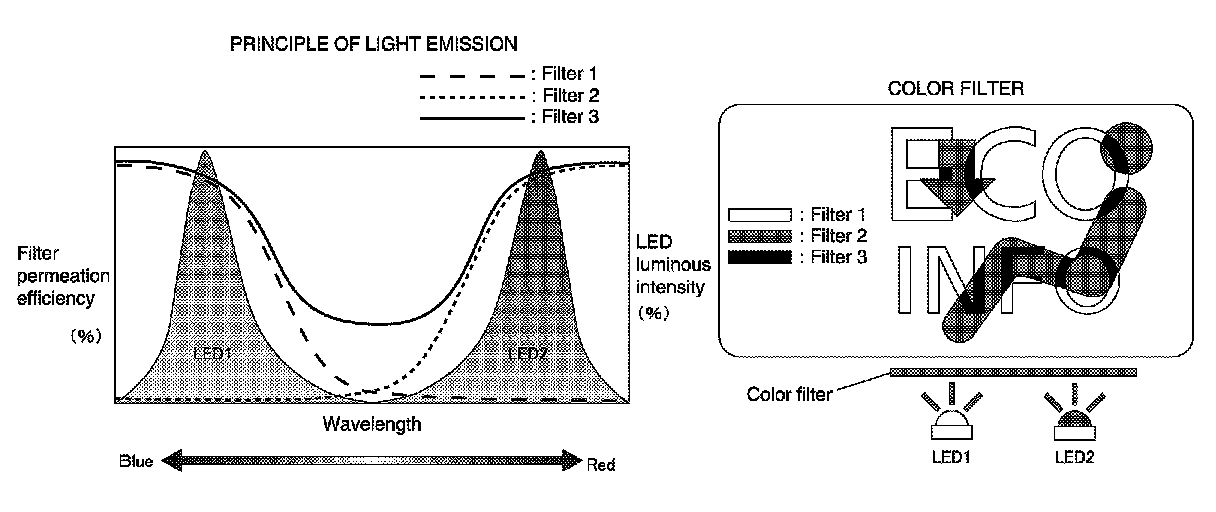

The switch integrates 2 types of LEDs, filters that pass or absorb specified wavelengths (filter 1, filter 2), and filters adapted to both display colors (filter 3), enabling 2 different symbols to be displayed at a same position by LED changeover.
*: Abbreviation of light emitting diode. It is a semiconductor device that lights up when electric current is applied.
Operation description of unique switch
- LED-1 lights up, the light from LED-1 passes filter 1 and filter 3, and "ECO INFO" is displayed.
- LED-2 lights up, the light from LED-2 passes filter 2 and filter 3, and "" is displayed.
