Audio




SYSTEM

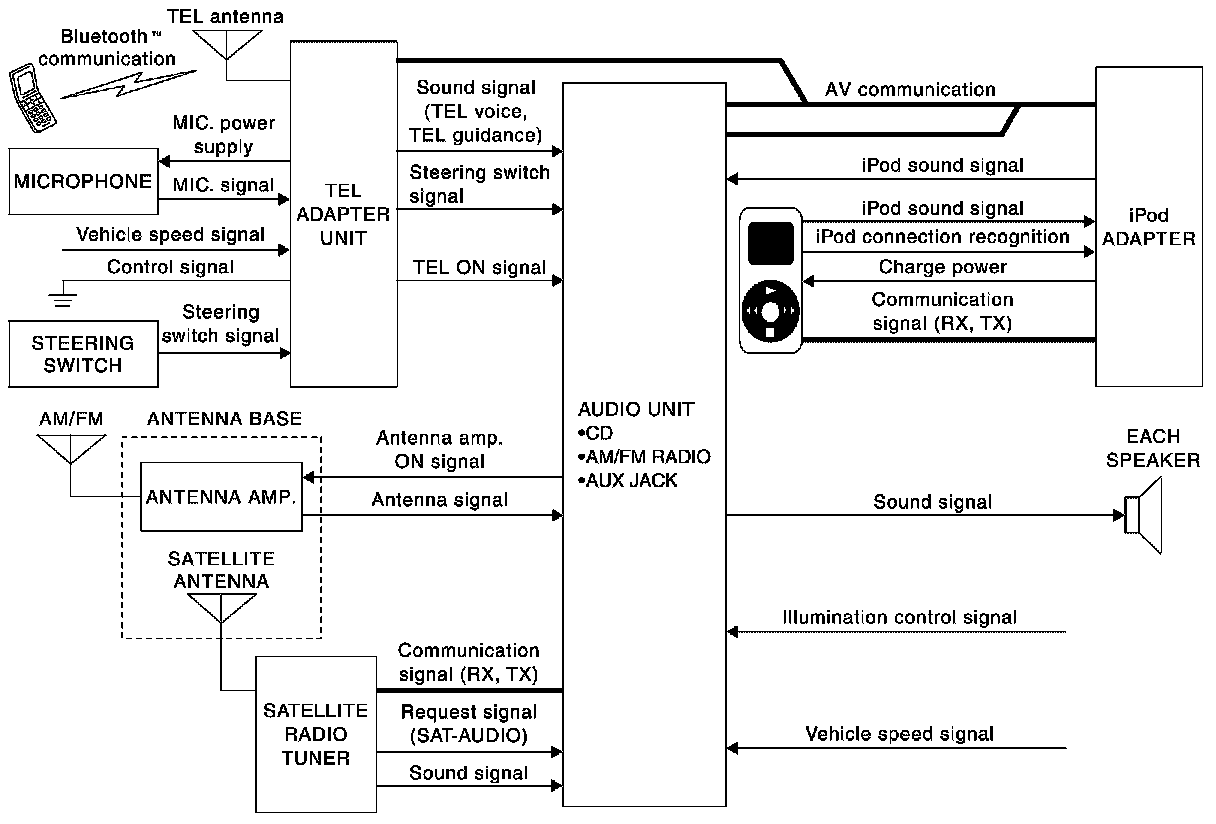

System Diagram

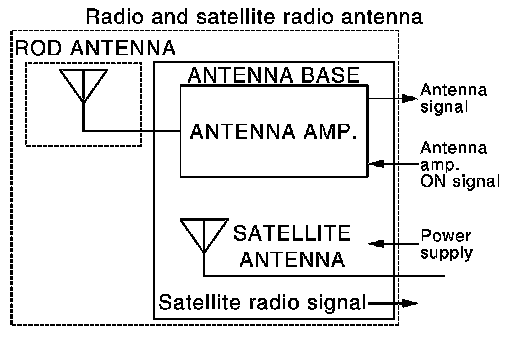

NOTE:





An antenna base integrated with radio antenna amp. and satellite radio antenna is adopted.
