Audio

SYSTEM

System Description


AUDIO SYSTEM

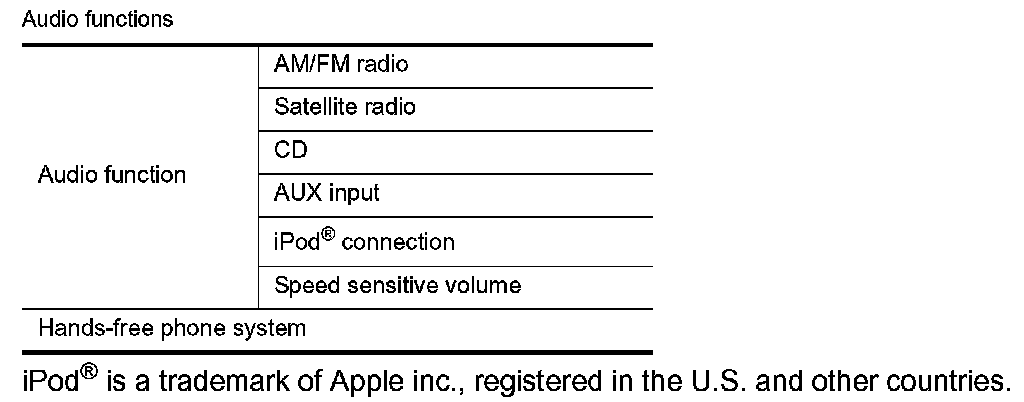

Audio functions iPod(R) is a trademark of Apple inc., registered in the U.S. and other countries.






AUDIO FUNCTION

AM/FM Radio
- AM/FM radio tuner is built into audio unit.
- Radio signals are received by radio antenna, next they are amplified by antenna amp., and finally the they are input to audio unit. (Antenna amp. is built into antenna base.)
- Audio unit outputs the sound signal to each speaker.
Satellite Radio
- Radio signals are supplied to satellite radio tuner from the satellite radio antenna. (satellite radio antenna is built into antenna base.)
- The satellite radio tuner sends sound signal to the audio unit.
- Audio unit outputs the sound signal to each speaker.
CD
- CD function is built into audio unit.
- Audio unit outputs sound signal to each speaker when CD is inserted to audio unit.
Auxiliary input
- When the external device is connected to the auxiliary (AUX) input jack of the audio unit, the external device inputs a sound signal to the audio unit.
- When AUX mode is selected, audio unit outputs sound signal to each speaker.
iPod(R) Connection
- Connect iPod(R) and iPod adapter with wire harness and iPod adapter input iPod sound signal from iPod(R).
- When iPod mode is selected, iPod adapter outputs iPod sound signal to audio unit.
- Audio unit outputs the sound signal to each speaker.
Speed Sensitive Volume
- Volume level of this system gone up and down automatically in proportion to the vehicle speed.
- The control level can be selected by the customer.

HANDS-FREE PHONE FUNCTION

- The connection between cellular phone and TEL adapter unit is performed with Bluetooth(TM) communication.
- The voice guidance signal is input from the TEL adapter unit to the audio unit and output to the front speaker when operating the telephone.
- TEL adapter unit has the on board self-diagnosis function. Without Navigation.
When Receiving A Call
TEL voice signal received with the cellular phone is input from TEL antenna via TEL adapter unit to audio unit with Bluetooth(TM) communication and output to the front speaker. The operation is performed with the steering switch or voice recognition function.
When A Call Is Originated
Speech sound (TEL voice signal) is input from the microphone to the TEL adapter unit. It is input from the TEL
antenna via Bluetooth(TM) communication to the cellular phone. It is transmitted to the phone on the other side.
The operation is performed with the steering switch or voice recognition function.
