CONSULT Function (BCM - Theft)
CONSULT Function (BCM - Theft)
DIAGNOSIS SYSTEM (BCM)
THEFT ALM : CONSULT Function (BCM - THEFT)

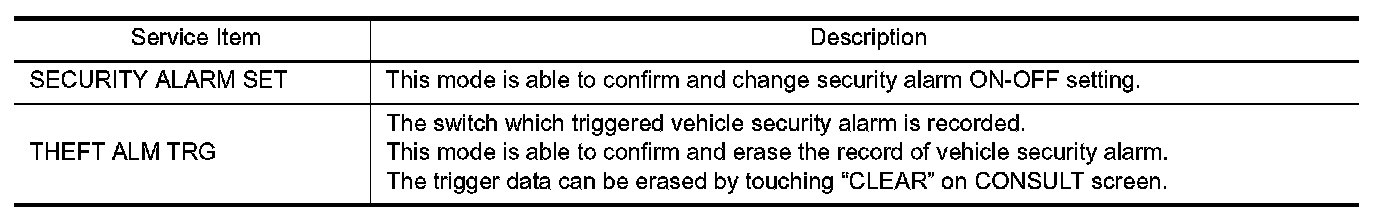

WORK SUPPORT

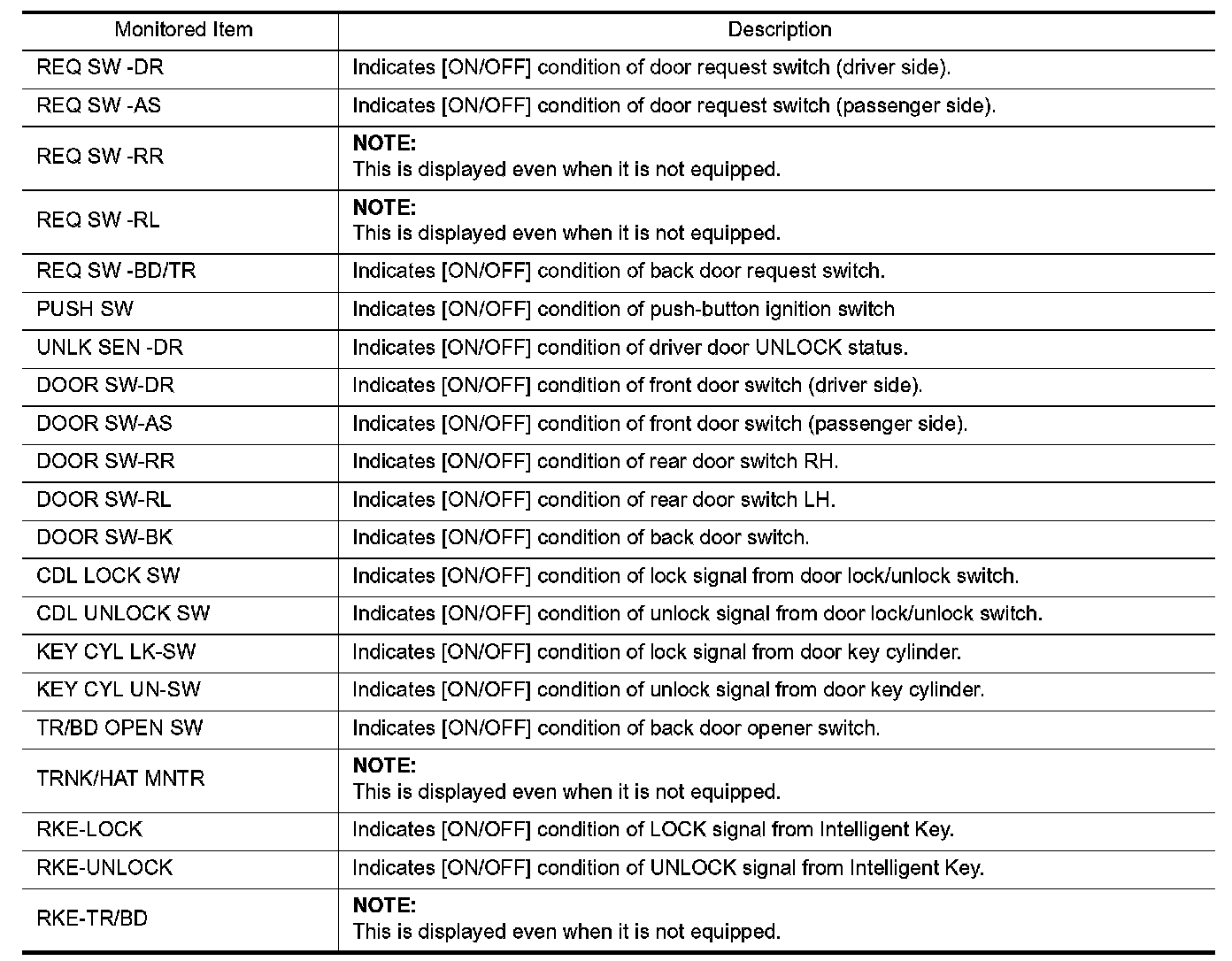

DATA MONITOR

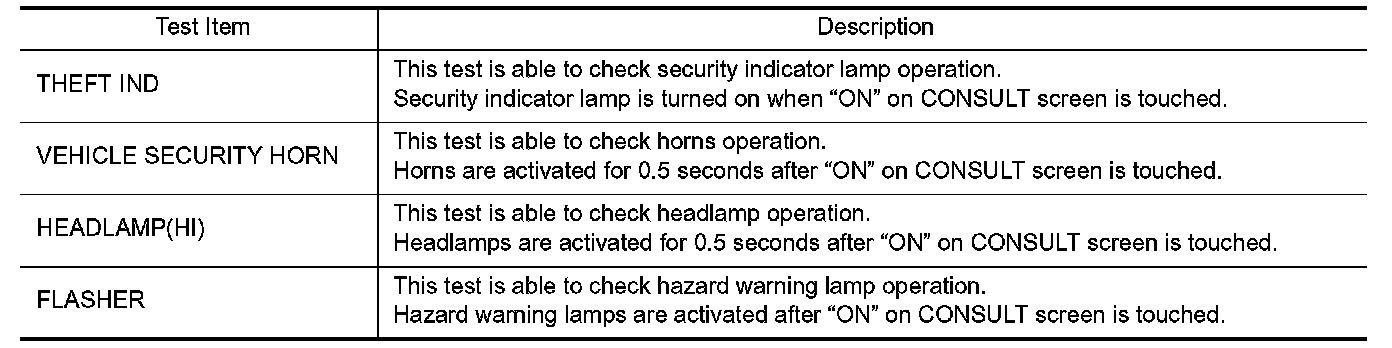

ACTIVE TEST
