CONSULT Function (BCM - Intelligent Key)




DIAGNOSIS SYSTEM (BCM)

INTELLIGENT KEY : CONSULT Function (BCM - INTELLIGENT KEY)

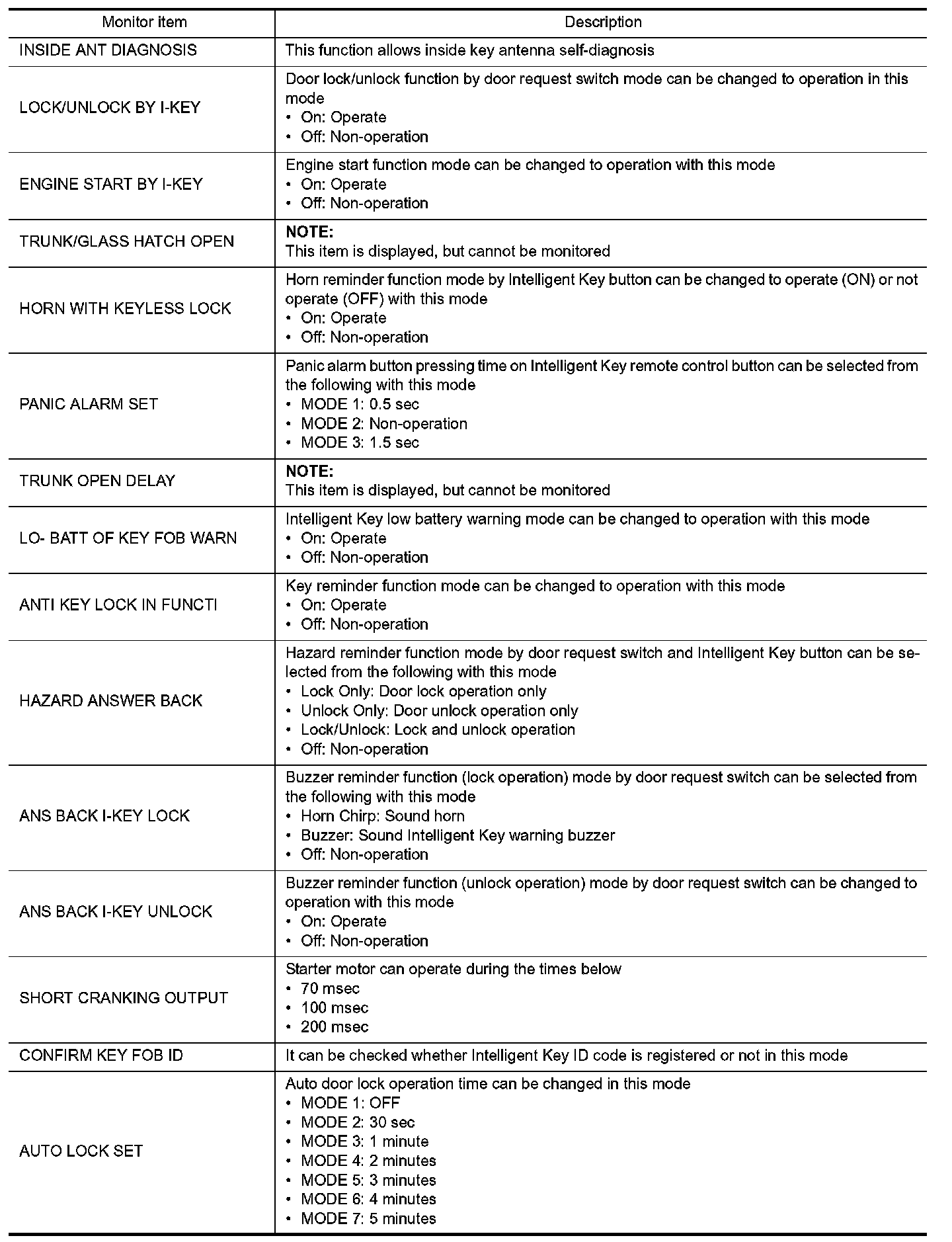

WORK SUPPORT







SELF-DIAG RESULT

Testing and Inspection.

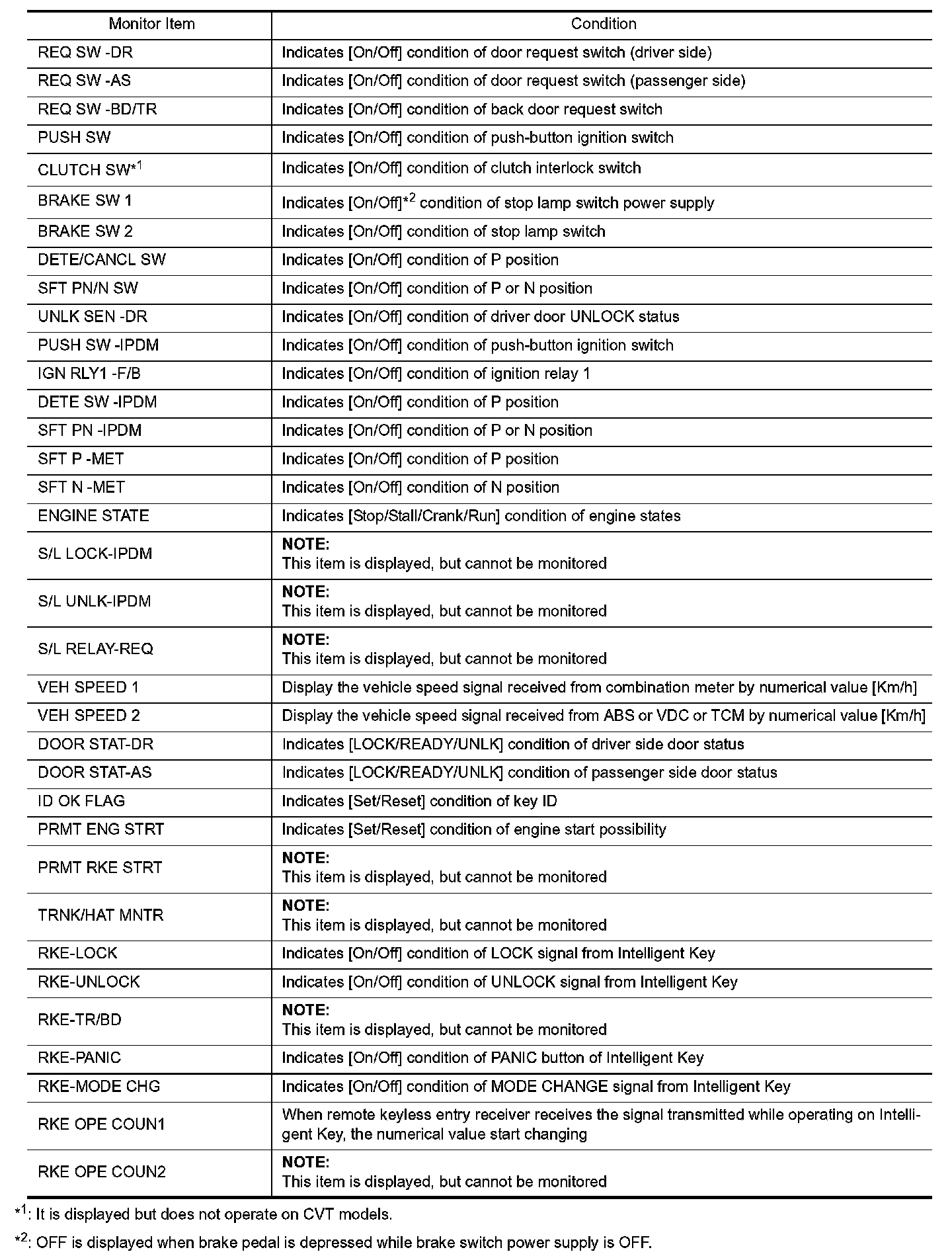

DATA MONITOR

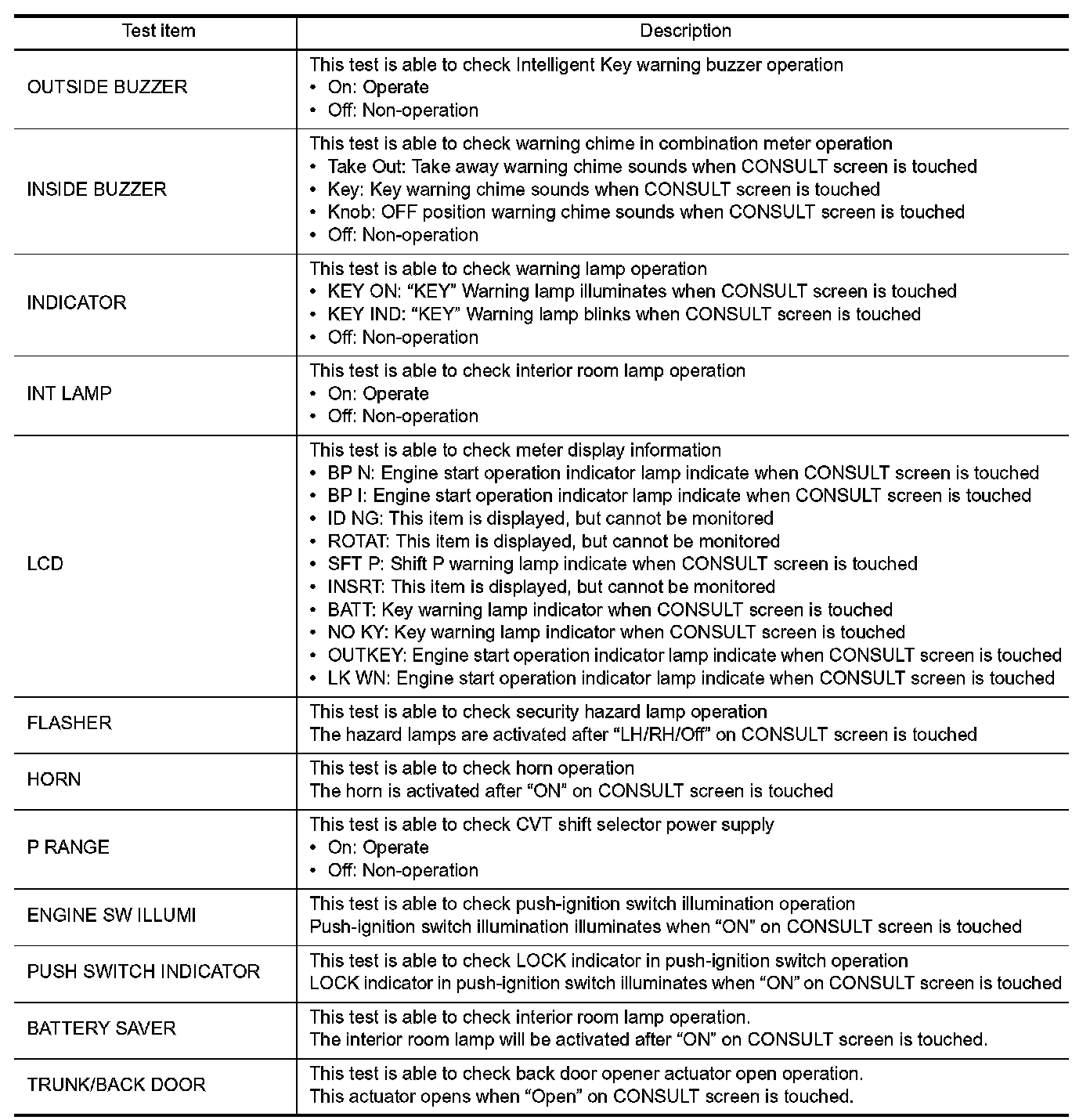

ACTIVE TEST
