Keyfob Battery

KEYFOB BATTERY

Component Function Check


1. CHECK FUNCTION

Check door lock and unlock operation with keyfob button.
Is the inspection result normal?
YES- Keyfob is OK.
NO- .


Diagnosis Procedure


1. CHECK KEYFOB BATTERY

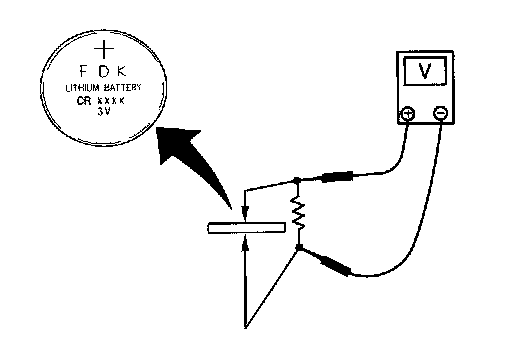

Check by connecting a resistance (approximately 300 Ohms) so that the current value becomes about 10 mA.

Standard: Approx. 2.5 - 3.0 V

Is the measurement value within the specification?
YES- Replace keyfob.
NO- Replace keyfob battery.
