Warning Function

SYSTEM (INTELLIGENT KEY SYSTEM)

WARNING FUNCTION : System Description


OPERATION DESCRIPTION

The warning function are as per the following items and are given to the user as warning information and warnings using combinations of Intelligent Key warning buzzer, combination meter buzzer, KEY warning lamp, shift P warning lamp and engine start operation indicator lamp.
- Intelligent Key system malfunction
- OFF position warning
- P position warning
- ACC warning
- Take away warning
- Door lock operation warning
- Engine start information
- Intelligent Key low battery warning
- Key ID warning

OPERATION CONDITION

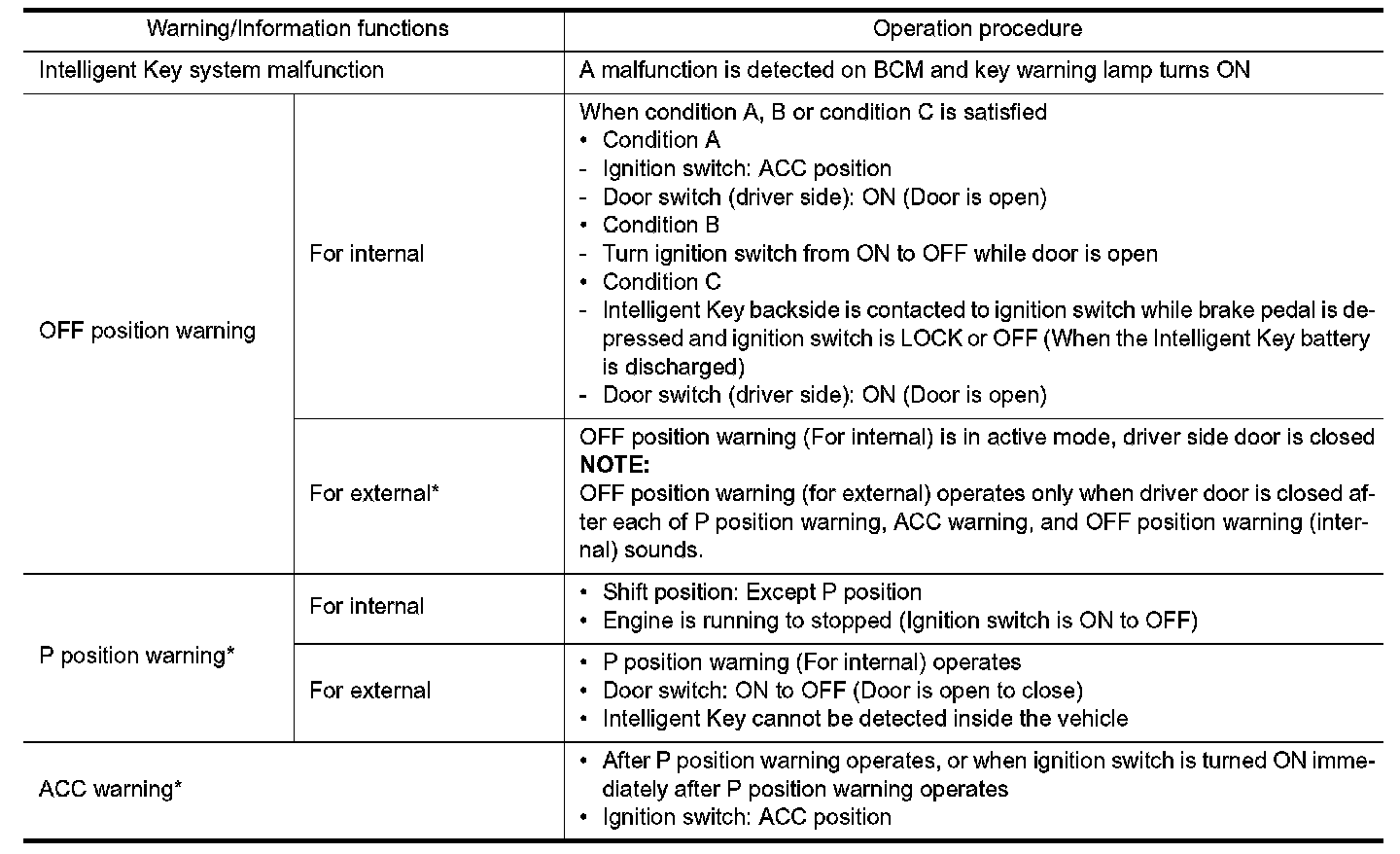

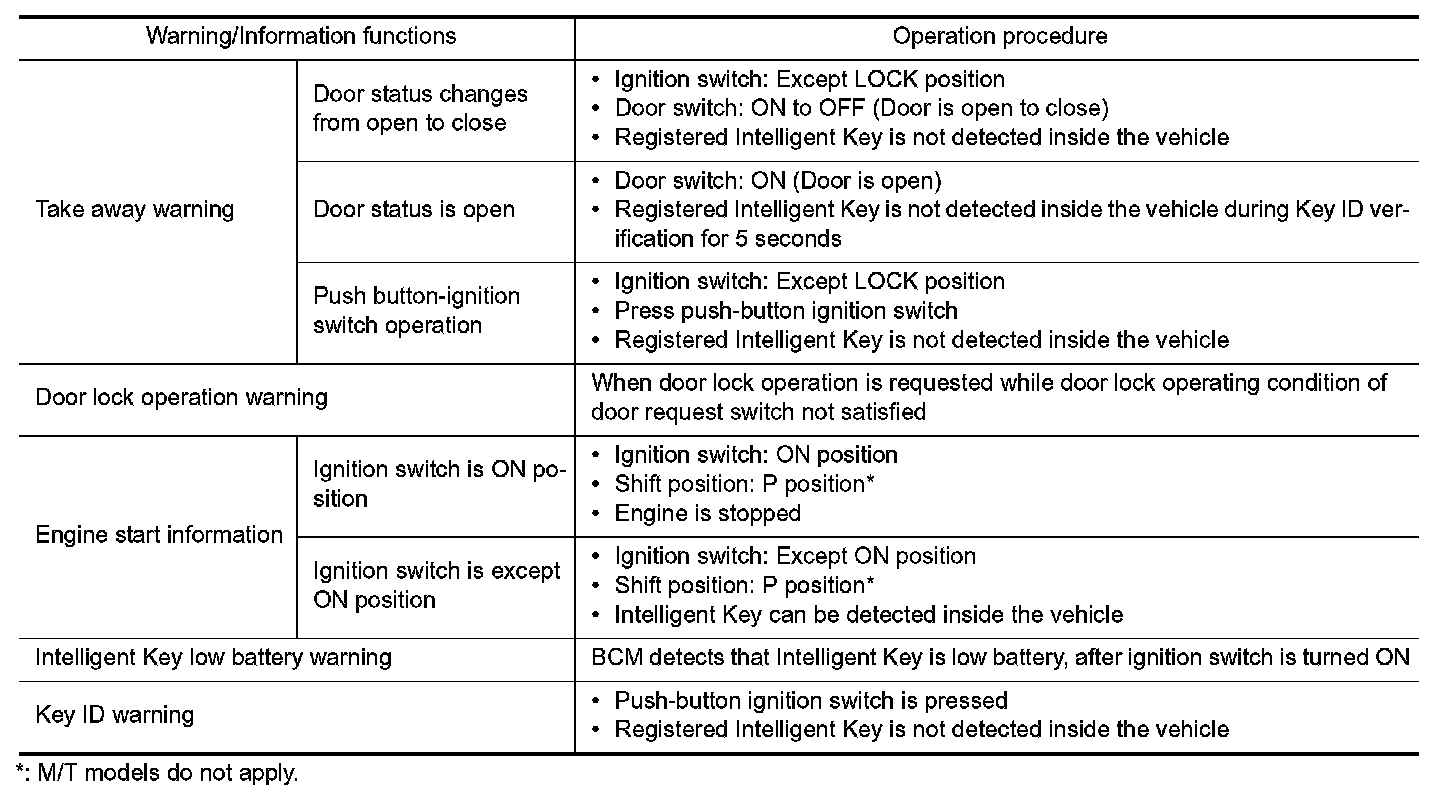

Operation condition of warning and information is as per the following table.











WARNING METHOD

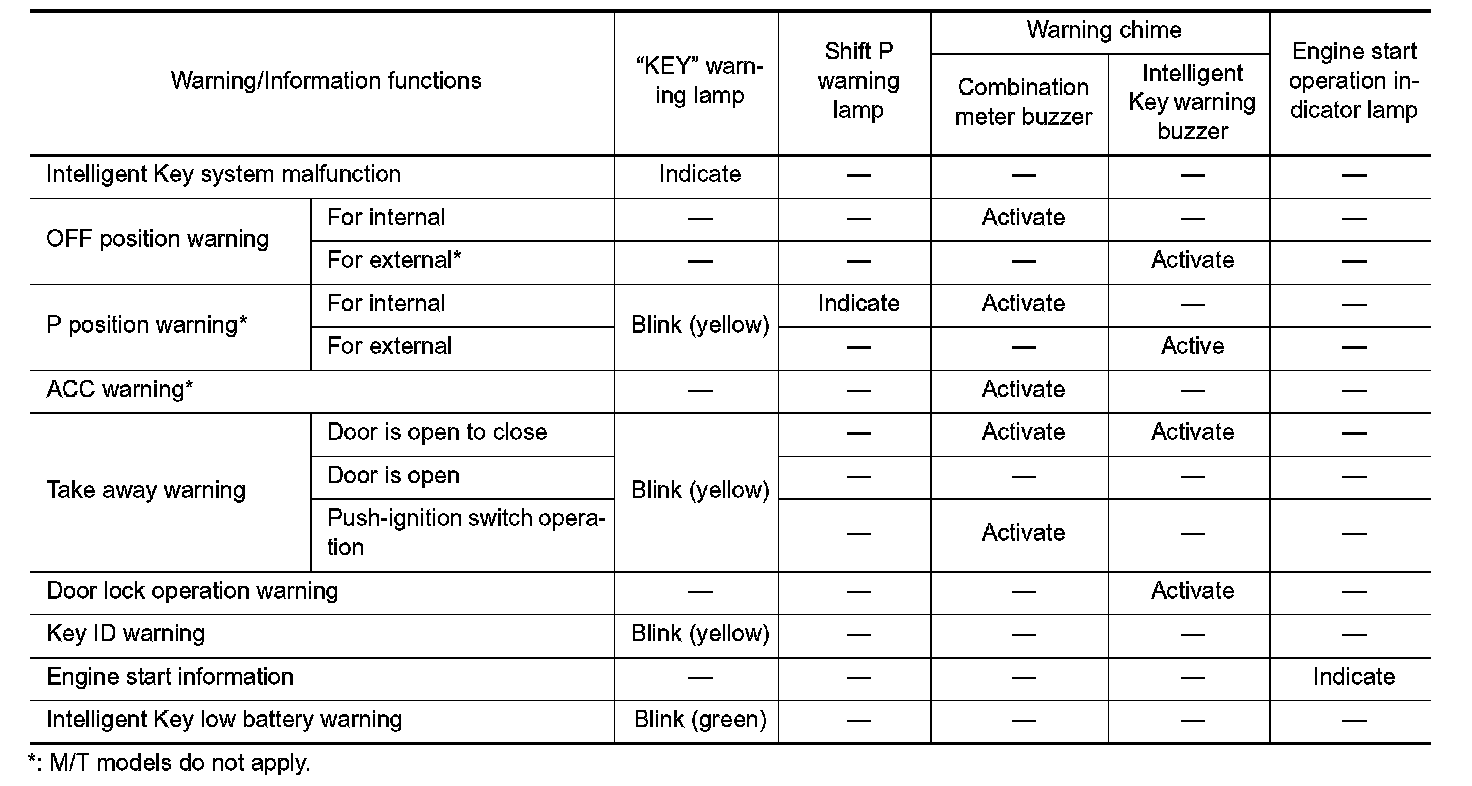

The following table shows the alarm or warning methods with chime.

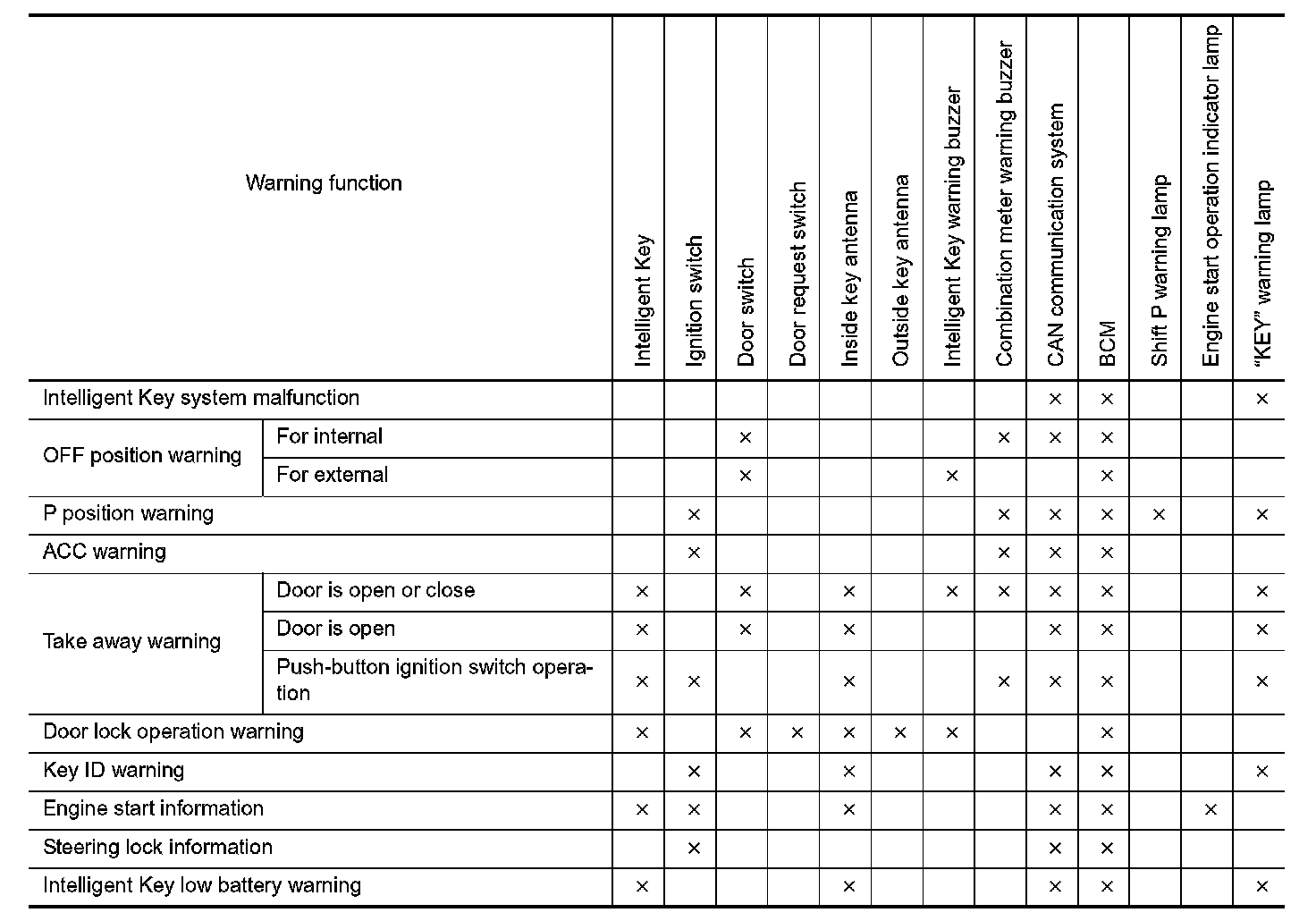

LIST OF OPERATION RELATED PARTS

Parts marked with x are the parts related to operation.
