With Intelligent Key System

NATS ANTENNA AMP.

Removal and Installation


REMOVAL

1.Remove the cluster lid A. Removal And Installation.
2.Remove the NATS antenna amp.

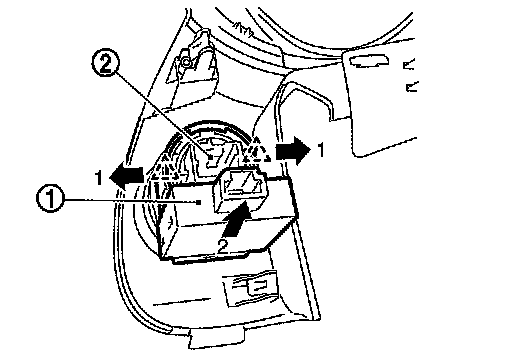

1.Disengage the NATS antenna amp. (1) fixing pawls using remover tool.
2.Pull NATS antenna amp. to remove it from push-button ignition switch (2).

Broken triangle indicates : Pawl


INSTALLATION

Install in the reverse order of removal.
