U1412

U1412 LONG ACC INPUT

DTC Logic

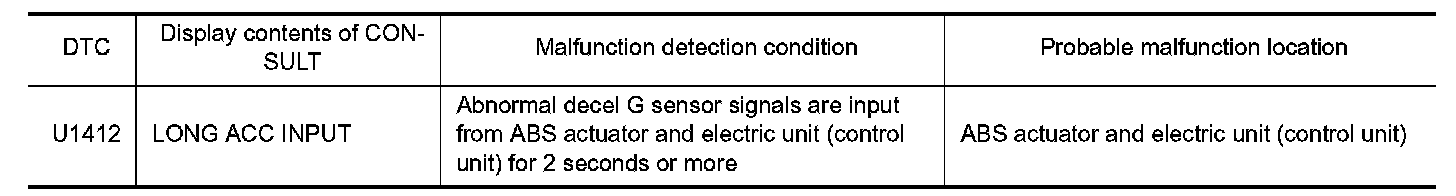

DTC DETECTION LOGIC








Diagnosis Procedure


1. PERFORM ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT) SELF-DIAGNOSIS

Using CONSULT, check the "self diagnosis result" of "ABS" and repair or replace any malfunctioning parts.
- Testing and Inspection.
