With VDC

U1010 CONTROL UNIT (CAN)

Description

CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle multiplex communication line with high data communication speed and excellent error detection ability. Many electronic control units are equipped onto a vehicle, and each control unit shares information and links with other control units during operation (not independent). In CAN communication, control units are connected with 2
communication lines (CAN-H line, CAN-L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only.


DTC Logic

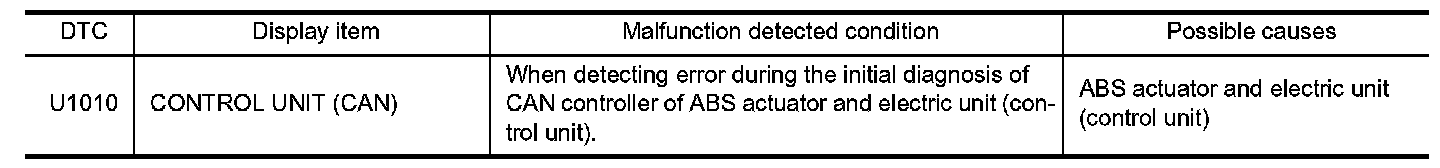

DTC DETECTION LOGIC







DTC CONFIRMATION PROCEDURE


1. PRECONDITIONING

If "DTC CONFIRMATION PROCEDURE" has been previously conducted, always turn ignition switch OFF and wait at least 10 seconds before conducting the next test.
- GO TO 2.

2. CHECK DTC DETECTION

With CONSULT
1.Turn the ignition switch OFF to ON.
2.Perform self-diagnosis for "ABS".
Is DTC "U1010" detected?
YES- Proceed to .
NO- INSPECTION END


Diagnosis Procedure


1. CHECK ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)

Check the ABS actuator and electric unit (control unit) harness connector for disconnection and deformation.
Is the inspection result normal?
YES- Replace ABS actuator and electric unit (control unit). Removal And Installation.
NO- Repair or replace error-detected parts.
