Meter System

Description

CAN (Controller Area Network) is a serial communication system for real time application. It is an on-vehicle multiplex communication system with high data communication speed and excellent error detectability. Many electronic control units are equipped onto vehicles, and each control unit shares information and links with other control units during operation (not independent). In CAN communication, control units are connected with two communication lines (CAN-H line, CAN-L line) allowing a high rate of information transmission with less wiring. Each control unit transmits/receives data but selectively reads required data only.
CAN Communication Signal Chart. CAN Communication Signal Chart.


DTC Logic

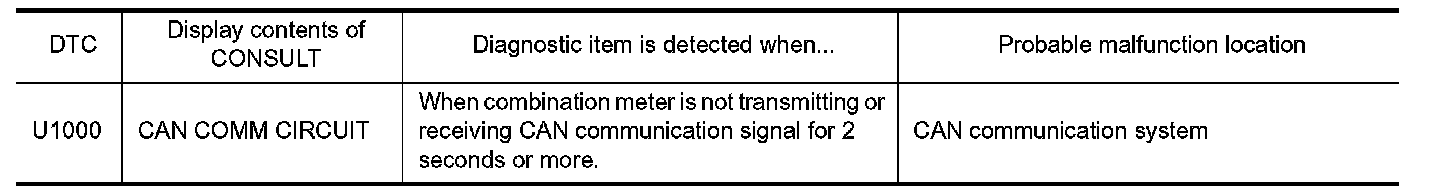

DTC DETECTION LOGIC








Diagnosis Procedure


1. PERFORM SELF DIAGNOSTIC

1.Turn ignition switch ON and wait for 2 seconds or more.
2.Check "Self Diagnostic Result" of "METER/M&A".
Is "CAN COMM CIRCUIT" displayed?
YES- Trouble Diagnosis Flow Chart.
NO- Intermittent Incident.
