P2119

P2119 ELECTRIC THROTTLE CONTROL ACTUATOR

DTC Logic

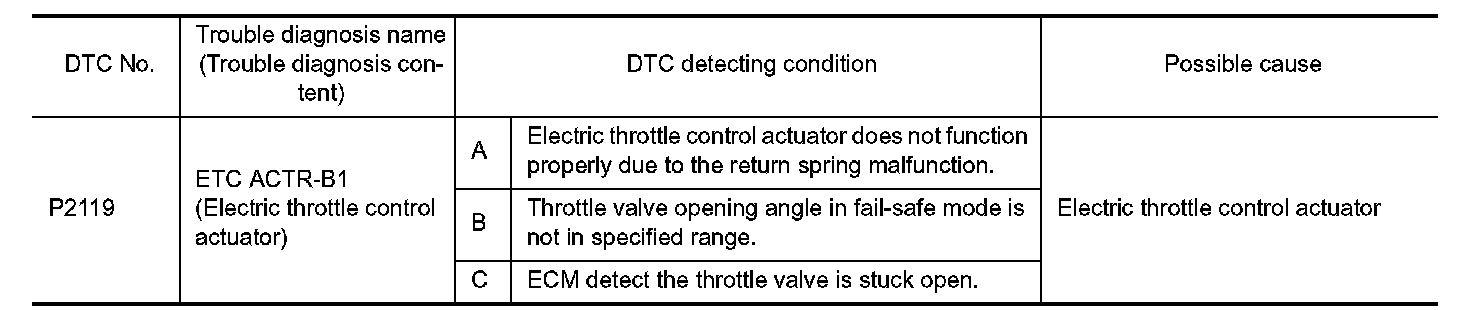

DTC DETECTION LOGIC







DTC CONFIRMATION PROCEDURE


1. PRECONDITIONING

If DTC Confirmation Procedure has been previously conducted, always perform the following procedure before conducting the next test.
1.Turn ignition switch OFF and wait at least 10 seconds.
2.Turn ignition switch ON.
3.Turn ignition switch OFF and wait at least 10 seconds.
- GO TO 2.

2. PERFORM DTC CONFIRMATION PROCEDURE FOR MALFUNCTION A AND B

1.Turn ignition switch ON and wait at least 1 second.
2.Set selector lever to D (CVT) or 1st (M/T) position and wait at least 3 seconds.
3.Set selector lever to P (CVT) or Neutral (M/T) position.
4.Turn ignition switch OFF and wait at least 10 seconds.
5.Turn ignition switch ON and wait at least 1 second.
6.Set selector lever to D (CVT) or 1st (M/T) position and wait at least 3 seconds.
7.Set selector lever to P (CVT) or Neutral (M/T) position.
8.Turn ignition switch OFF, wait at least 10 seconds and then turn ON.
9.Check DTC.
Is DTC detected?
YES- Proceed to .
NO- GO TO 3.

3. PERFORM DTC CONFIRMATION PROCEDURE FOR MALFUNCTION C

1.Turn ignition switch ON and wait at least 1 second.
2.Set selector lever to D (CVT) or 1st (M/T) position and wait at least 3 seconds.
3.Set selector lever to P (CVT) or Neutral (M/T) position.
4.Start engine and let it idle for 3 seconds.
5.Check DTC.
Is DTC detected?
YES- Proceed to .
NO- INSPECTION END


Diagnosis Procedure


1. CHECK ELECTRIC THROTTLE CONTROL ACTUATOR VISUALLY

1.Remove the intake air duct. Exploded View.
2.Check if foreign matter is caught between the throttle valve and the housing.
Is the inspection result normal?
YES- Replace electric throttle control actuator. Exploded View.
NO- Remove the foreign matter and clean the electric throttle control actuator inside, then perform throttle valve closed position learning. Work Procedure.
