P181F

P181F INCOMPLETE CALIBRATION

DTC Logic

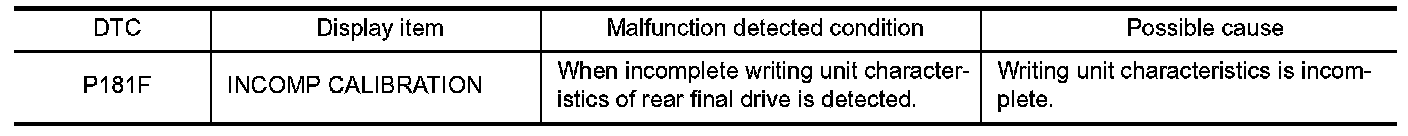

DTC DETECTION LOGIC







DTC CONFIRMATION PROCEDURE


1. PRECONDITIONING

If "DTC CONFIRMATION PROCEDURE" has been previously conducted, always turn ignition switch OFF and wait at least 10 seconds before conducting the next test.
- GO TO 2.

2. PERFORM DTC CONFIRMATION

With CONSULT
1.Turn the ignition switch OFF to ON.
2.Perform self-diagnosis for "ALL MODE AWD/4WD".
Is DTC "P181F" detected?
YES- Proceed to .
NO- INSPECTION END


Diagnosis Procedure


1. PERFORM WRITING UNIT CHARACTERISTICS

1.Erase self-diagnostic result for "ALL MODE AWD/4WD".
2.Perform writing unit characteristics. Work Procedure.
3.Perform self-diagnosis for "ALL MODE AWD/4WD".
Is any DTC except "P181F" detected?
YES- Perform trouble diagnosis for detected DTC. Testing and Inspection.
NO- GO TO 2.

2. PERFORM SELF-DIAGNOSIS AGAIN

With CONSULT
Perform "DTC CONFIRMATION PROCEDURE" (self-diagnosis) again. .
Is DTC "P181F" detected?
YES- Replace AWD control module. Removal And Installation.
NO- Check AWD control module pin terminals for damage or loose connection with harness connector.
If any items are damaged, repair or replace error-detected parts.
