P181E

P181E STEERING ANGLE SENSOR

DTC Logic

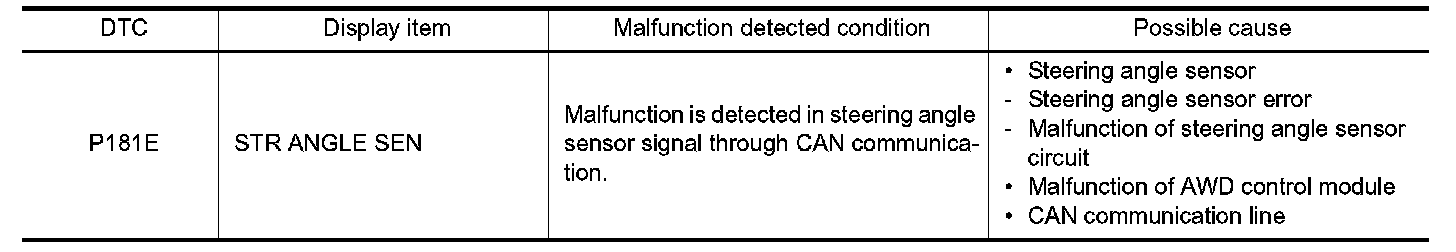

DTC DETECTION LOGIC







DTC CONFIRMATION PROCEDURE


1. PRECONDITIONING

If "DTC CONFIRMATION PROCEDURE" has been previously conducted, always turn ignition switch OFF and wait at least 10 seconds before conducting the next test.
- GO TO 2.

2. PERFORM DTC CONFIRMATION

With CONSULT
1.Turn the ignition switch OFF to ON.
2.Perform self-diagnosis for "ALL MODE AWD/4WD".
Is DTC "P181E" detected?
YES- Proceed to .
NO- INSPECTION END


Diagnosis Procedure


1. PERFORM ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT) SELF-DIAGNOSIS

With CONSULT
Perform self-diagnosis for "ABS".
Is DTC "C1143" detected?
YES- Proceed to C1143.
NO- GO TO 2.

2. CHECK TERMINALS AND HARNESS CONNECTORS

Check AWD control module pin terminals for damage or loose connection with harness connector.
Is inspection result normal?
YES- After turning the ignition switch OFF, perform DTC confirmation procedure again. If DTC "P181E"
is detected, Replace AWD control module. Removal And Installation.
NO- Repair or replace error-detected parts.
