P1615

P1615 DIFFERENCE OF KEY

DTC Logic

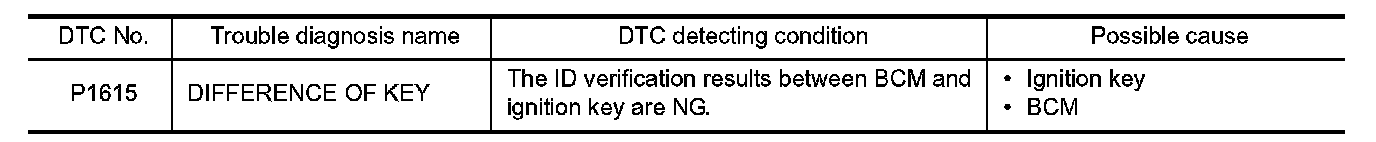

DTC DETECTION LOGIC







DTC CONFIRMATION PROCEDURE


1. PERFORM DTC CONFIRMATION PROCEDURE

1.Turn ignition switch ON.
2.Check DTC in "Self Diagnostic Result" mode of "ENGINE" using CONSULT.
Is DTC detected?
YES- .
NO- INSPECTION END


Diagnosis Procedure


1. PERFORM INITIALIZATION

Perform initialization of BCM and registration of all ignition keys using CONSULT.
Can the system be initialized and can the engine be started with registered ignition key?
YES- INSPECTION END
NO- GO TO 2.

2. REPLACE IGNITION KEY

1.Replace ignition key.
2.Perform initialization of BCM and registration of all ignition keys using CONSULT.
Can the system be initialized and can the engine be started with registered ignition key?
YES- INSPECTION END
NO- GO TO 3.

3. REPLACE BCM

1.Replace BCM. Service and Repair.
2.Perform initialization of BCM and registration of all ignition keys using CONSULT.
- INSPECTION END
