With Intelligent Key System

P1611 ID DISCORD, IMMU-ECM

DTC Logic

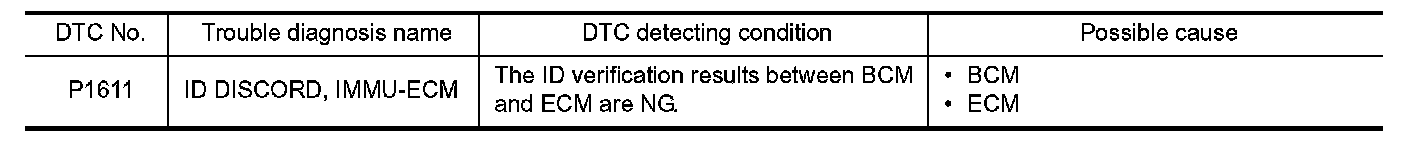

DTC DETECTION LOGIC







DTC CONFIRMATION PROCEDURE


1. PERFORM DTC CONFIRMATION PROCEDURE

1.Turn ignition switch ON.
2.Check DTC in "Self Diagnostic Result" mode of "ENGINE" using CONSULT.
Is DTC detected?
YES- Go to .
NO- INSPECTION END


Diagnosis Procedure


1. PERFORM INITIALIZATION

Perform initialization of BCM and registration of all Intelligent Keys using CONSULT.
Can the system be initialized and can the engine be started with registered Intelligent Key?
YES- INSPECTION END
NO- GO TO 2.

2. CHECK SELF DIAGNOSTIC RESULT

1.Select "Self Diagnostic Result" mode of "ENGINE" using CONSULT.
2.Erase DTC.
3.Perform DTC CONFIRMATION PROCEDURE for DTC P1611. .
Is DTC detected?
YES- GO TO 3.
NO- INSPECTION END

3. REPLACE BCM

1.Replace BCM. With Intelligent Key System.
2.Perform initialization of BCM and registration of all Intelligent Keys using CONSULT.
Can the system be initialized and can the engine be started with registered Intelligent Key?
YES- INSPECTION END
NO- GO TO 4.

4. REPLACE ECM

Replace ECM.
Service and Repair.
- INSPECTION END
