P1557

P1556, P1557 BATTERY TEMPERATURE SENSOR

DTC Logic

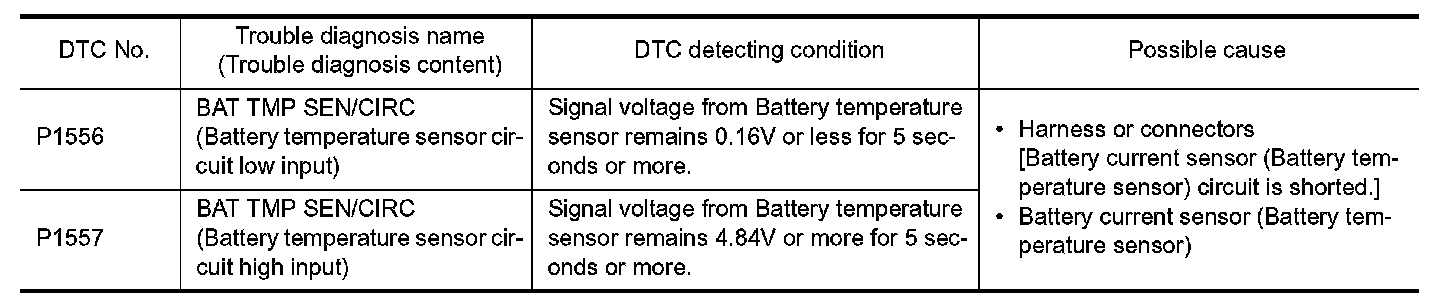

DTC DETECTION LOGIC







DTC CONFIRMATION PROCEDURE


1. PRECONDITIONING

1.Turn ignition switch OFF and wait at least 10 seconds.
2.Turn ignition switch ON.
3.Turn ignition switch OFF and wait at least 10 seconds.

TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is 10 V or more at idle.
- GO TO 2.

2. PERFORM DTC CONFIRMATION PROCEDURE

1.Start the engine and let it idle at least 10 seconds.
2.Check 1st trip DTC.
Is 1st trip DTC detected?
YES- Proceed to .
NO- INSPECTION END


Diagnosis Procedure


1. CHECK BATTERY TEMPERATURE SENSOR POWER SUPPLY

1.Turn ignition switch OFF.
2.Disconnect battery current sensor harness connector.
3.Turn ignition switch ON.

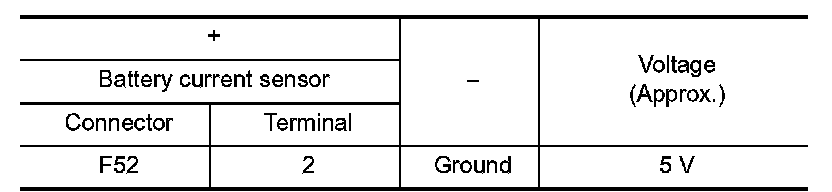

4.Check the voltage between battery current sensor harness connector and ground.





Is the inspection result normal?
YES- GO TO 3.
NO- GO TO 2.

2. CHECK BATTERY TEMPERATURE SENSOR POWER SUPPLY CIRCUIT

1.Turn ignition switch OFF.
2.Disconnect ECM harness connector.

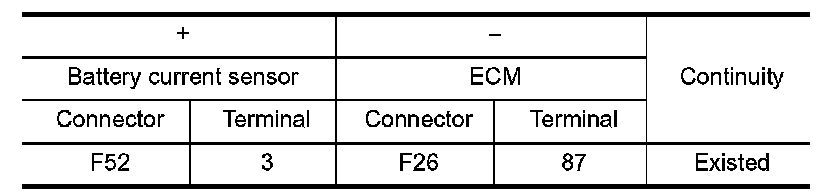

3.Check the continuity between battery current sensor harness connector and ECM harness connector.





4.Also check harness for short to ground.
Is the inspection result normal?
YES- Perform the trouble diagnosis for power supply circuit.
NO- Repair or replace error-detected parts.

3. CHECK BATTERY TEMPERATURE SENSOR GROUND CIRCUIT

1.Turn ignition switch OFF.
2.Disconnect ECM harness connector.

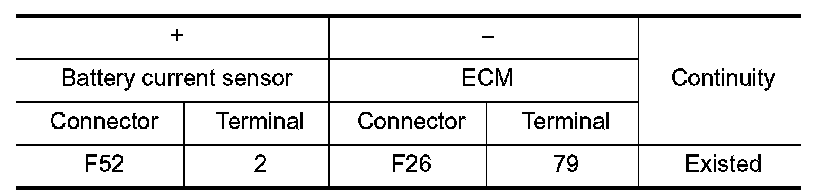

3.Check the continuity between battery current sensor harness connector and ECM harness connector.





4.Also check harness for short to power.
Is the inspection result normal?
YES- GO TO 4.
NO- Repair or replace error-detected parts.

4. CHECK BATTERY TEMPERATURE SENSOR

Check the battery temperature sensor. .
Is the inspection result normal?
YES- Check intermittent incident. Intermittent Incident.
NO- Replace battery negative cable assembly. Exploded View.


Component Inspection


1. CHECK BATTERY TEMPERATURE SENSOR

1.Turn ignition switch OFF.
2.Disconnect battery current sensor.

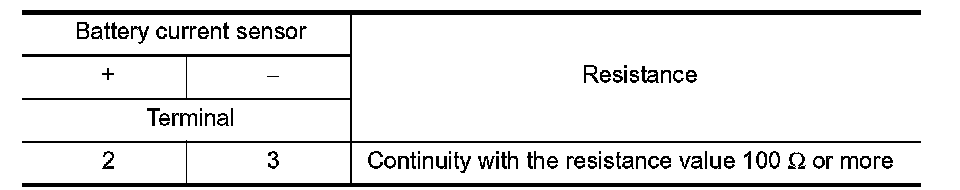

3.Check the resistance between battery current sensor connector terminals.





Is the inspection result normal?
YES- INSPECTION END
NO- Replace battery negative cable assembly. Exploded View.
