P1225

P1225 TP SENSOR

DTC Logic

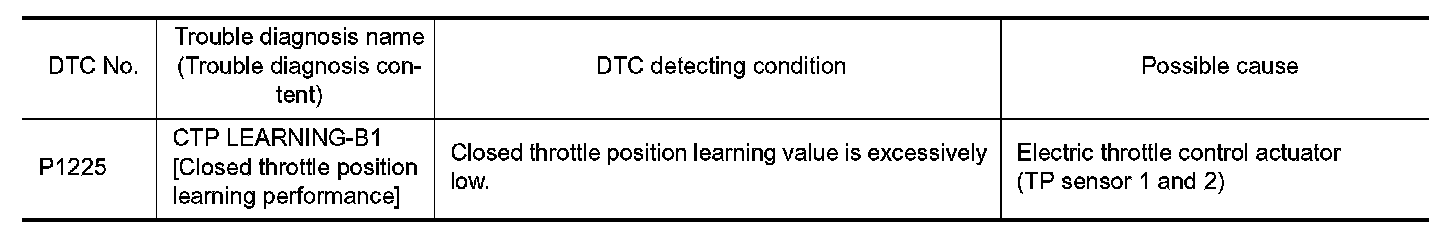

DTC DETECTION LOGIC







DTC CONFIRMATION PROCEDURE


1. PRECONDITIONING

If DTC Confirmation Procedure has been previously conducted, always perform the following procedure before conducting the next test.
1.Turn ignition switch OFF and wait at least 10 seconds.
2.Turn ignition switch ON.
3.Turn ignition switch OFF and wait at least 10 seconds.

TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 10 V at idle.
- GO TO 2.

2. PERFORM DTC CONFIRMATION PROCEDURE

1.Turn ignition switch ON.
2.Turn ignition switch OFF and wait at least 10 seconds.
3.Turn ignition switch ON.
4.Check 1st trip DTC.
Is 1st trip DTC detected?
YES- Proceed to .
NO- INSPECTION END


Diagnosis Procedure


1. CHECK ELECTRIC THROTTLE CONTROL ACTUATOR VISUALLY

1.Turn ignition switch OFF.
2.Remove the intake air duct. Exploded View.
3.Check if foreign matter is caught between the throttle valve and the housing.
Is the inspection result normal?
YES- Replace electric throttle control actuator. Exploded View.
NO- Remove the foreign matter and clean the electric throttle control actuator inside, then perform throttle valve closed position learning. Work Procedure.
