P1212

P1212 TCS COMMUNICATION LINE

Description

This CAN communication line is used to control the smooth engine operation during the TCS operation. Pulse signals are exchanged between ECM and "ABS actuator and electric unit (control unit)".
Be sure to erase the malfunction information such as DTC not only for "ABS actuator and electric unit (control unit)" but also for ECM after TCS related repair.


DTC Logic

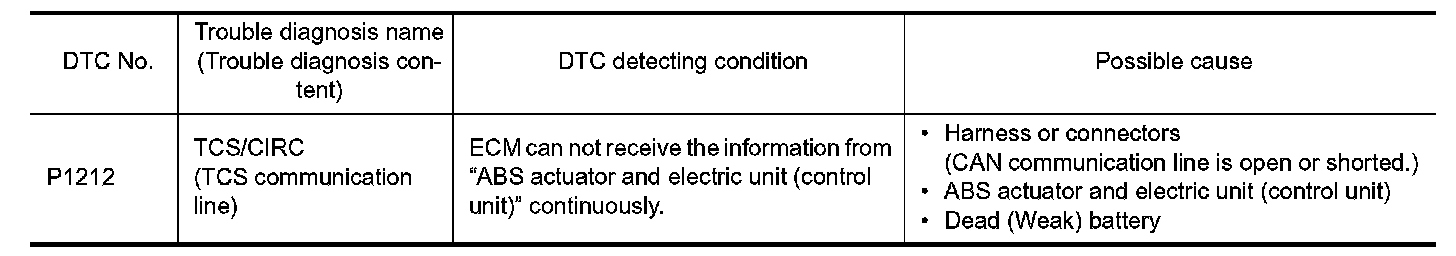

DTC DETECTION LOGIC

NOTE:
-If DTC P1212 is displayed with DTC U1001, first perform the trouble diagnosis for DTC U1001. U1001.
-If DTC P1212 is displayed with DTC P0607, first perform the trouble diagnosis for DTC P0607. P0607.
Freeze frame data is not stored in the ECM for this self-diagnosis.






DTC CONFIRMATION PROCEDURE


1. PRECONDITIONING

If DTC Confirmation Procedure has been previously conducted, always perform the following procedure before conducting the next test.
1.Turn ignition switch OFF and wait at least 10 seconds.
2.Turn ignition switch ON.
3.Turn ignition switch OFF and wait at least 10 seconds.

TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 10.5V at idle.
- GO TO 2.

2. PERFORM DTC CONFIRMATION PROCEDURE

1.Start engine and let it idle for at least 10 seconds.
2.Check 1st trip DTC.
Is 1st trip DTC detected?
YES- Proceed to .
NO- INSPECTION END


Diagnosis Procedure

Perform the trouble diagnosis for TCS. Work Flow.
NOTE:
If DTC P1212 is displayed with DTC UXXXX and/or P0607, perform the following trouble diagnosis.
- Trouble diagnosis for DTC UXXXX Testing and Inspection.
- Trouble diagnosis for DTC P0607 P0607.
