P0826

P0826 UP AND DOWN SHIFT SW

DTC Logic

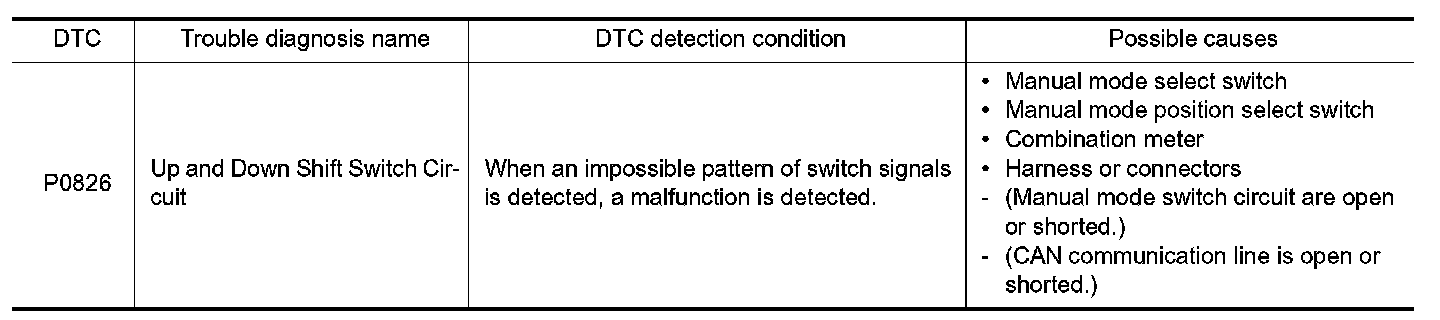

DTC DETECTION LOGIC







DTC CONFIRMATION PROCEDURE


1. PREPARATION BEFORE WORK

If another "DTC CONFIRMATION PROCEDURE" occurs just before, turn ignition switch OFF and wait for at least 10 seconds, then perform the next test.
- GO TO 2.

2. CHECK DTC DETECTION (PART 1)

With CONSULT
1.Start the engine.
2.Shift the selector lever to "D" position and wait for 1 second or more.
3.Select "Self Diagnostic Results" in "TRANSMISSION".
Is "P0826" detected?
YES- Go to .
NO- GO TO 3.

3. CHECK DTC DETECTION (PART 2)

With CONSULT
1.Shift the selector lever to manual shift gate and wait for 1 second or more.
2.Select "Self Diagnostic Results" in "TRANSMISSION".
Is "P0826" detected?
YES- Go to .
NO- GO TO 4.

4. CHECK DTC DETECTION (PART 3)

With CONSULT
1.Shift the selector lever to "UP side (+ side)" and wait for 1 second or more.
2.Select "Self Diagnostic Results" in "TRANSMISSION".
Is "P0826" detected?
YES- Go to .
NO- GO TO 5.

5. CHECK DTC DETECTION (PART 4)

With CONSULT
1.Shift the selector lever to "DOWN side (- side)" and wait for 1 second or more.
2.Select "Self Diagnostic Results" in "TRANSMISSION".
Is "P0826" detected?
YES- Go to .
NO- INSPECTION END


Diagnosis Procedure


1. CHECK DTC (COMBINATION METER)

With CONSULT
1.Turn ignition switch ON.
2.Select "Self Diagnostic Results" in "METER/M&A".
Is any DTC detected?
YES- Check DTC detected item. Testing and Inspection.
NO- GO TO 2.

2. CHECK MANUAL MODE SWITCH POWER SUPPLY CIRCUIT

1.Turn ignition switch OFF.
2.Disconnect CVT shift selector connector.
3.Turn ignition switch ON.

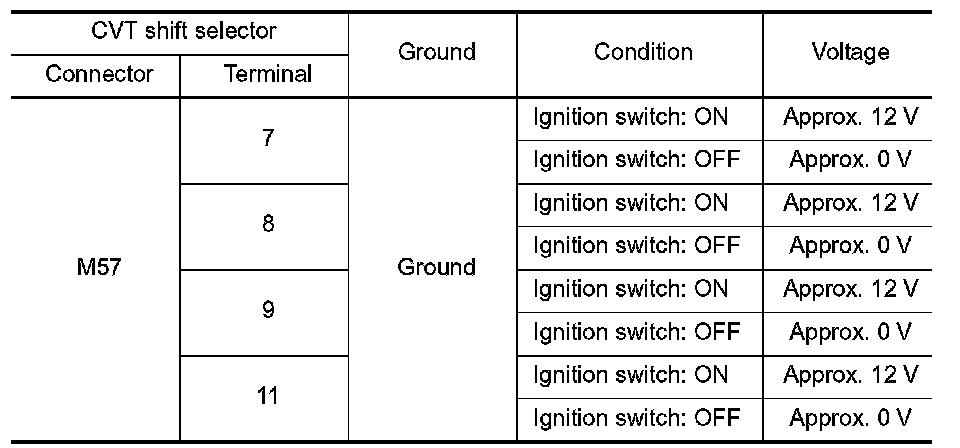

4.Check voltage between CVT shift selector harness connector terminal and ground.





Is the inspection result normal?
YES- GO TO 3.
NO- GO TO 4.

3. CHECK MANUAL MODE SWITCH

1.Turn ignition switch OFF.
2.Check manual mode switch. .
Is the inspection result normal?
YES- GO TO 6.
NO- Repair or replace damaged parts.

4. CHECK CIRCUIT BETWEEN CVT SHIFT SELECTOR AND COMBINATION METER (PART 1)

1.Turn ignition switch OFF.
2.Disconnect combination meter connector.

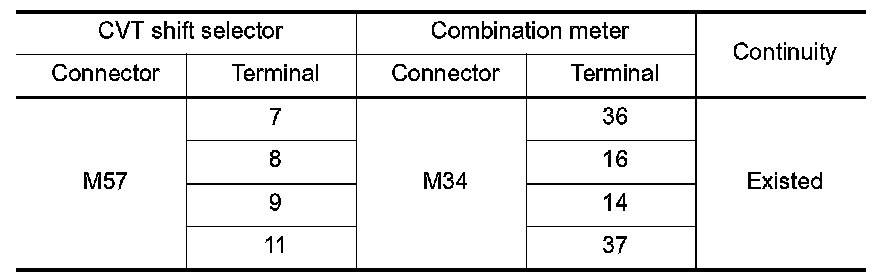

3.Check continuity between CVT shift selector harness connector terminals and combination meter harness connector terminals.





Is the inspection result normal?
YES- GO TO 5.
NO- Repair or replace damaged parts.

5. CHECK CIRCUIT BETWEEN CVT SHIFT SELECTOR AND COMBINATION METER (PART 2)

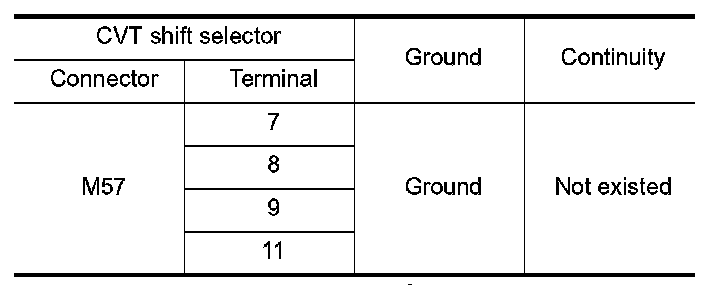

Check continuity between CVT shift selector harness connector terminals and ground.





Is the inspection result normal?
YES- Check intermittent incident. Intermittent Incident.
NO- Repair or replace damaged parts.

6. CHECK GROUND CIRCUIT

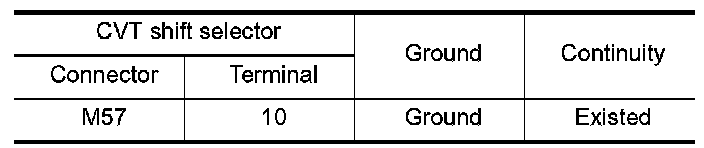

Check continuity between CVT shift selector harness connector terminal and ground.





Is the inspection result normal?
YES- Check intermittent incident. Intermittent Incident.
NO- Repair or replace damaged parts.


Component Inspection (Manual Mode Switch)


MANUAL MODE SWITCH


1. MANUAL MODE SWITCH

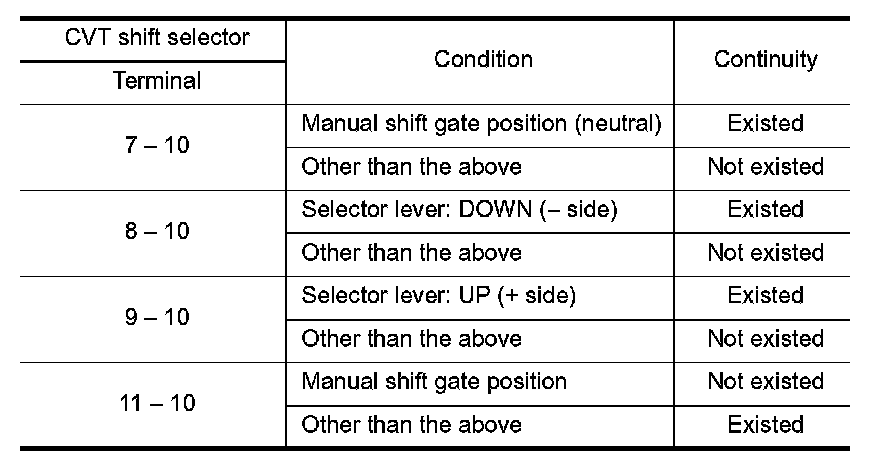

Check continuity between CVT shift selector connector terminals.





Is the inspection result normal?
YES- INSPECTION END
NO- There is a malfunction of the manual mode switch. Replace the CVT shift selector assembly.
Removal And Installation.
