P062B

P062B ECM

Description

This DTC is detected when the ECM-integrated injector driver unit has a malfunction. For injector driver unit, Description and Operation.


DTC Logic

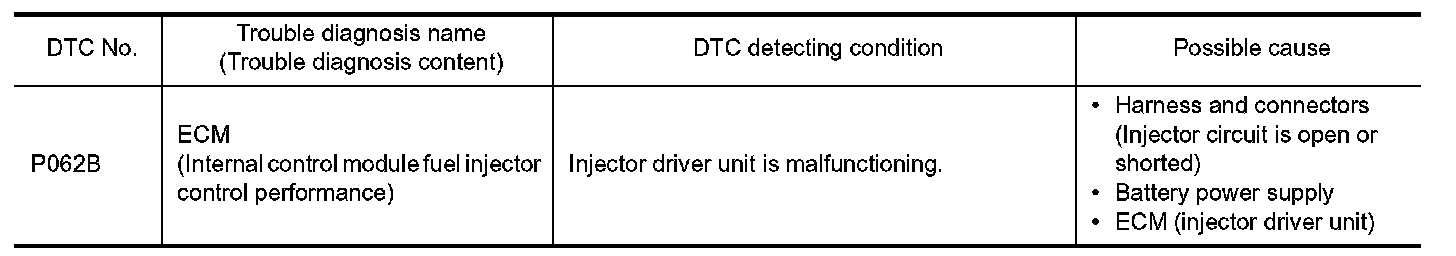

DTC DETECTION LOGIC







DTC CONFIRMATION PROCEDURE


1. PRECONDITIONING

1.Turn ignition switch OFF and wait at least 10 seconds.
2.Turn ignition switch ON.
3.Turn ignition switch OFF and wait at least 10 seconds.

TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is 11 V or more at idle.
- GO TO 2.

2. PERFORM DTC CONFIRMATION PROCEDURE

1.Start the engine and keep the engine speed at idle for 30 seconds.
2.Check 1st trip DTC.
Is 1st trip DTC detected?
YES- Proceed to .
NO- INSPECTION END


Diagnosis Procedure


1. CHECK FUEL INJECTOR

Check fuel injector. Refer toFuel Injector.
Is inspection result normal?
YES- GO TO 2.
NO- Repair or replace error-detected parts.

2. PERFORM DTC CONFIRMATION PROCEDURE

1.Turn ignition switch ON.
2.Erase DTC.
3.Perform DTC confirmation procedure again. .
4.Check 1st trip DTC.
Is the DTC P062B displayed again?
YES- Replace ECM. Service and Repair.
NO- INSPECTION END
