P0453
P0453 EVAP CONTROL SYSTEM PRESSURE SENSOR
DTC Logic

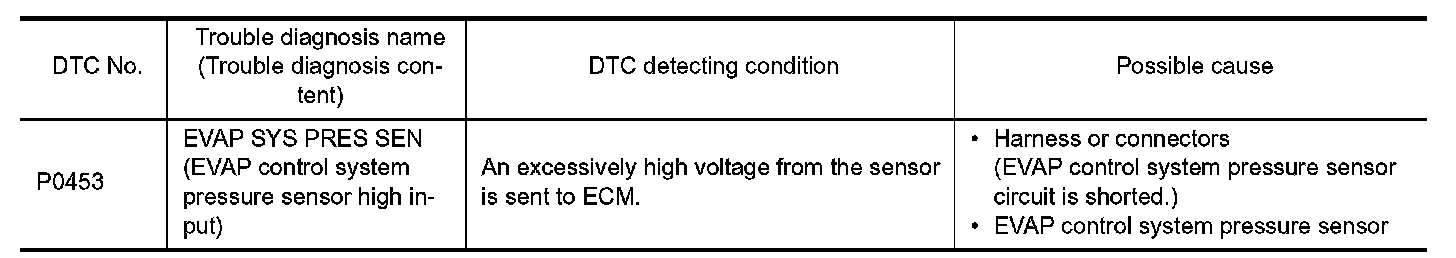

DTC DETECTION LOGIC
NOTE:
If DTC P0451 is displayed with DTC P0643, first perform the trouble diagnosis for DTC P0643. Refer to
P0643.
DTC CONFIRMATION PROCEDURE
1. PRECONDITIONING
If DTC Confirmation Procedure has been previously conducted, always perform the following procedure before conducting the next test.
1.Turn ignition switch OFF and wait at least 10 seconds.
2.Turn ignition switch ON.
3.Turn ignition switch OFF and wait at least 10 seconds.
TESTING CONDITION:
Always perform test at a temperature of 5�C (41�F) or more.
- GO TO 2.
2. PERFORM DTC CONFIRMATION PROCEDURE
With CONSULT
1.Start engine and warm it up to normal operating temperature.
2.Turn ignition switch OFF and wait at least 10 seconds.
3.Turn ignition switch ON.
4.Select "DATA MONITOR" mode of "ENGINE" using CONSULT.
5.Make sure that "FUEL T/TMP SE" indication is more than 0�C (32�F).
6.Start engine and wait at least 20 seconds.
7.Check 1st trip DTC.
With GST
1.Start engine and warm it up to normal operating temperature.

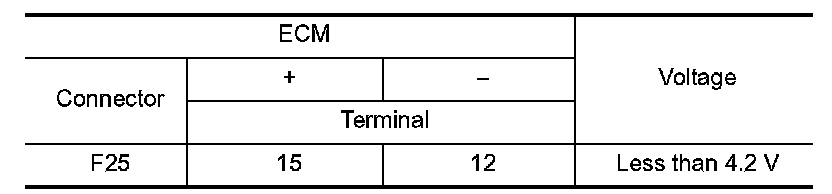

2.Set voltmeter probes to ECM harness connector terminals as per the following.
3.Make sure that the voltage is less than 4.2 V.
4.Turn ignition switch OFF and wait at least 10 seconds.
5.Start engine and wait at least 20 seconds.
6.Check 1st trip DTC.
Is 1st trip DTC detected?
YES- Proceed to .
NO- INSPECTION END
Diagnosis Procedure
1. CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR CONNECTOR FOR WATER
1.Turn ignition switch OFF.
2.Disconnect EVAP control system pressure sensor harness connector.
3.Check sensor harness connector for water.
Water should not exist.
Is the inspection result normal?
YES- GO TO 2.
NO- Repair or replace harness connector.
2. CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR POWER SUPPLY
1.Turn ignition switch ON.

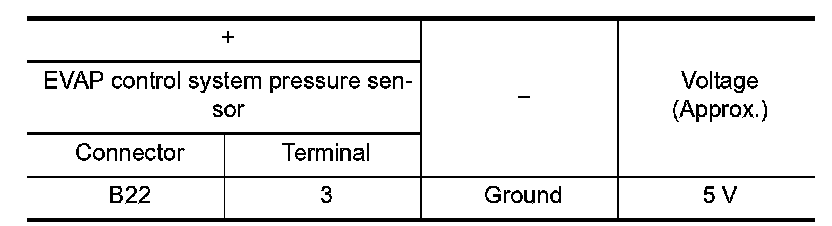

2.Check the voltage between EVAP control system pressure sensor harness connector and ground.
Is the inspection result normal?
YES- GO TO 4.
NO- GO TO 3.
3. CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR POWER SUPPLY CIRCUIT
1.Turn ignition switch OFF.
2.Disconnect ECM harness connector.

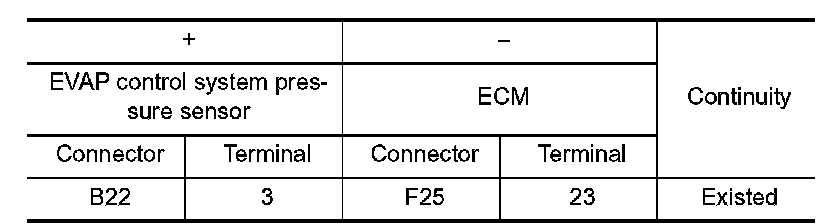

3.Check the continuity between EVAP control system pressure sensor harness connector and ECM harness connector.
4.Also check harness for short to ground and to power.
Is the inspection result normal?
YES- Perform the trouble diagnosis for power supply circuit.
NO- Repair or replace error-detected parts
4. CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR GROUND CIRCUIT
1.Turn ignition switch OFF.
2.Disconnect ECM harness connector.
3.Check the continuity between EVAP control system pressure sensor harness connector and ECM harness connector.
4.Also check harness for short to power.
Is the inspection result normal?
YES- GO TO 5.
NO- Repair or replace error-detected parts.
5. CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR SIGNAL CIRCUIT

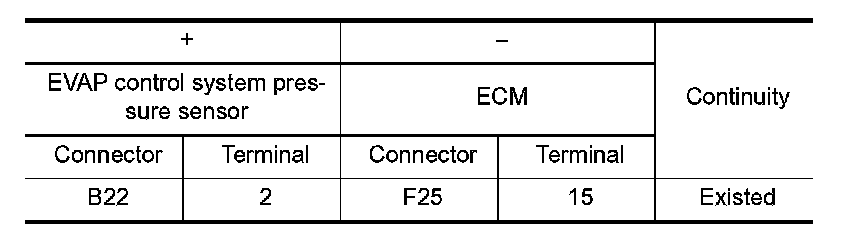

1.Check the continuity between EVAP control system pressure sensor harness connector and ECM harness connector.
2.Also check harness for short to ground and to power.
Is the inspection result normal?
YES- GO TO 6.
NO- Repair or replace error-detected parts.
6. CHECK RUBBER TUBE
1.Disconnect rubber tube connected to EVAP canister vent control valve.
2.Check the rubber tube for clogging.
Is the inspection result normal?
YES- GO TO 7.
NO- Clean the rubber tube using an air blower, repair or replace rubber tube.
7. CHECK EVAP CANISTER VENT CONTROL VALVE
P0447.
Is the inspection result normal?
YES- GO TO 8.
NO- Replace EVAP canister vent control valve. Exploded View(2WD), Exploded View(AWD).
8. CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR
.
Is the inspection result normal?
YES- GO TO 9.
NO- Replace EVAP control system pressure sensor. Exploded View(2WD), Exploded View(AWD).
9. CHECK IF EVAP CANISTER IS SATURATED WITH WATER
1.Remove EVAP canister with EVAP canister vent control valve and EVAP control system pressure sensor attached.
2.Check if water will drain from the EVAP canister.
Does water drain from EVAP canister?
YES- GO TO 10.
NO- Check intermittent incident. Intermittent Incident.
10. CHECK EVAP CANISTER
Weigh the EVAP canister with the EVAP canister vent control valve and EVAP control system pressure sensor attached.
The weight should be less than 1.9 kg (4.2 lb).
Is the inspection result normal?
YES- Check intermittent incident. Intermittent Incident.
NO- GO TO 11.
11. DETECT MALFUNCTIONING PART
Check the following.
- EVAP canister for damage
- EVAP hose between EVAP canister and vehicle frame for clogging or poor connection
- Repair hose or replace EVAP canister. Exploded View(2WD), Exploded View(AWD).
Component Inspection
1. CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR
1.Turn ignition switch OFF.
2.Remove EVAP control system pressure sensor with its harness connector connected from EVAP canister.
Always replace O-ring with a new one.
3.Install a vacuum pump to EVAP control system pressure sensor.

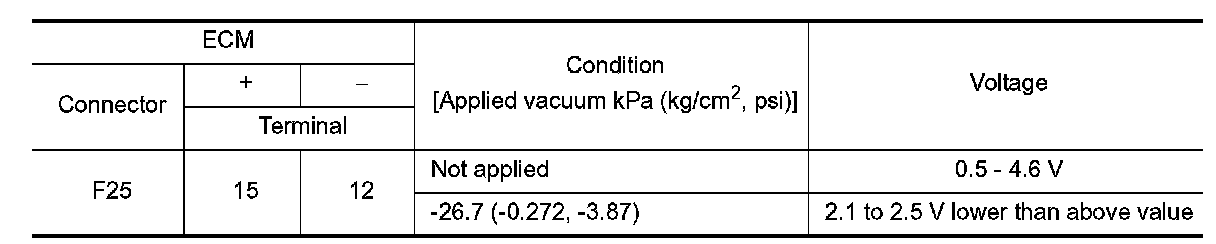

4.Turn ignition switch ON and check output voltage between ECM harness connector and ground under the following conditions.
CAUTION:
- Always calibrate the vacuum pump gauge when using it.
- Do not apply below -93.3 kPa (-0.952 kg/cm2, -13.53 psi) or pressure over 101.3 kPa (1.033 kg/cm2, 14.69 psi).
Is the inspection result normal?
YES- INSPECTION END
NO- Replace EVAP control system pressure sensor. Exploded View(2WD), Exploded View(AWD).
