P0448
P0448 EVAP CANISTER VENT CONTROL VALVE
DTC Logic

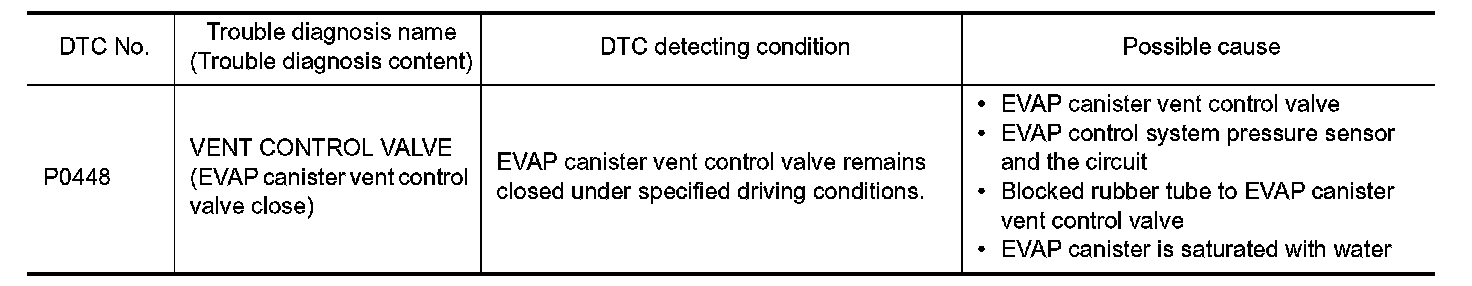

DTC DETECTION LOGIC
DTC CONFIRMATION PROCEDURE
1. PRECONDITIONING
If DTC Confirmation Procedure has been previously conducted, always perform the following procedure before conducting the next test.
1.Turn ignition switch OFF and wait at least 10 seconds.
2.Turn ignition switch ON.
3.Turn ignition switch OFF and wait at least 10 seconds.
- GO TO 2.
2. PERFORM DTC CONFIRMATION PROCEDURE
With CONSULT
1.Turn ignition switch ON and wait at least 5 seconds.
2.Turn ignition switch OFF and wait at least 10 seconds.
3.Turn ignition switch ON and select "DATA MONITOR" mode of "ENGINE" using CONSULT.
4.Start engine and let it idle for at least 1 minute.

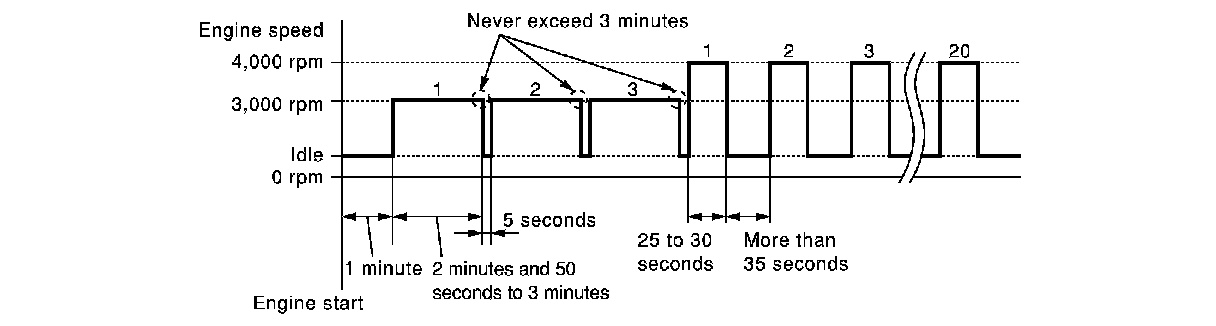

5.Repeat next procedures three times.
-Increase the engine speed up to 3,000 to 3,500 rpm and keep it for 2 minutes and 50 seconds to 3 minutes.
Never exceed 3 minutes.
-Fully released accelerator pedal and keep engine idle for about 5 seconds.
6.Repeat next procedure 20 times.
-Quickly increase the engine speed up to 4,000 to 4,500 rpm or more and keep it for 25 to 30 seconds.
-Fully released accelerator pedal and keep engine idle for at least 35 seconds.
7.Check 1st trip DTC.
With GST
Follow the procedure "With CONSULT" above.
Is 1st trip DTC detected?
YES- Proceed to .
NO- INSPECTION END
Diagnosis Procedure
1. CHECK RUBBER TUBE
1.Turn ignition switch OFF.
2.Disconnect rubber tube connected to EVAP canister vent control valve.
3.Check the rubber tube for clogging.
Is the inspection result normal?
YES- GO TO 2.
NO- Clean rubber tube using an air blower.
2. CHECK EVAP CANISTER VENT CONTROL VALVE
Check the EVAP canister vent control valve. .
Is the inspection result normal?
YES- GO TO 3.
NO- Replace EVAP canister vent control valve. Exploded View(2WD), Exploded View(AWD).
3. CHECK IF EVAP CANISTER IS SATURATED WITH WATER
1.Remove EVAP canister with EVAP canister vent control valve and EVAP control system pressure sensor attached.

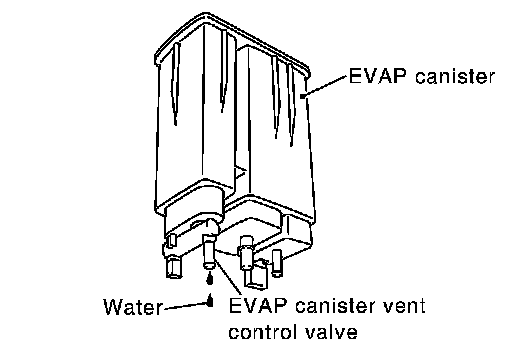

2.Check if water will drain from the EVAP canister.
Does water drain from EVAP canister?
YES- GO TO 4.
NO- GO TO 6.
4. CHECK EVAP CANISTER
Weigh the EVAP canister with the EVAP canister vent control valve and EVAP control system pressure sensor attached.
The weight should be less than 1.9 kg (4.2 lb).
Is the inspection result normal?
YES- GO TO 6.
NO- GO TO 5.
5. DETECT MALFUNCTIONING PART
Check the following.
- EVAP canister for damage
- EVAP hose between EVAP canister and vehicle frame for clogging or poor connection
- Repair hose or replace EVAP canister. Exploded View(2WD), Exploded View(AWD).
6. CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR CONNECTOR
1.Disconnect EVAP control system pressure sensor harness connector.
2.Check connectors for water.
Water should not exist.
Is the inspection result normal?
YES- GO TO 7.
NO- Replace EVAP control system pressure sensor. Exploded View(2WD), Exploded View(AWD).
7. CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR
Check the EVAP control system pressure sensor. P0451.
Is the inspection result normal?
YES- Check intermittent incident. Intermittent Incident.
NO- Replace EVAP control system pressure sensor. Exploded View(2WD), Exploded View(AWD).
Component Inspection
1. CHECK EVAP CANISTER VENT CONTROL VALVE-I
1.Turn ignition switch OFF.
2.Remove EVAP canister vent control valve from EVAP canister.

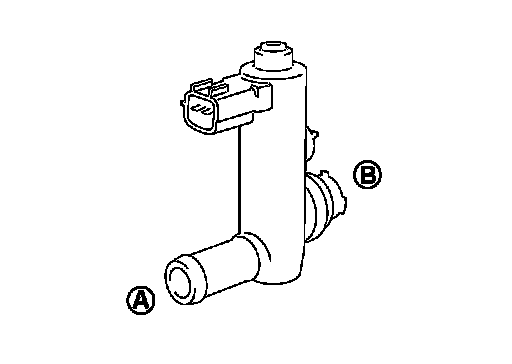

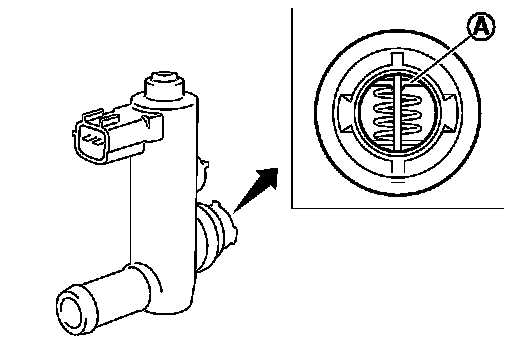

3.Check portion (A) of EVAP canister vent control valve for being rusted.
Is it rusted?
YES- Replace EVAP canister vent control valve. Exploded View(2WD), "AWD :
Exploded View"(AWD).
NO- GO TO 2.
2. CHECK EVAP CANISTER VENT CONTROL VALVE-II
With CONSULT
1.Reconnect harness connectors disconnected.
2.Turn ignition switch ON.

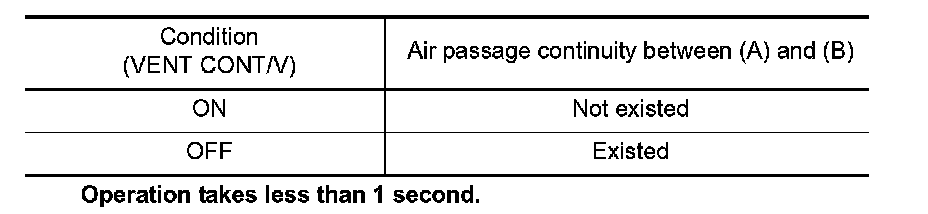

3.Perform "VENT CONTROL/V" in "ACTIVE TEST" mode of "ENGINE" using CONSULT.
4.Check air passage continuity and operation delay time.
Make sure new O-ring is installed properly.
Without CONSULT

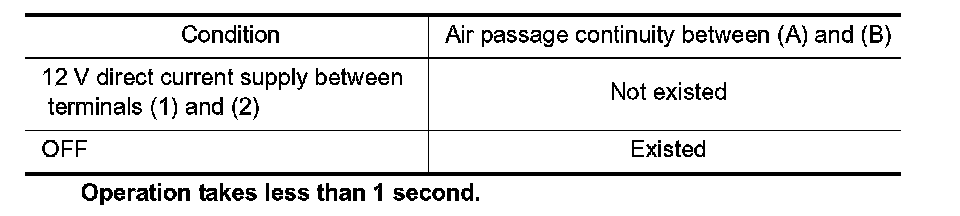

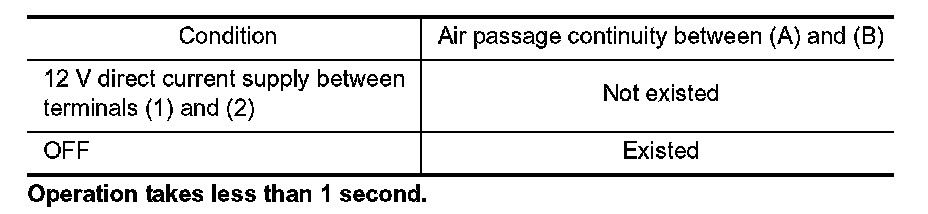

Check air passage continuity and operation delay time under the following conditions.
Make sure new O-ring is installed properly.
Is the inspection result normal?
YES- GO TO 3.
NO- Replace EVAP canister vent control valve. Exploded View(2WD), Exploded View(AWD).
3. CHECK EVAP CANISTER VENT CONTROL VALVE-III
With CONSULT
1.Clean the air passage [portion (A) to (B)] of EVAP canister vent control valve using an air blower.

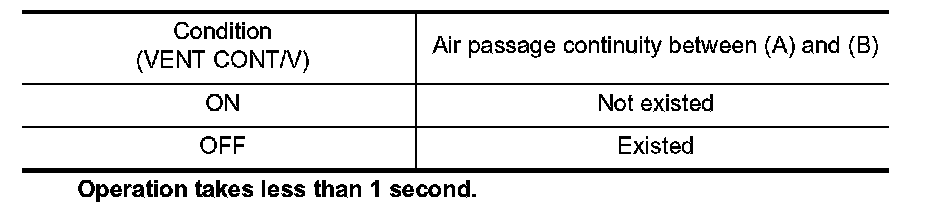

2.Perform "VENT CONTROL/V" in "ACTIVE TEST" mode of "ENGINE" using CONSULT.
3.Check air passage continuity and operation delay time.
Make sure new O-ring is installed properly.
Without CONSULT
1.Clean the air passage [portion (A) to (B)] of EVAP canister vent control valve using an air blower.
2.Check air passage continuity and operation delay time under the following conditions.
Make sure new O-ring is installed properly.
Is the inspection result normal?
YES- INSPECTION END
NO- Replace EVAP canister vent control valve. Exploded View(2WD), Exploded View(AWD).
