P0335

P0335 CKP SENSOR (POS)

DTC Logic

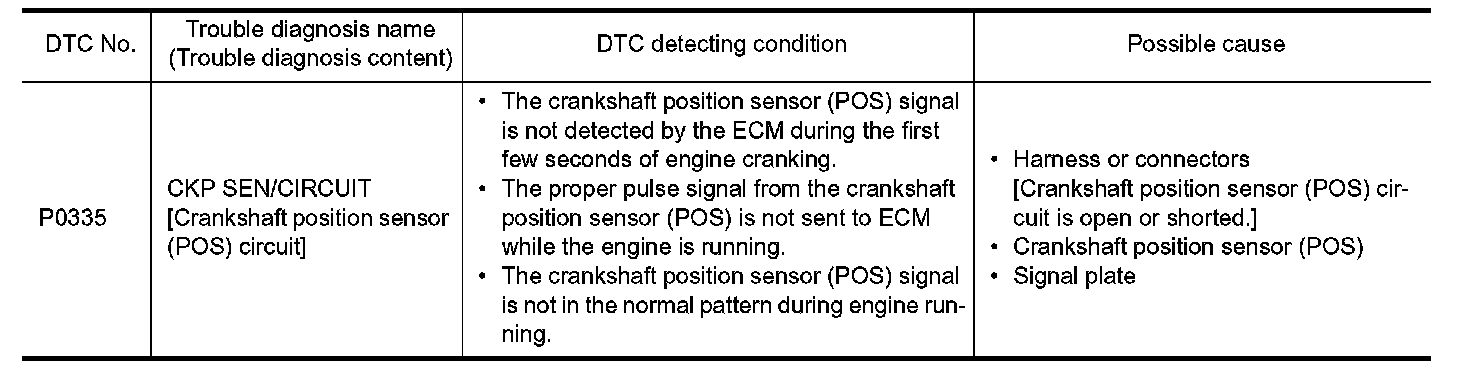

DTC DETECTION LOGIC

NOTE:
If DTC P0340 is displayed with DTC P0643, first perform the trouble diagnosis for DTC P0643.
P0643.






DTC CONFIRMATION PROCEDURE


1. PRECONDITIONING

If DTC Confirmation Procedure has been previously conducted, always perform the following procedure before conducting the next test.
1.Turn ignition switch OFF and wait at least 10 seconds.
2.Turn ignition switch ON.
3.Turn ignition switch OFF and wait at least 10 seconds.

TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 10.5 V with ignition switch ON.

- GO TO 2.

2. PERFORM DTC CONFIRMATION PROCEDURE

1.Start engine and let it idle for at least 5 seconds.
If engine does not start, crank engine for at least 2 seconds.
2.Check 1st trip DTC.
Is 1st trip DTC detected?
YES- Proceed to .
NO- INSPECTION END


Diagnosis Procedure


1. CHECK CRANKSHAFT POSITION (CKP) SENSOR (POS) POWER SUPPLY

1.Disconnect crankshaft position (CKP) sensor (POS) harness connector.
2.Turn ignition switch ON.

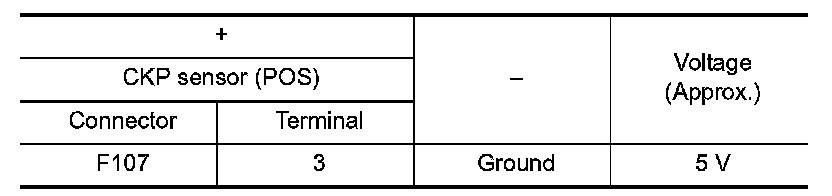

3.Check the voltage between CKP sensor (POS) harness connector and ground.





Is the inspection result normal?
YES- GO TO 3.
NO- GO TO 2.

2. CHECK CKP SENSOR (POS) POWER SUPPLY CIRCUIT

1.Turn ignition switch OFF
2.Disconnect ECM harness connector.

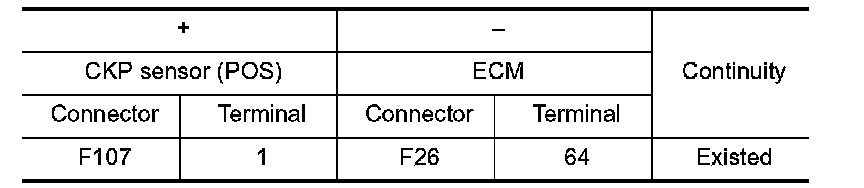

3.Check the continuity between CKP sensor (POS) harness connector and ECM harness connector.





4.Also check harness for short to ground.
Is the inspection result normal?
YES- Perform the trouble diagnosis for power supply circuit.
NO- Repair or replace error-detected parts.

3. CHECK CKP SENSOR (POS) GROUND CIRCUIT

1.Turn ignition switch OFF.
2.Disconnect ECM harness connector.

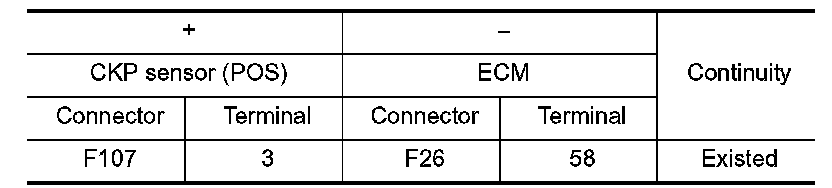

3.Check the continuity between CKP sensor (POS) harness connector and ECM harness connector.





4.Also check harness for short to power.
Is the inspection result normal?
YES- GO TO 4.
NO- Repair or replace error-detected parts.

4. CHECK CKP SENSOR (POS) INPUT SIGNAL CIRCUIT

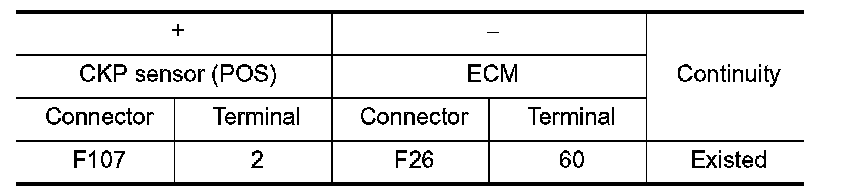

1.Check the continuity between CKP sensor (POS) harness connector and ECM harness connector.





2.Also check harness for short to ground and to power.
Is the inspection result normal?
YES- GO TO 5.
NO- Repair or replace error-detected parts.

5. CHECK CRANKSHAFT POSITION SENSOR (POS)

Check the crankshaft position sensor (POS). .
Is the inspection result normal?
YES- GO TO 6.
NO- Replace crankshaft position sensor (POS). Exploded View.

6. CHECK GEAR TOOTH

1.Remove crankshaft position sensor (POS). Exploded View.

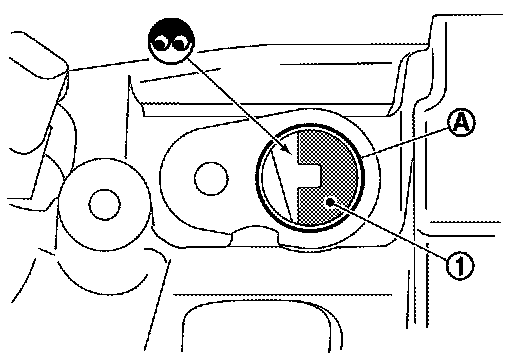

2.Look into the mounting hole (A) of the crankshaft position sensor (POS) to check that there is no missing gear tooth in the signal plate (1).
Is the inspection result normal?
YES- Check intermittent incident. Intermittent Incident.
NO- Replace the signal plate. Exploded View.


Component Inspection


1. CHECK CRANKSHAFT POSITION SENSOR (POS)-I

1.Turn ignition switch OFF.
2.Loosen the fixing bolt of the sensor.
3.Disconnect crankshaft position sensor (POS) harness connector.
4.Remove the sensor.





5.Visually check the sensor for chipping.
Is the inspection result normal?
YES- GO TO 2.
NO- Replace crankshaft position sensor (POS). Exploded View.

2. CHECK CRANKSHAFT POSITION SENSOR (POS)-II

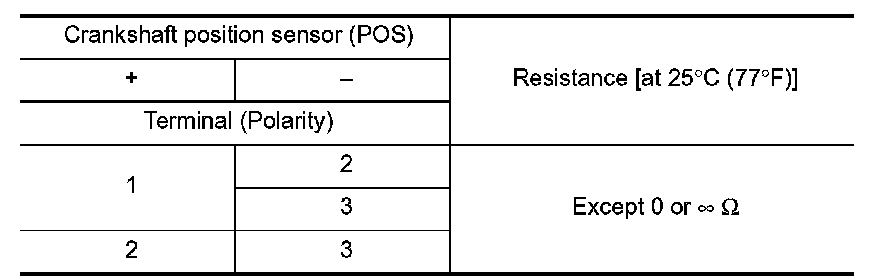

Check the resistance between crankshaft position sensor (POS) terminals as per the following.





Is the inspection result normal?
YES- INSPECTION END
NO- Replace crankshaft position sensor (POS). Exploded View.
