P0234

P0234 TC SYSTEM

DTC Logic

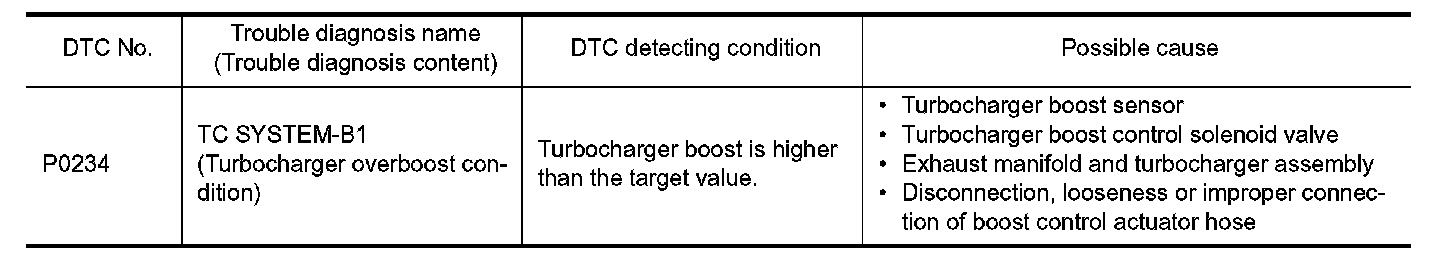

DTC DETECTION LOGIC

NOTE:
If DTC P0234 is displayed with DTC P0237 or P0238, first perform the trouble diagnosis for DTC P0237 or
P0238. P0237.






DTC CONFIRMATION PROCEDURE


1. PERFORM COMPONENT FUNCTION CHECK

Perform component function check. .
NOTE:
Use component function check to check the overall function of the turbocharger system circuit. During this check, DTC might not be confirmed.
Is the inspection result normal?
YES- INSPECTION END
NO- Proceed to .


Component Function Check


1. CHECK BOOST CONTROL ACTUATOR HOSE

Check disconnection, looseness or improper connection of hose between turbocharger boost control solenoid valve and boost control actuator.
Is the inspection result normal?
YES- GO TO 2.
NO- Proceed to .

2. PERFORM COMPONENT FUNCTION CHECK

1.Turn ignition switch OFF.
2.Disconnect turbocharger boost control solenoid valve harness connector.
3.Disconnect of hose between turbocharger boost control solenoid valve and compressor outlet pipe.
4.Install pressure pump to turbocharger boost control solenoid valve.

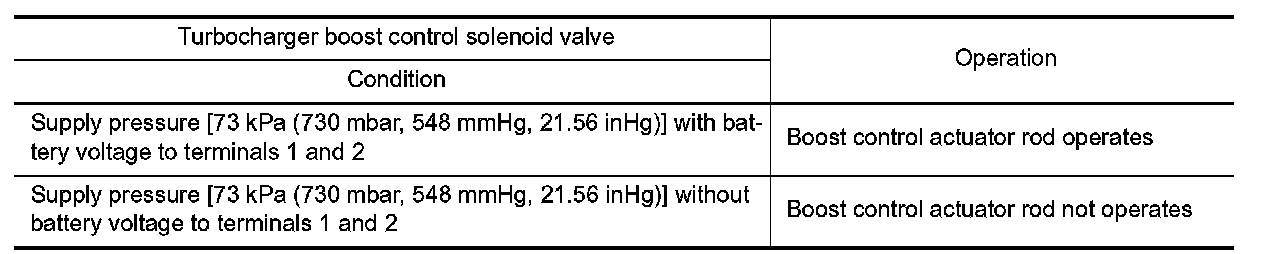

5.Check that the rod of the boost control actuator activates when supplying pressure and battery voltage to the turbocharger boost control solenoid valve as per the following conditions.






CAUTION:
Do not supply pressure over 83 kPa (830 mbar, 623 mmHg, 24.51 inHg)
Is the inspection result normal?
YES- INSPECTION END
NO- Proceed to .


Diagnosis Procedure


1. CHECK BOOST CONTROL ACTUATOR HOSE

Check disconnection, looseness or improper connection of hose between turbocharger boost control solenoid valve and boost control actuator.
Is the inspection result normal?
YES- GO TO 2.
NO- Repair or replace error-detected parts.

2. CHECK TURBOCHARGER BOOST CONTROL SOLENOID VALVE POWER SUPPLY

1.Turn ignition switch OFF.
2.Disconnect turbocharger boost control solenoid valve harness connector.
3.Turn ignition switch ON.

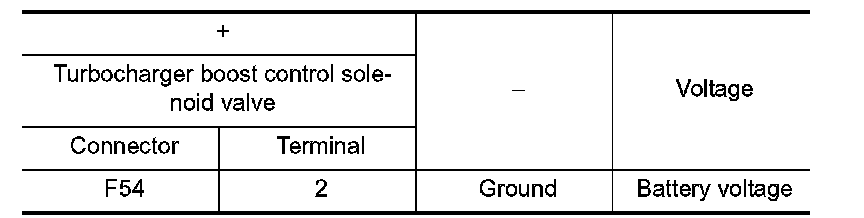

4.Check the voltage between turbocharger boost control solenoid valve harness connector and ground.





Is the inspection result normal?
YES- GO TO 4.
NO- GO TO 3.

3. CHECK TURBOCHARGER BOOST CONTROL SOLENOID VALVE POWER SUPPLY CIRCUIT

1.Turn ignition switch OFF.
2.Disconnect IPDM E/R harness connector.

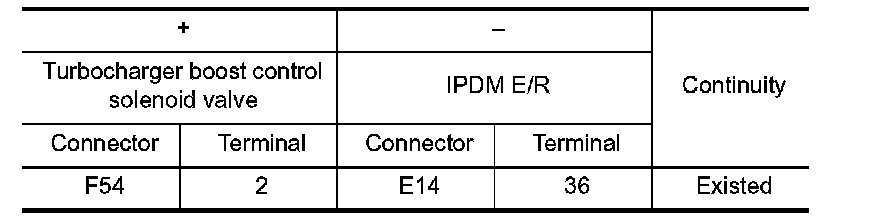

3.Check the continuity between turbocharger boost control solenoid valve harness connector and IPDM E/R
harness connector.





4.Also check harness for short to ground and short.
Is the inspection result normal?
YES- Perform the trouble diagnosis for power supply circuit.
NO- Repair or replace error-detected parts.

4. CHECK TURBOCHARGER BOOST CONTROL SOLENOID VALVE OUTPUT SIGNAL CIRCUIT

1.Turn ignition switch OFF.
2.Disconnect ECM harness connector.

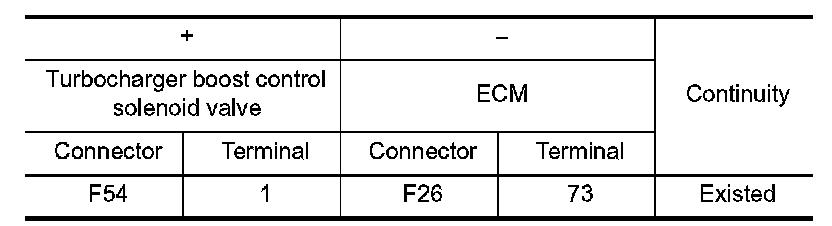

3.Check the continuity between turbocharger boost control solenoid valve harness connector and ECM harness connector.





4.Also check harness for short to power.
Is the inspection result normal?
YES- GO TO 5.
NO- Repair or replace error-detected parts.

5. CHECK TURBOCHARGER BOOST CONTROL SOLENOID VALVE

Check the turbocharger boost control solenoid valve. P0045.
Is the inspection result normal?
YES- GO TO 6.
NO- Replace turbocharger boost control solenoid valve. Exploded View.

6. CHECK BOOST CONTROL ACTUATOR

Check the boost control actuator. Inspection.
Is the inspection result normal?
YES- GO TO 7.
NO- Replace exhaust manifold and turbocharger assembly. Exploded View.

7. CHECK TURBOCHARGER BOOST SENSOR

Check the turbocharger boost sensor. P0237.
Is the inspection result normal?
YES- Check intermittent incident. Intermittent Incident.
NO- Replace turbocharger boost sensor. Exploded View.
