P0183

P0182, P0183 FTT SENSOR

DTC Logic


DTC DETECTION LOGIC







DTC CONFIRMATION PROCEDURE


1. PRECONDITIONING

If DTC Confirmation Procedure has been previously conducted, always perform the following procedure before conducting the next test.
1.Turn ignition switch OFF and wait at least 10 seconds.
2.Turn ignition switch ON.
3.Turn ignition switch OFF and wait at least 10 seconds.
- GO TO 2.

2. PERFORM DTC CONFIRMATION PROCEDURE

1.Turn ignition switch ON and wait at least 5 seconds.
2.Check 1st trip DTC.
Is 1st trip DTC detected?
YES- Proceed to .
NO- INSPECTION END


Diagnosis Procedure


1. CHECK DTC WITH COMBINATION METER

Scan Tool Testing and Procedures.
Is the inspection result normal?
YES- GO TO 2.
NO- Proceed to Fuel Level Sensor Signal Circuit.

2. CHECK FUEL TANK TEMPERATURE (FTT) SENSOR POWER SUPPLY

1.Turn ignition switch OFF.
2.Disconnect fuel level sensor unit and fuel pump harness connector.
3.Turn ignition switch ON.

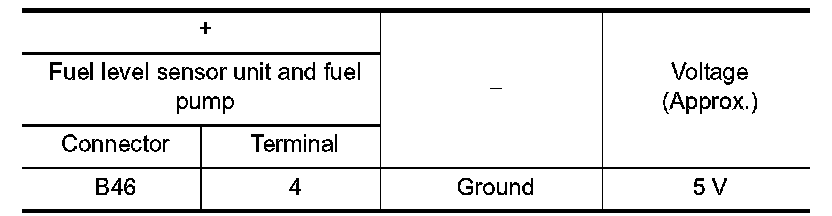

4.Check the voltage between fuel level sensor unit and fuel pump harness connector and ground.





Is the inspection result normal?
YES- GO TO 4.
NO- GO TO 3.

3. CHECK FUEL TANK TEMPERATURE (FTT) SENSOR POWER SUPPLY CIRCUIT

1.Turn ignition switch OFF.
2.Disconnect ECM harness connector.

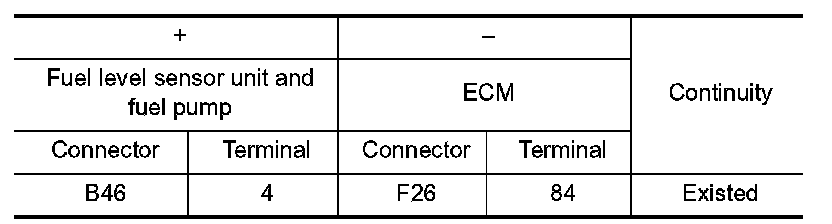

3.Check the continuity between fuel level sensor unit and fuel pump harness connector and ECM harness connector.





4.Also check harness for short to ground and to power.
Is the inspection result normal?
YES- Perform the trouble diagnosis for power supply circuit.
NO- Repair or replace error-detected parts.

4. CHECK FUEL TANK TEMPERATURE (FTT) SENSOR GROUND CIRCUIT

1.Turn ignition switch OFF.
2.Disconnect combination meter harness connector.

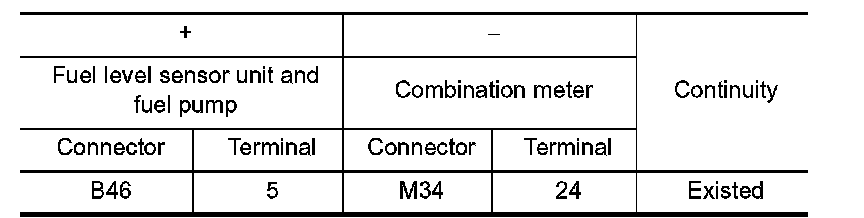

3.Check the continuity between fuel level sensor unit and fuel pump harness connector and combination meter harness connector.





4.Also check harness for short to power.
Is the inspection result normal?
YES- GO TO 5.
NO- Repair or replace error-detected parts.

5. CHECK FUEL TANK TEMPERATURE (FTT) SENSOR

Check the FTT sensor. .
Is the inspection result normal?
YES- Check intermittent incident. Intermittent Incident.
NO- Replace "fuel level sensor unit and fuel pump". Exploded View(2WD), Exploded View(AWD).


Component Inspection


1. CHECK FUEL TANK TEMPERATURE (FTT) SENSOR

1.Turn ignition switch OFF.
2.Disconnect fuel level sensor unit and fuel pump harness connector.
3.Remove fuel level sensor unit. Exploded View(2WD), "AWD : Exploded
View"(AWD).

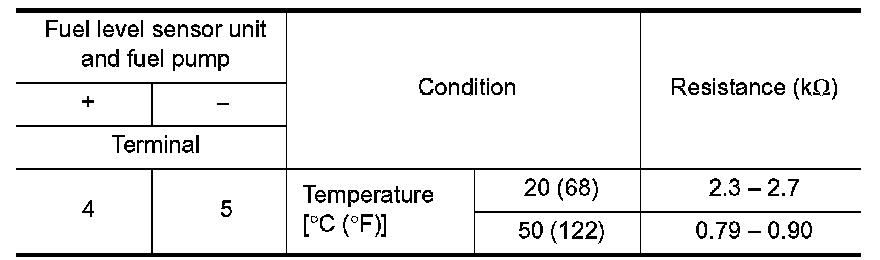

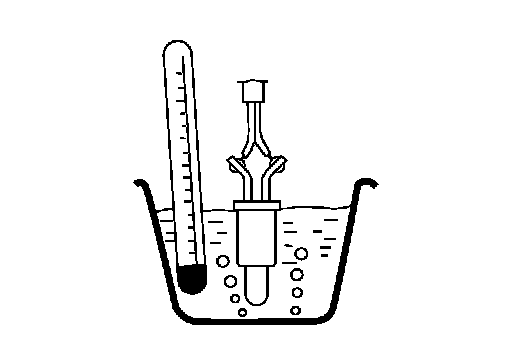

4.Check resistance between fuel level sensor unit and fuel pump terminals by heating with hot water as shown in the figure.





Is the inspection result normal?
YES- INSPECTION END
NO- Replace fuel level sensor unit and fuel pump. Exploded View.
