P0117

P0117, P0118 ECT SENSOR

DTC Logic

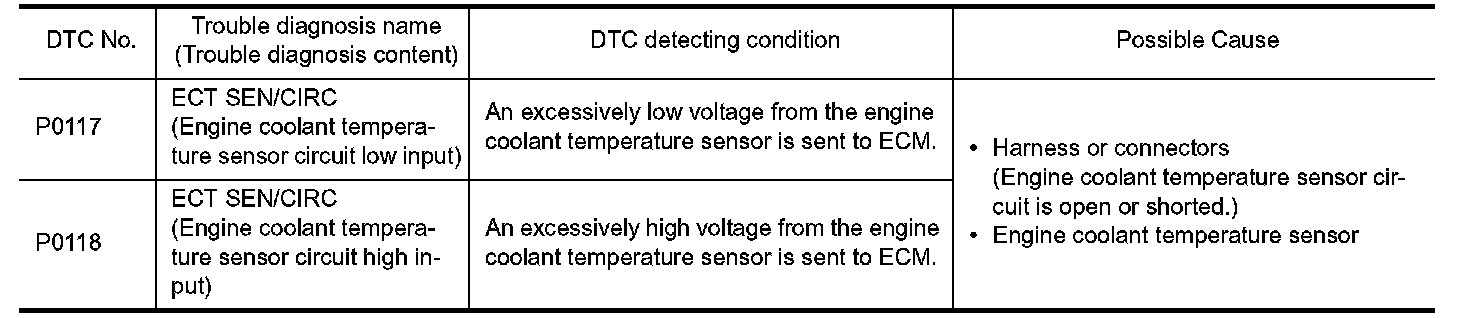

DTC DETECTION LOGIC







DTC CONFIRMATION PROCEDURE


1. PRECONDITIONING

If DTC Confirmation Procedure has been previously conducted, always perform the following procedure before conducting the next test.
1.Turn ignition switch OFF and wait at least 10 seconds.
2.Turn ignition switch ON.
3.Turn ignition switch OFF and wait at least 10 seconds.
- GO TO 2.

2. PERFORM DTC CONFIRMATION PROCEDURE

1.Turn ignition switch ON and wait at least 5 seconds.
2.Check DTC.
Is DTC detected?
YES- Proceed to .
NO- INSPECTION END


Diagnosis Procedure


1. CHECK ENGINE COOLANT TEMPERATURE SENSOR POWER SUPPLY

1.Turn ignition switch OFF.
2.Disconnect engine coolant temperature (ECT) sensor harness connector.
3.Turn ignition switch ON.
4.Check the voltage between ECT sensor harness connector and ground.





Is the inspection result normal?
YES- GO TO 3.
NO- GO TO 2.

2. CHECK ENGINE COOLANT TEMPERATURE SENSOR POWER SUPPLY CIRCUIT

1.Turn ignition switch OFF.
2.Disconnect ECM harness connector.

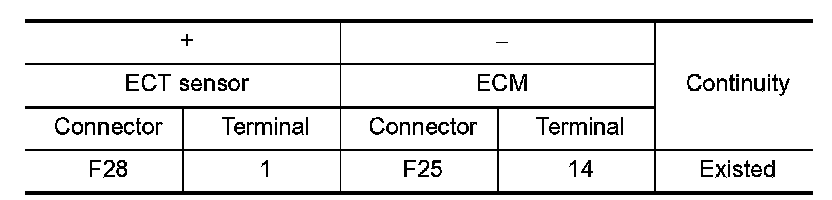

3.Check the continuity between ECT sensor harness connector and ECM harness connector.





4.Also check harness for short to ground.
Is the inspection result normal?
YES- Perform the trouble diagnosis for power supply circuit.
NO- Repair or replace error-detected parts.

3. CHECK ENGINE COOLANT TEMPERATURE SENSOR GROUND CIRCUIT

1.Turn ignition switch OFF.
2.Disconnect ECM harness connector.

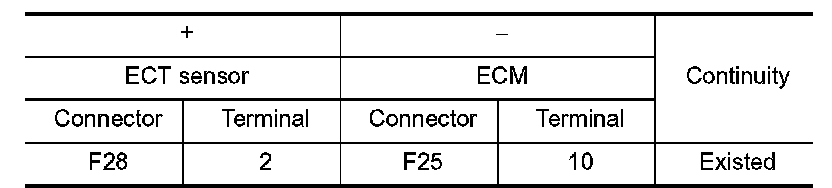

3.Check the continuity between ECT sensor harness connector and ECM harness connector.





4.Also check harness for short to ground to power.
Is the inspection result normal?
YES- GO TO 4.
NO- Repair or replace error-detected parts.

4. CHECK ENGINE COOLANT TEMPERATURE SENSOR

Check the engine coolant temperature sensor. P0116.
Is the inspection result normal?
YES- Check intermittent incident. Intermittent Incident.
NO- Replace engine coolant temperature sensor. Exploded View.


Component Inspection


1. CHECK ENGINE COOLANT TEMPERATURE (ECT) SENSOR

1.Turn ignition switch OFF.
2.Disconnect ECT sensor harness connector.
3.Remove ECT sensor.

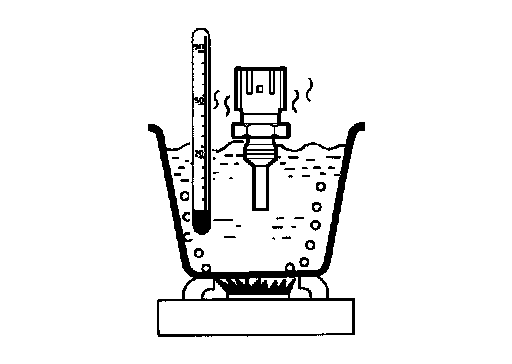

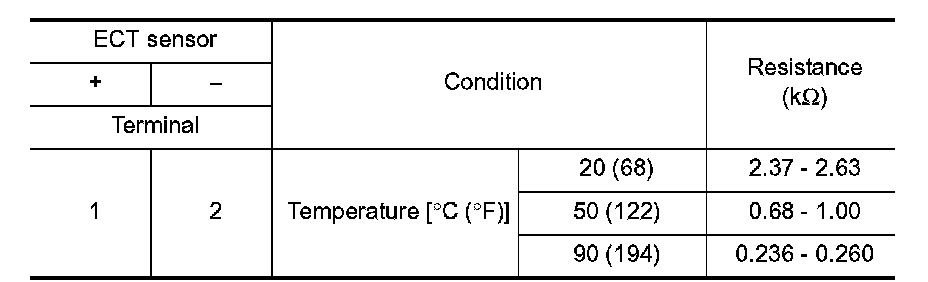

4.Check resistance between ECT sensor terminals by heating with hot water as shown in the figure.





Is the inspection result normal?
YES- INSPECTION END
NO- Replace engine coolant temperature sensor. Exploded View.
