P0113

P0112, P0113 IAT SENSOR 1

DTC Logic

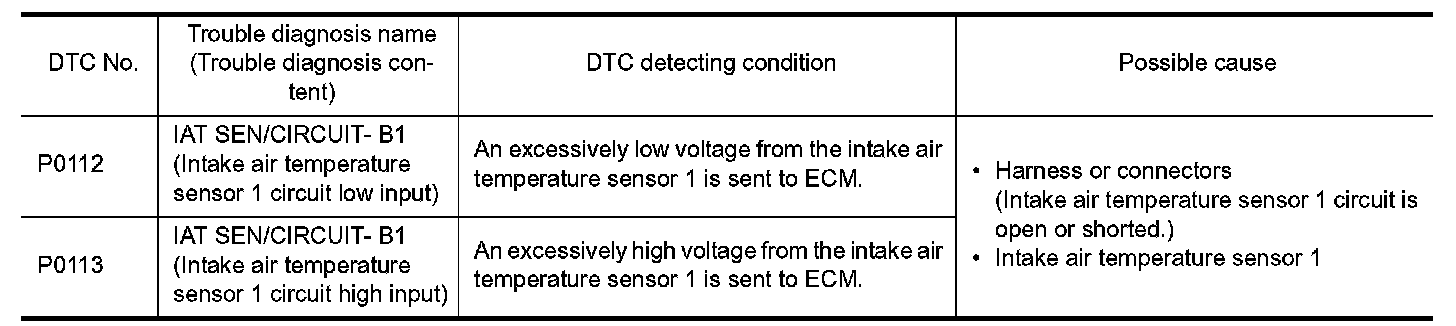

DTC DETECTION LOGIC







DTC CONFIRMATION PROCEDURE


1. PRECONDITIONING

If DTC Confirmation Procedure has been previously conducted, always perform the following procedure before conducting the next test.
1.Turn ignition switch OFF and wait at least 10 seconds.
2.Turn ignition switch ON.
3.Turn ignition switch OFF and wait at least 10 seconds.
- GO TO 2.

2. PERFORM DTC CONFIRMATION PROCEDURE

1.Turn ignition switch ON and wait at least 5 seconds.
2.Check 1st trip DTC.
Is 1st trip DTC detected?
YES- Proceed to .
NO- INSPECTION END


Diagnosis Procedure


1. CHECK INTAKE AIR TEMPERATURE SENSOR 1 POWER SUPPLY

1.Turn ignition switch OFF.
2.Disconnect mass air flow sensor (with intake air temperature sensor 1) harness connector.
3.Turn ignition switch ON.
4.Check the voltage between mass air flow sensor harness connector and ground.





Is the inspection result normal?
YES- GO TO 3.
NO- GO TO 2.

2. CHECK INTAKE AIR TEMPERATURE SENSOR 1 POWER SUPPLY CIRCUIT

1.Turn ignition switch OFF.
2.Disconnect ECM harness connector.

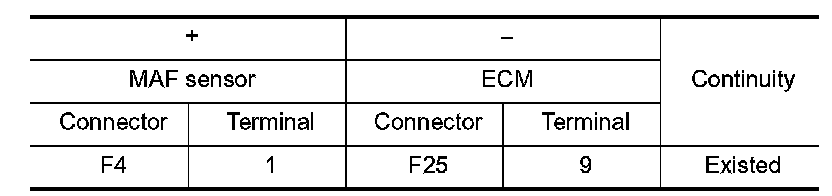

3.Check the continuity between mass air flow sensor harness connector and ECM harness connector.





4.Also check harness for short to ground.
Is the inspection result normal?
YES- Perform the trouble diagnosis for power supply circuit.
NO- Repair or replace error-detected parts.

3. CHECK INTAKE AIR TEMPERATURE SENSOR 1 GROUND CIRCUIT

1.Turn ignition switch OFF.
2.Disconnect ECM harness connector.

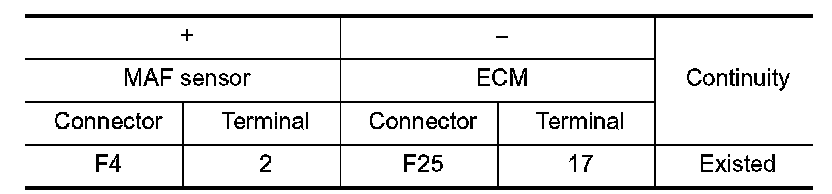

3.Check the continuity between mass air flow sensor harness connector and ECM harness connector.





4.Also check harness for short to power.
Is the inspection result normal?
YES- GO TO 4.
NO- Repair or replace error-detected parts.

4. CHECK INTAKE AIR TEMPERATURE SENSOR 1

Check the intake air temperature sensor 1. .
Is the inspection result normal?
YES- Check intermittent incident. Intermittent Incident.
NO- Replace mass air flow sensor (with intake air temperature sensor 1). Exploded View.


Component Inspection


1. CHECK INTAKE AIR TEMPERATURE SENSOR 1

1.Turn ignition switch OFF.
2.Disconnect mass air flow sensor harness connector.

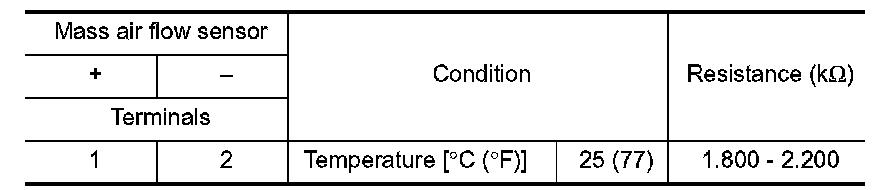

3.Check resistance between mass air flow sensor terminals as per the following.





Is the inspection result normal?
YES- INSPECTION END
NO- Replace mass air flow sensor (with intake air temperature sensor 1). Exploded View.
