P0103
P0102, P0103 MAF SENSOR
DTC Logic

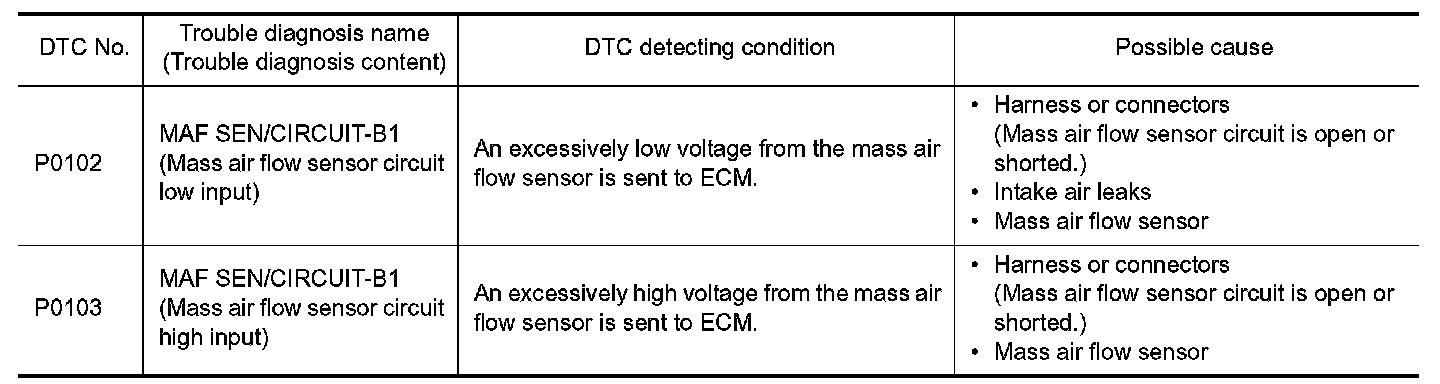

DTC DETECTION LOGIC
DTC CONFIRMATION PROCEDURE
1. PRECONDITIONING
If DTC Confirmation Procedure has been previously conducted, always perform the following procedure before conducting the next test.
1.Turn ignition switch OFF and wait at least 10 seconds.
2.Turn ignition switch ON.
3.Turn ignition switch OFF and wait at least 10 seconds.
Which DTC is detected?
P0102- GO TO 2.
P0103- GO TO 3.
2. PERFORM DTC CONFIRMATION PROCEDURE FOR DTC P0102
1.Start engine and wait at least 5 seconds.
2.Check DTC.
Is DTC detected?
YES- Proceed to .
NO- INSPECTION END
3. PERFORM DTC CONFIRMATION PROCEDURE FOR DTC P0103-I
1.Turn ignition switch ON and wait at least 5 seconds.
2.Check DTC.
Is DTC detected?
YES- Proceed to .
NO- GO TO 4.
4. PERFORM DTC CONFIRMATION PROCEDURE FOR DTC P0103-II
1.Start engine and wait at least 5 seconds.
2.Check DTC.
Is DTC detected?
YES- Proceed to .
NO- INSPECTION END
Diagnosis Procedure
1. INSPECTION START
Confirm the detected DTC.
Which DTC is detected?
P0102- GO TO 2.
P0103- GO TO 3.
2. CHECK INTAKE SYSTEM
Check the following for connection.
- Air duct
- Vacuum hoses
- Intake air passage between air duct to intake manifold
Is the inspection result normal?
YES- GO TO 3.
NO- Reconnect the parts. Exploded View.
3. CHECK MAF SENSOR POWER SUPPLY
1.Turn ignition switch OFF.
2.Disconnect mass air flow (MAF) sensor harness connector.
3.Turn ignition switch ON.
4.Check the voltage between MAF sensor harness connector and ground.
Is the inspection result normal?
YES- GO TO 5.
NO- GO TO 4.
4. CHECK MAF SENSOR POWER SUPPLY CIRCUIT
1.Turn ignition switch OFF.
2.Disconnect IPDM E/R harness connector.

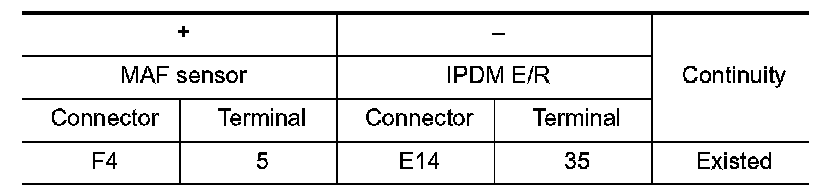

3.Check the continuity between MAF sensor harness connector and IPDM E/R harness connector.
4.Also check harness for short to ground.
Is the inspection result normal?
YES- Perform the trouble diagnosis for power supply circuit.
NO- Repair or replace error-detected parts.
5. CHECK MAF SENSOR GROUND CIRCUIT
1.Turn ignition switch OFF.
2.Disconnect ECM harness connector.

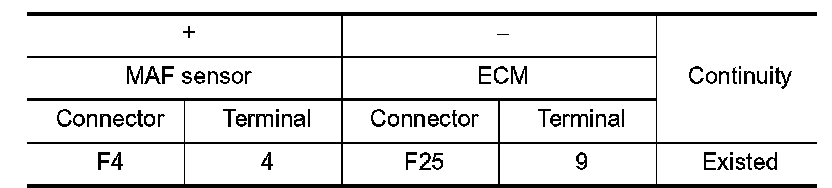

3.Check the continuity between MAF sensor harness connector and ECM harness connector.
Is the inspection result normal?
YES- GO TO 6.
NO- Repair or replace error-detected parts.
6. CHECK MAF SENSOR INPUT SIGNAL CIRCUIT

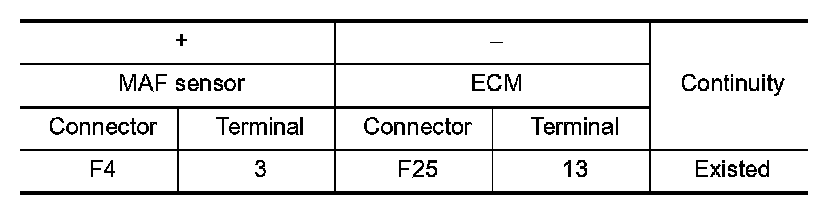

1.Check the continuity between MAF sensor harness connector and ECM harness connector.
2.Also check harness for short to ground and to power.
Is the inspection result normal?
YES- GO TO 7.
NO- Repair open circuit or short to ground or short to power in harness or connectors.
7. CHECK MAF SENSOR
Check the MAF sensor. P0101.
Is the inspection result normal?
YES- Check intermittent incident. Intermittent Incident.
NO- Replace mass air flow sensor. Exploded View.
Component Inspection
1. CHECK MASS AIR FLOW SENSOR-I
With CONSULT
1.Turn ignition switch OFF.
2.Reconnect all harness connectors disconnected.
3.Start engine and warm it up to normal operating temperature.
4.Connect CONSULT and select "DATA MONITOR" mode of "ENGINE".

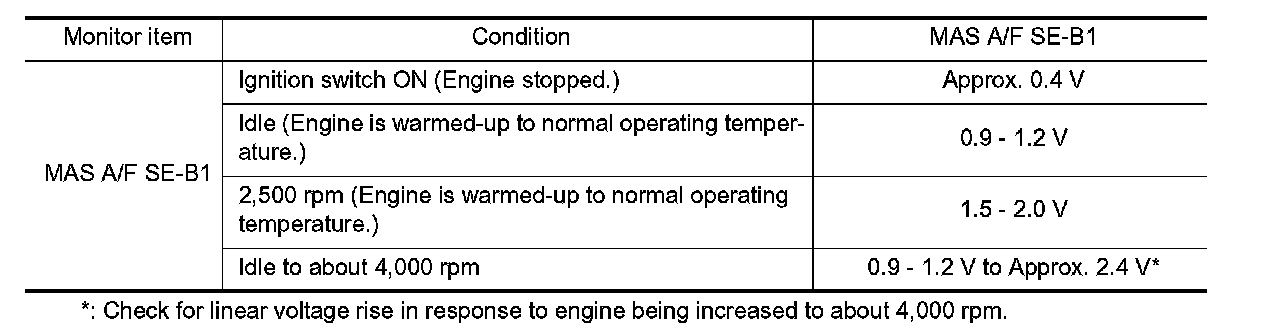

5.Select "MAS A/F SE-B1" and check indication.
Without CONSULT
1.Turn ignition switch OFF.
2.Reconnect all harness connectors disconnected.
3.Start engine and warm it up to normal operating temperature.

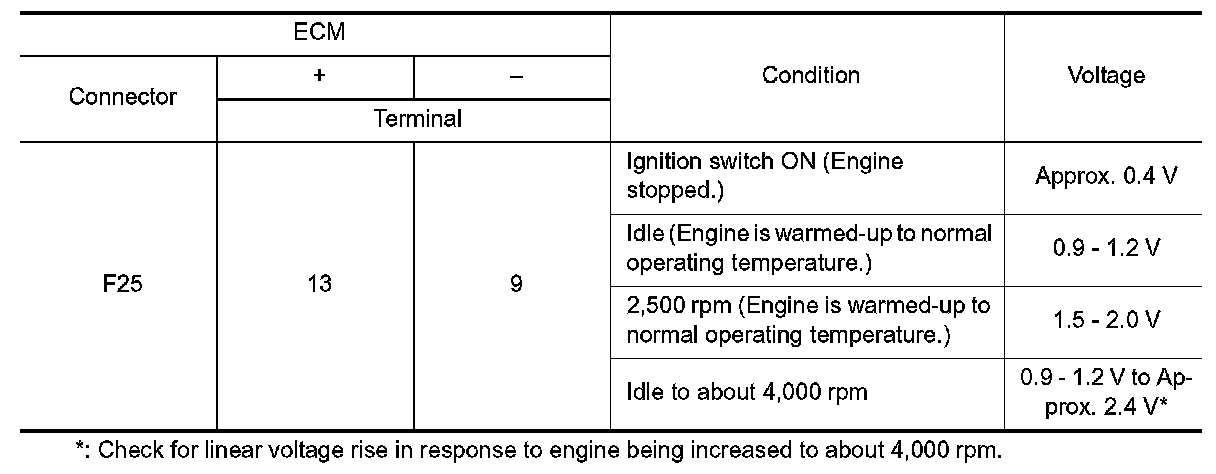

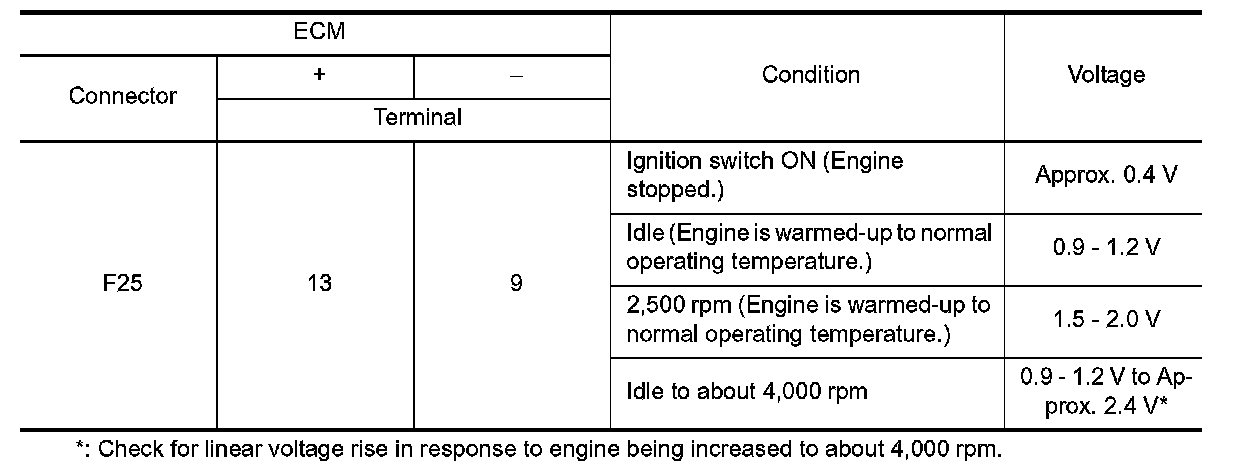

4.Check the voltage between ECM harness connector and ground.
Is the inspection result normal?
YES- INSPECTION END
NO- GO TO 2.
2. CHECK FOR THE CAUSE OF UNEVEN AIR FLOW THROUGH MASS AIR FLOW SENSOR
1.Turn ignition switch OFF.
2.Check for the cause of uneven air flow through mass air flow sensor. Refer to the following.
-Crushed air ducts
-Malfunctioning seal of air cleaner element
-Uneven dirt of air cleaner element
-Improper specification of intake air system parts
Is the inspection result normal?
YES- GO TO 4.
NO- GO TO 3.
3. CHECK MASS AIR FLOW SENSOR-II
With CONSULT
1.Repair or replace malfunctioning part.
2.Start engine and warm it up to normal operating temperature.
3.Connect CONSULT and select "DATA MONITOR" mode of "ENGINE".

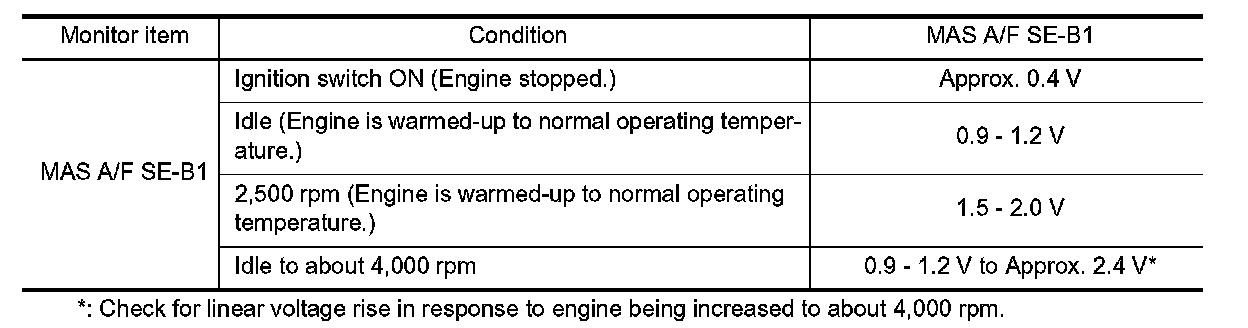

4.Select "MAS A/F SE-B1" and check indication.
Without CONSULT
1.Repair or replace malfunctioning part.
2.Start engine and warm it up to normal operating temperature.

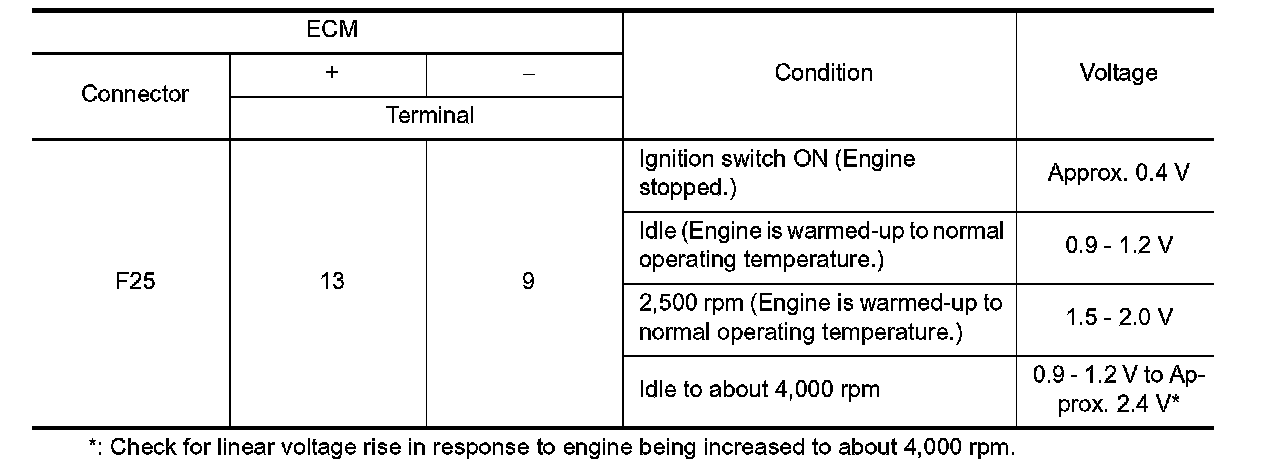

3.Check the voltage between ECM harness connector and ground.
Is the inspection result normal?
YES- INSPECTION END
NO- GO TO 4.
4. CHECK MASS AIR FLOW SENSOR-III
With CONSULT
1.Turn ignition switch OFF.
2.Disconnect mass air flow sensor harness connector and reconnect it again.
3.Start engine and warm it up to normal operating temperature.
4.Connect CONSULT and select "DATA MONITOR" mode of "ENGINE".

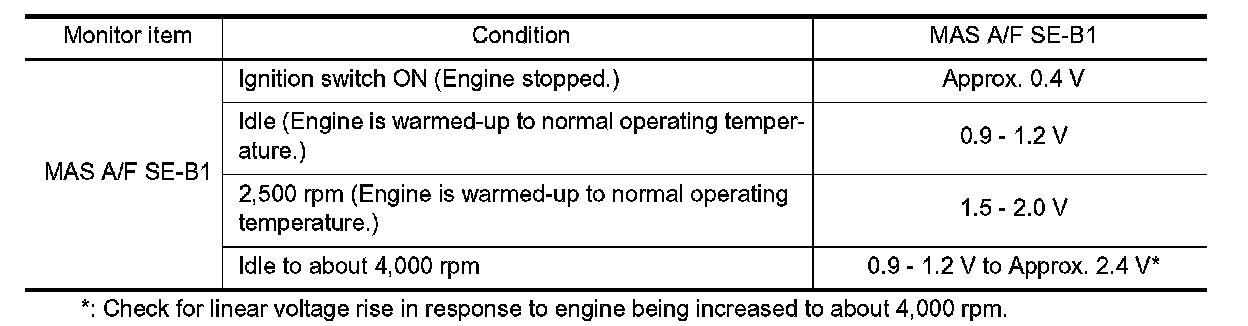

5.Select "MAS A/F SE-B1" and check indication.
Without CONSULT
1.Turn ignition switch OFF.
2.Disconnect mass air flow sensor harness connector and reconnect it again.
3.Start engine and warm it up to normal operating temperature.
4.Check the voltage between ECM harness connector and ground.
Is the inspection result normal?
YES- INSPECTION END
NO- Clean or replace mass air flow sensor. Exploded View.
