P0045

P0045, P0047, P0048 TC BOOST CONTROL SOLENOID VALVE

DTC Logic

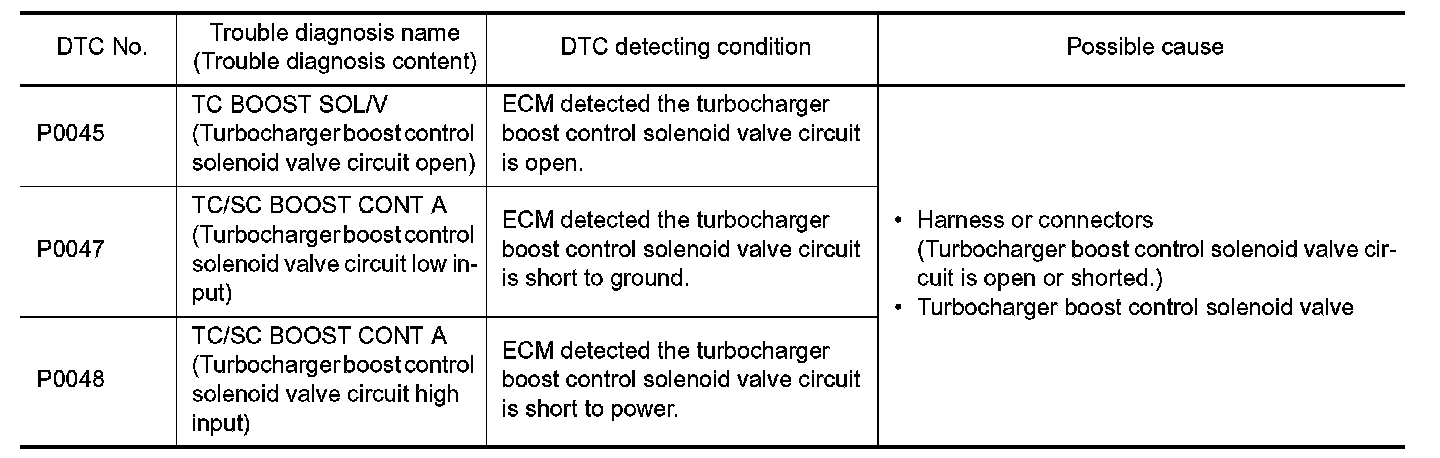

DTC DETECTION LOGIC







DTC CONFIRMATION PROCEDURE


1. PRECONDITIONING

If DTC Confirmation Procedure has been previously conducted, always perform the following procedure before conducting the next test.
1.Turn ignition switch OFF and wait at least 10 seconds.
2.Turn ignition switch ON.
3.Turn ignition switch OFF and wait at least 10 seconds.
- GO TO 2.

2. PERFORM DTC CONFIRMATION PROCEDURE

1.Turn ignition switch ON and wait at least 5 seconds.
2.Check 1st trip DTC.
Is 1st trip DTC detected?
YES- Proceed to .
NO- INSPECTION END


Diagnosis Procedure


1. CHECK TURBOCHARGER BOOST CONTROL SOLENOID VALVE POWER SUPPLY

1.Turn ignition switch OFF.
2.Disconnect turbocharger boost control solenoid valve harness connector.
3.Turn ignition switch ON.

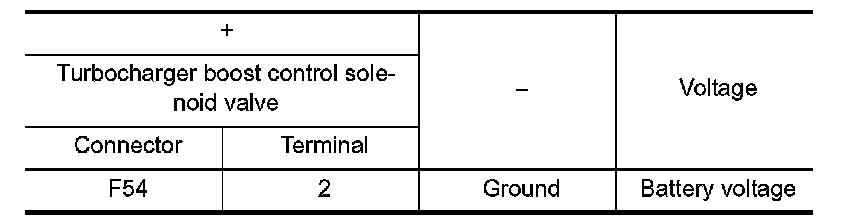

4.Check the voltage between turbocharger boost control solenoid valve harness connector and ground.





Is the inspection result normal?
YES- GO TO 3.
NO- GO TO 2.

2. CHECK TURBOCHARGER BOOST CONTROL SOLENOID VALVE POWER SUPPLY CIRCUIT

1.Turn ignition switch OFF.
2.Disconnect IPDM E/R harness connector.

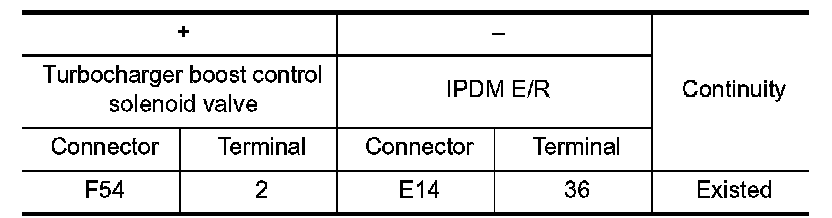

3.Check the continuity between turbocharger boost control solenoid valve harness connector and IPDM E/R
harness connector.





4.Also check harness for short to ground.
Is the inspection result normal?
YES- Perform the trouble diagnosis for power supply circuit.
NO- Repair or replace error-detected parts.

3. CHECK TURBOCHARGER BOOST CONTROL SOLENOID VALVE OUTPUT SIGNAL CIRCUIT

1.Turn ignition switch OFF.
2.Disconnect ECM harness connector.
3.Check the continuity between turbocharger boost control solenoid valve harness connector and ECM harness connector.





4. Also check harness for short to ground and to power.
Is the inspection result normal?
YES- GO TO 4.
NO- Repair or replace error-detected parts.

4. CHECK TURBOCHARGER BOOST CONTROL SOLENOID VALVE

Check the turbocharger boost control solenoid valve. .
Is the inspection result normal?
YES- Check intermittent incident. Intermittent Incident.
NO- Replace turbocharger boost control solenoid valve. Exploded View.


Component Inspection


1. CHECK TURBOCHARGER BOOST CONTROL SOLENOID VALVE

1.Turn ignition switch OFF
2.Disconnect turbocharger boost control solenoid valve harness connector.
3.Disconnect hoses connected to turbocharger boost control solenoid valve.

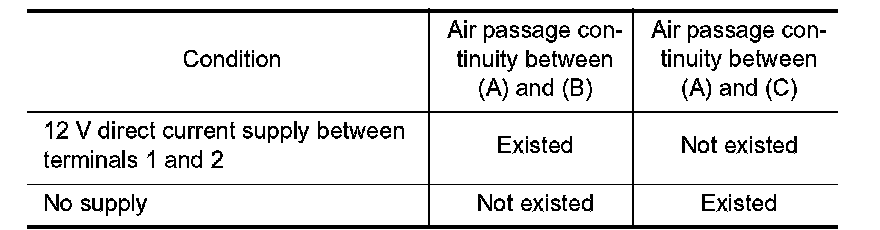

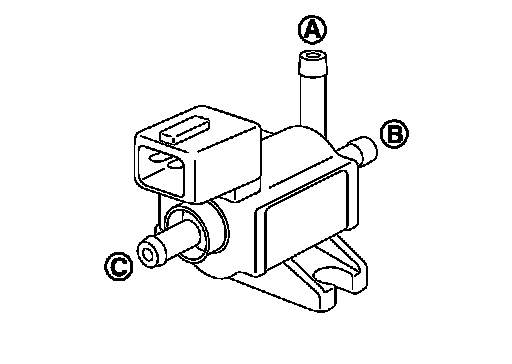

4.Check air passage continuity of turbocharger boost control solenoid valve as per the following conditions.





Is the inspection result normal?
YES- INSPECTION END
NO- Replace turbocharger boost control solenoid valve. Exploded View.
