P0037

P0037, P0038 HO2S2 HEATER

DTC Logic

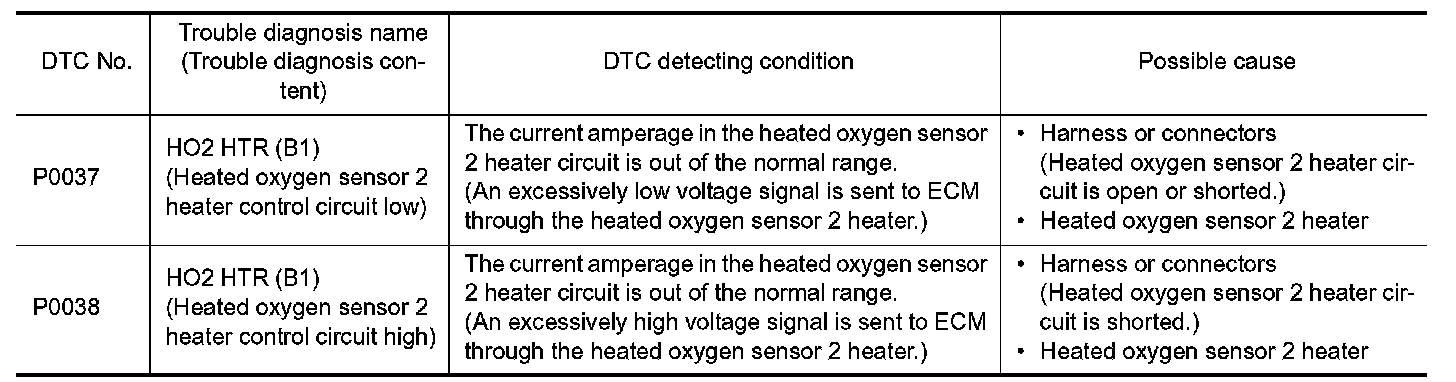

DTC DETECTION LOGIC







DTC CONFIRMATION PROCEDURE


1. PRECONDITIONING

If DTC Confirmation Procedure has been previously conducted, always perform the following procedure before conducting the next test.
1.Turn ignition switch OFF and wait at least 10 seconds.
2.Turn ignition switch ON.
3.Turn ignition switch OFF and wait at least 10 seconds.

TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 11 V at idle.

- GO TO 2.

2. PERFORM DTC CONFIRMATION PROCEDURE

With CONSULT
1.Turn ignition switch ON and select "DATA MONITOR" mode of "ENGINE" using CONSULT.
2.Start engine and warm it up to normal operating temperature.
3.Turn ignition switch OFF and wait at least 10 seconds.
4.Start engine and keep the engine speed between 3,500 and 4,000 rpm for at least 1 minute under no load.
5.Let engine idle for 1 minute.
6.Check 1st trip DTC.
With GST
Follow the procedure "With CONSULT" above.
Is 1st trip DTC detected?
YES- Proceed to .
NO- INSPECTION END


Diagnosis Procedure


1. CHECK HO2S2 POWER SUPPLY CIRCUIT

1.Turn ignition switch OFF.
2.Disconnect heated oxygen sensor 2 (HO-2S2) harness connector.
3.Turn ignition switch ON.

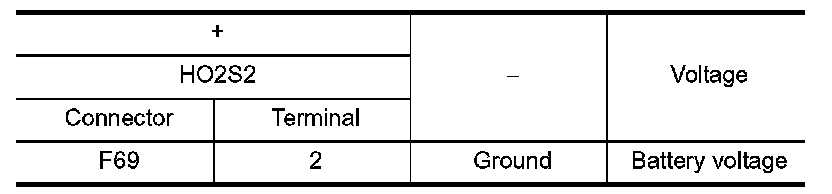

4.Check the voltage between HO-2S2 harness connector and ground.





Is the inspection result normal?
YES- GO TO 2.
NO- Repair or replace error-detected parts.

2. CHECK HO2S2 OUTPUT SIGNAL CIRCUIT

1.Turn ignition switch OFF.
2.Disconnect ECM harness connector.

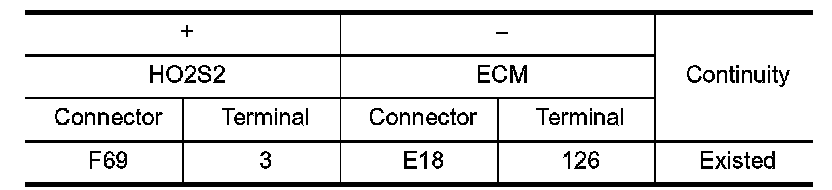

3.Check the continuity between HO-2S2 harness connector and ECM harness connector.





4.Also check harness for short to ground and short to power.
Is the inspection result normal?
YES- GO TO 3.
NO- Repair or replace error-detected parts.

3. CHECK HEATED OXYGEN SENSOR 2 HEATER

Check the heated oxygen sensor 2 heater. .
Is the inspection result normal?
YES- Check intermittent incident. Intermittent Incident.
NO- GO TO 4.

4. REPLACE HEATED OXYGEN SENSOR 2

Replace heated oxygen sensor 2. Exploded View.

CAUTION:
- Discard any sensor which has been dropped from a height of more than 0.5 m (19.7 in) onto a hard surface such as a concrete floor; use a new one.
- Before installing new sensor, clean exhaust system threads using Oxygen Sensor Thread Cleaner
[commercial service tool (J-43897-18 or J43897-12)] and approved Anti-seize Lubricant (commercial service tool).
- INSPECTION END


Component Inspection


1. CHECK HEATED OXYGEN SENSOR 2 HEATER

1.Turn ignition switch OFF.
2.Disconnect heated oxygen sensor 2 (HO-2S2) harness connector.

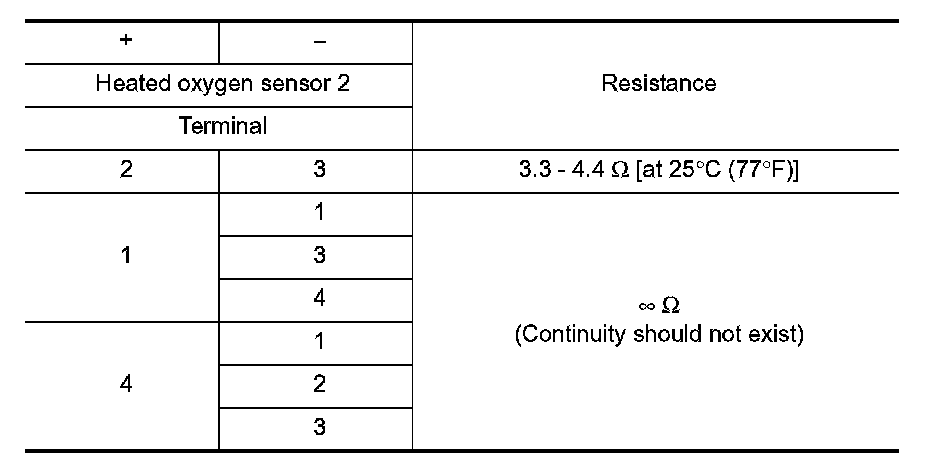

3.Check resistance between HO-2S2 terminals as per the following.





Is the inspection result normal?
YES- INSPECTION END
NO- GO TO 2.

2. REPLACE HEATED OXYGEN SENSOR 2

Replace heated oxygen sensor 2. Exploded View.

CAUTION:
- Discard any sensor which has been dropped from a height of more than 0.5 m (19.7 in) onto a hard surface such as a concrete floor; use a new one.
- Before installing new sensor, clean exhaust system threads using Oxygen Sensor Thread Cleaner
[commercial service tool (J-43897-18 or J43897-12)] and approved Anti-seize Lubricant (commercial service tool).
- INSPECTION END
