A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
DTC Priorities for Troubleshooting
>>
A/T Control System
A/T Control System
TCM

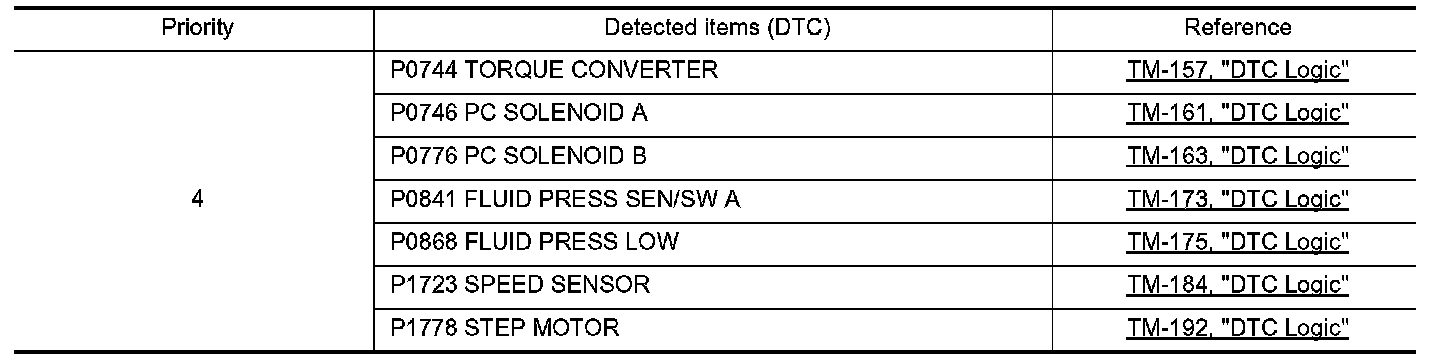

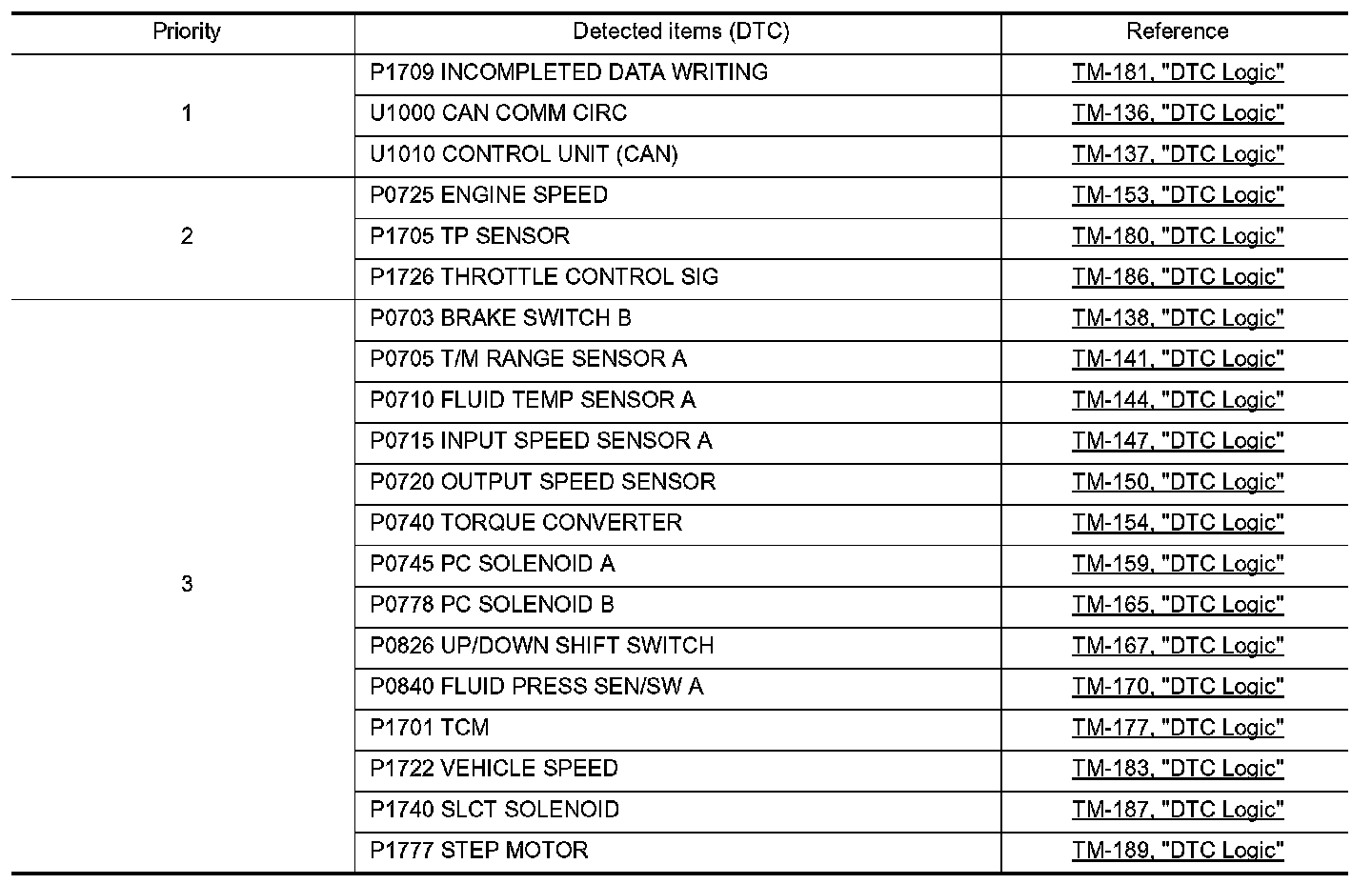

DTC Inspection Priority Chart
If some DTCs are displayed at the same time, perform inspections one by one based on the following priority chart.
