C1735

C1735 IGN CIRCUIT OPEN

DTC Logic

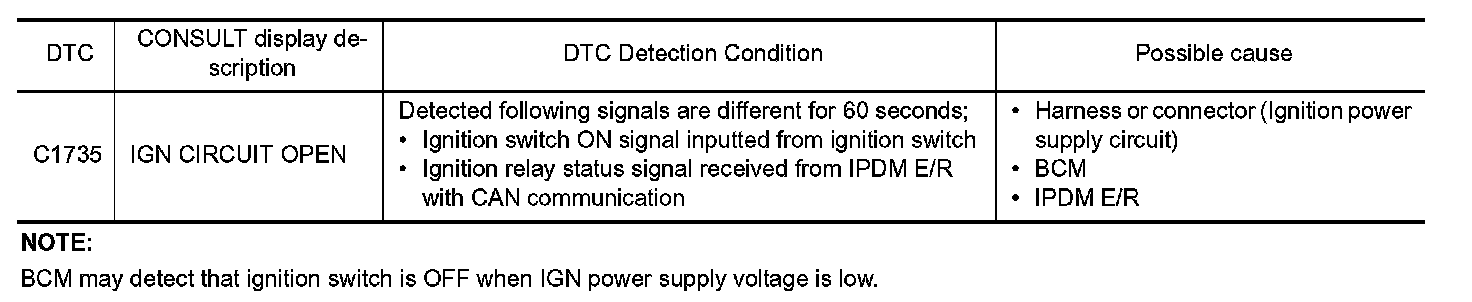

DTC DETECTION LOGIC







DTC CONFIRMATION PROCEDURE


1. DTC CONFIRMATION

1.Erase DTC.
2.Turn the ignition switch OFF.
3.Perform the "Self Diagnostic Result" of CONSULT, when passed 2 seconds or more after the ignition switch is turned ON.
Is any DTC detected?
YES- .
NO- INSPECTION END


Diagnosis Procedure


1. CHECK BCM IGNITION POWER SUPPLY CIRCUIT

Check BCM ignition power supply circuit. Without Intelligent Key System.
Is the circuit normal?
YES- GO TO 2
NO- Repair the malfunctioning part.

2. CHECK IPDM E/R POWER SUPPLY CIRCUIT

Check IPDM E/R power supply circuit. IPDM E/R Without I-Key.
Is the circuit normal?
YES- GO TO 3.
NO- Repair the malfunctioning part.

3. CHECK IPDM E/R IGNITION RELAY STATUS

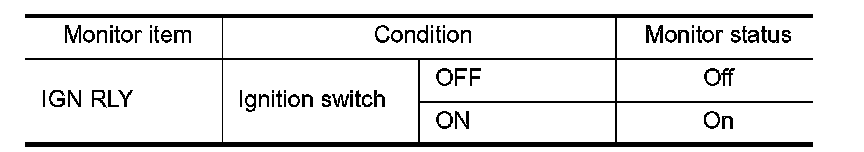

CONSULT DATA MONITOR
1.Select "IGN RLY" of IPDM E/R data monitor item.
2.With operating the ignition switch, check the monitor status.





Is the item status normal?
YES- Replace BCM. Service and Repair.
NO- Replace IPDM E/R. IPDM E/R (Without I-Key).
