C1707

DTC Logic


DTC DETECTION LOGIC







DTC CONFIRMATION PROCEDURE


1. PERFORM DTC CONFIRMATION

With CONSULT
1.Turn the ignition switch ON.

CAUTION:
Never start the engine.
2.Check the tire pressure for all wheels and adjust to the specified value. [1][2]Specifications.
3.Perform self-diagnosis for "AIR PRESSURE MONITOR".
Is DTC "C1704", "C1705", "C1706", or "C1707" detected?
YES- Proceed to .
NO- INSPECTION END


Diagnosis Procedure


1. TIRE PRESSURE SENSOR ID REGISTRATION

Perform tire pressure sensor ID registration. Work Procedure.
Is tire pressure sensor ID registration completed?
YES- GO TO 2.
NO- Replace applicable tire pressure sensor. With Intelligent Key (With intelligent key), "WITHOUT INTELLIGENT KEY : Removal and
Installation" (Without intelligent key).

2. CHECK TIRE PRESSURE

Check the air pressure of all wheels. [1][2]Specifications.

CAUTION:
If the checked value is close to the standard, reduce the tire pressure, and then with the ignition switch ON, adjust the tire pressure again so that it is within the standard.
Is the inspection result normal?
YES- Perform "DTC CONFIRMATION PROCEDURE" (self-diagnosis) again. .
NO- After adjusting the air pressure, GO TO 3

3. CHECK TIRE PRESSURE SIGNAL

With CONSULT

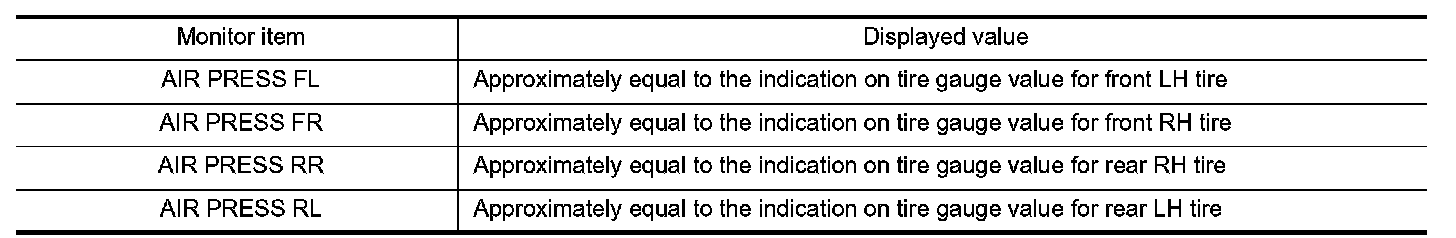

1.Select "DATA MONITOR" in "AIR PRESSURE MONITOR" of "BCM".
2.Check that the tire pressures match the standard value.





Is the inspection result normal?
YES- After erasing DTC record, INSPECTION END.
NO- Repair or replace error-detected parts.
