C1144

C1144 INCOMPLETE STEERING ANGLE SENSOR ADJUSTMENT

DTC Logic

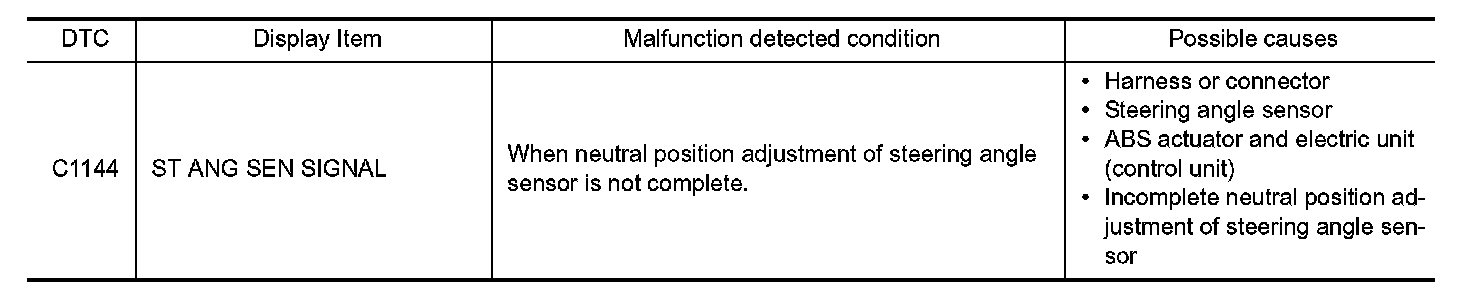

DTC DETECTION LOGIC







DTC CONFIRMATION PROCEDURE


1. PRECONDITIONING

If "DTC CONFIRMATION PROCEDURE" has been previously conducted, always turn ignition switch OFF and wait at least 10 seconds before conducting the next test.
- GO TO 2.

2. CHECK DTC DETECTION

With CONSULT
1.Turn the ignition switch OFF to ON.
2.Perform self-diagnosis for "ABS".
Is DTC "C1144" detected?
YES- Proceed to .
NO- INSPECTION END


Diagnosis Procedure


1. ADJUST THE NEUTRAL POSITION OF STEERING ANGLE SENSOR

Perform neutral position adjustment of steering angle sensor. Work Procedure.
- GO TO 2.

2. CHECK ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)

With CONSULT
Perform self-diagnosis for "ABS".
Is DTC "C1144" detected?
YES- GO TO 3.
NO- INSPECTION END

3. CHECK STEERING ANGLE SENSOR SYSTEM

1.Turn the ignition switch OFF.
2.Check the steering angle sensor system. C1143.
Is the inspection result normal?
YES- Replace ABS actuator and electric unit (control unit). Removal And Installation.
NO- Repair or replace error-detected parts.
