B26F8

B26F8 BCM

DTC Logic

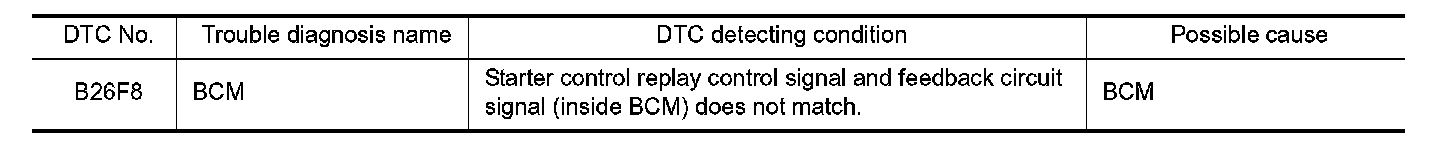

DTC DETECTION LOGIC

NOTE:
DTC B26F8 can be detected even though the related circuit is not used in this vehicle.






DTC CONFIRMATION PROCEDURE


1. PERFORM DTC CONFIRMATION PROCEDURE

1.Turn ignition switch ON and wait 1 second.
2.Check DTC in "Self Diagnostic Result" mode of "BCM" using CONSULT.
Is DTC detected?
YES- Go to .
NO- INSPECTION END


Diagnosis Procedure


1. INSPECTION START

1.Turn ignition switch ON.
2.Select "Self Diagnostic Result" mode of "BCM" using CONSULT.
3.Touch "ERASE".
4.Perform DTC CONFIRMATION PROCEDURE for DTC B26F8.
.
Is DTC detected?
YES- GO TO 2.
NO- INSPECTION END

2. REPLACE BCM

1.Replace BCM. With Intelligent Key System.
2.Perform initialization of BCM and registration of all Intelligent Keys using CONSULT.
- INSPECTION END
