B26F6

B26F6 BCM

DTC Logic

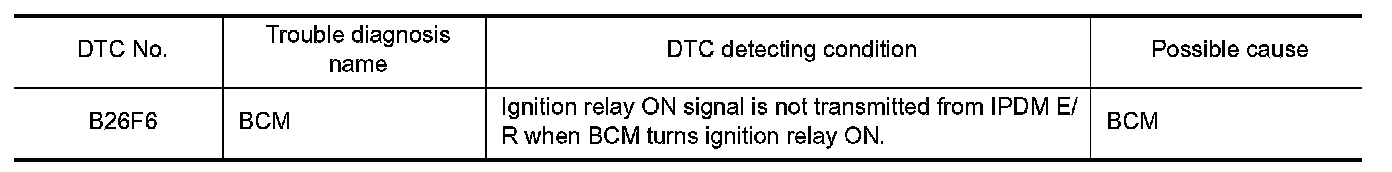

DTC DETECTION LOGIC

NOTE:
- If DTC B26F6 is displayed with DTC U1000, first perform the trouble diagnosis for DTC U1000. Refer to
With Intelligent Key System.
- If DTC B26F6 is displayed with DTC U1010, first perform the trouble diagnosis for DTC U1010. Refer to
With Intelligent Key System.






DTC CONFIRMATION PROCEDURE


1. PERFORM DTC CONFIRMATION PROCEDURE

1.Turn ignition switch ON under the following conditions, and wait for 1 second or more.
-Selector lever is in the P or N position
-Do not depress brake pedal
-Do not depress clutch pedal
2.Check "Self-diagnosis result" of BCM with CONSULT.
Is DTC detected?
YES- Go to .
NO- INSPECTION END


Diagnosis Procedure


1. INSPECTION START

1.Turn ignition switch ON.
2.Select "Self-diagnosis result" of BCM with CONSULT.
3.Touch "ERASE".
4.Perform DTC Confirmation Procedure.
See Testing and Inspection.
Is DTC detected?
YES- Replace BCM. With Intelligent Key System
NO- INSPECTION END
