B2622

B2622 INSIDE ANTENNA

DTC Logic

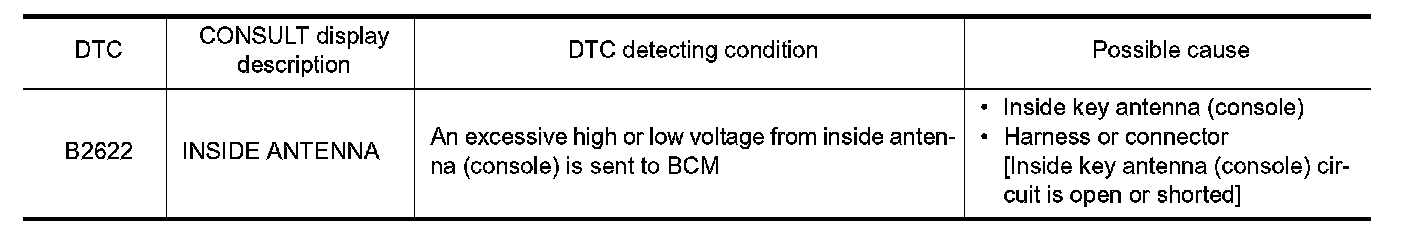

DTC DETECTION LOGIC







DTC CONFIRMATION PROCEDURE


1. PERFORM DTC CONFIRMATION PROCEDURE

1.Select "INTELLIGENT KEY" of "BCM" using CONSULT.
2.Select "INSIDE ANT DIAGNOSIS" in "WORK SUPPORT" mode.
3.Perform inside key antenna ("INSIDE ANT DIAGNOSIS") on "WORK SUPPORT" of "INTELLIGENT
KEY".
4.Check BCM for DTC.
Is inside key antenna DTC detected?
YES- .
NO- Inside key antenna (console) is OK.


Diagnosis Procedure


1. CHECK INSIDE KEY ANTENNA INPUT SIGNAL 1

1.Turn ignition switch ON.

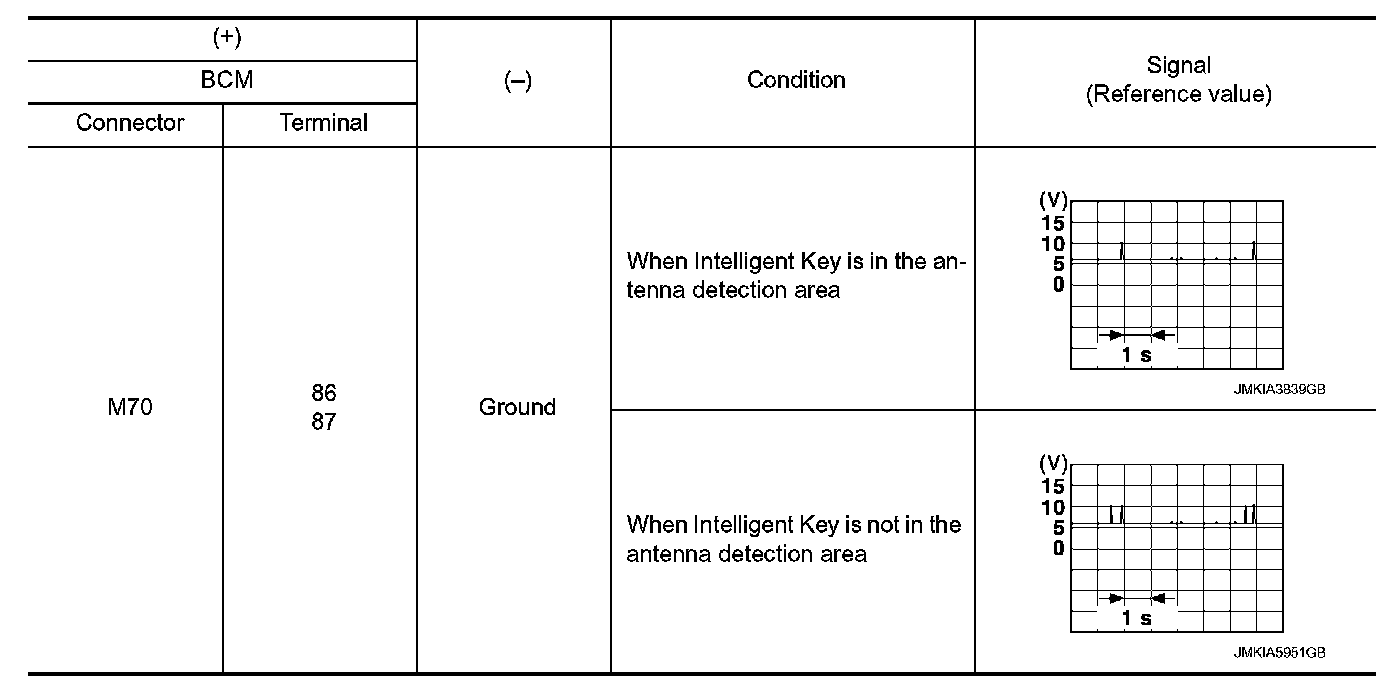

2.Check signal between BCM harness connector and ground using oscilloscope.





Is the inspection result normal?
YES- Replace BCM. With Intelligent Key System.
NO- GO TO 2.

2. CHECK INSIDE KEY ANTENNA CIRCUIT

1.Turn ignition switch OFF.
2.Disconnect BCM connector and inside key antenna (console) connector.

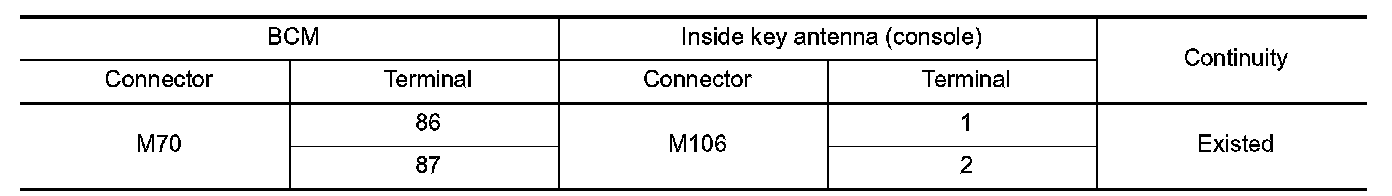

3.Check continuity between BCM harness connector and inside key antenna (console) harness connector.

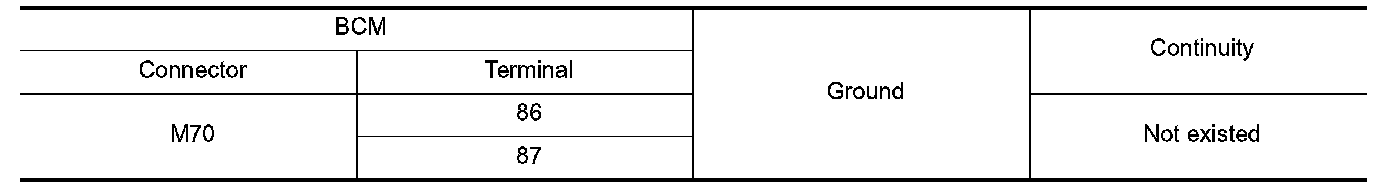

4.Check continuity between BCM harness connector and ground.





Is the inspection result normal?
YES- GO TO 3.
NO- Repair or replace harness.

3. CHECK INSIDE KEY ANTENNA INPUT SIGNAL 2

1.Replace inside key antenna (console). (New antenna or other antenna)
2.Connect BCM connector and inside key antenna (console) connector.
3.Turn ignition switch ON.

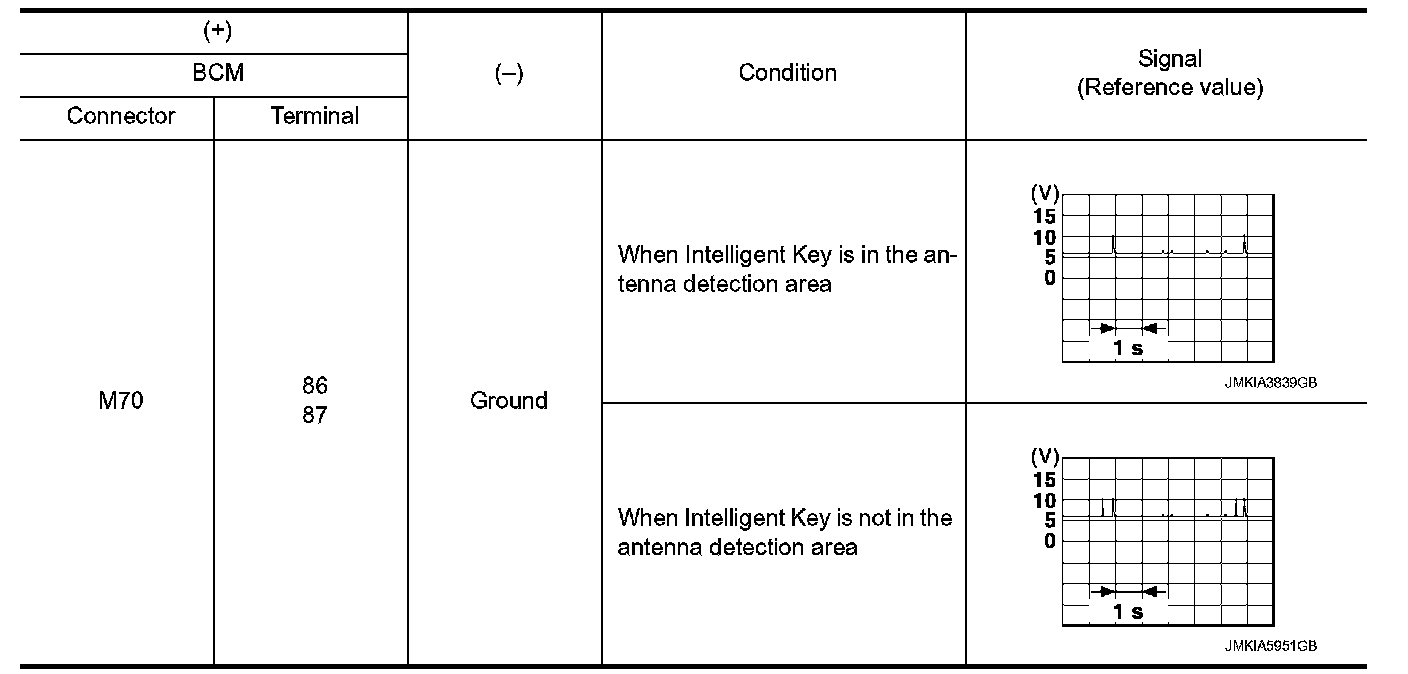

4.Check signal between BCM harness connector and ground using oscilloscope.





Is the inspection result normal?
YES- Replace inside key antenna (console).
NO- Replace BCM. With Intelligent Key System.
