B260F

B260F ENGINE STATUS

Description

BCM receives the engine status signal from ECM via CAN communication.


DTC Logic

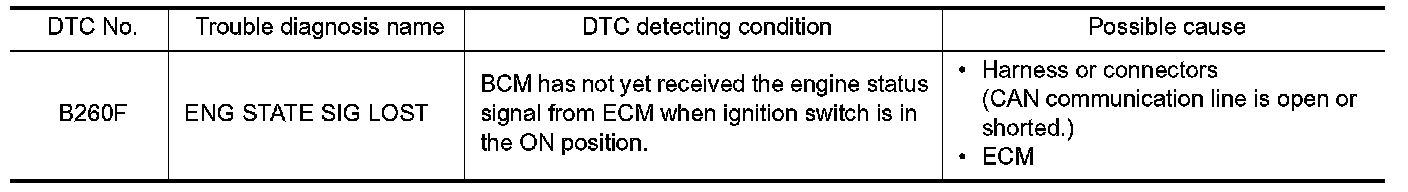

DTC DETECTION LOGIC

NOTE:
- If DTC B260F is displayed with DTC U1000, first perform the trouble diagnosis for DTC U1000. Refer to
With Intelligent Key System.
- If DTC B260F is displayed with DTC U1010, first perform the trouble diagnosis for DTC U1010. Refer to
With Intelligent Key System.






DTC CONFIRMATION PROCEDURE


1. PERFORM DTC CONFIRMATION PROCEDURE

1.Turn ignition switch ON and wait 2 seconds or more.
2.Check DTC in "Self Diagnostic Result" mode of "BCM" using CONSULT.
Is DTC detected?
YES- Go to .
NO- INSPECTION END


Diagnosis Procedure


1. INSPECTION START

1.Turn ignition switch ON.
2.Select "Self Diagnostic Result" mode of "BCM" using CONSULT.
3.Touch "ERASE".
4.Perform DTC CONFIRMATION PROCEDURE for DTC B260F. .
Is DTC detected?
YES- GO TO 2.
NO- INSPECTION END

2. REPLACE ECM

Replace ECM.
Service and Repair.
- INSPECTION END
