B2605

B2605 SHIFT POSITION

DTC Logic

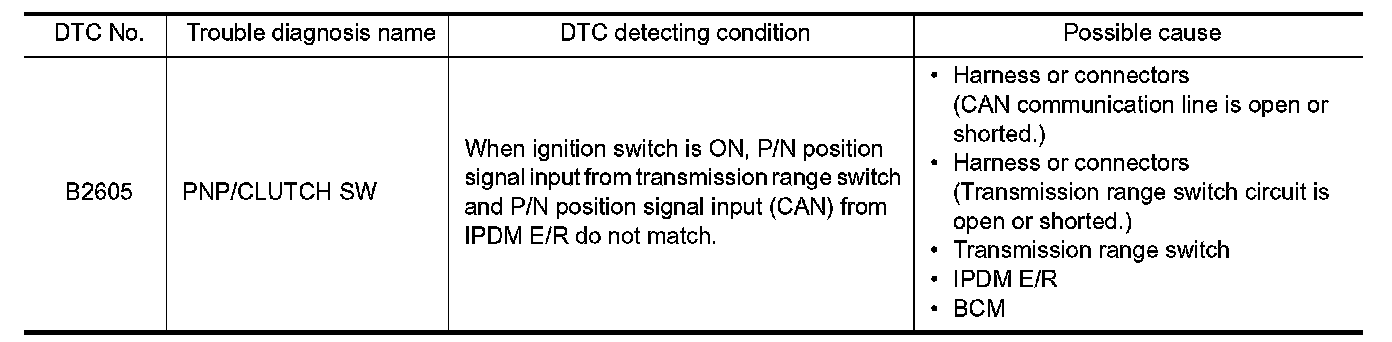

DTC DETECTION LOGIC

NOTE:
- If DTC B2605 is displayed with DTC U1000, first perform the trouble diagnosis for DTC U1000. Refer to
With Intelligent Key System.
- If DTC B2605 is displayed with DTC U1010, first perform the trouble diagnosis for DTC U1010. Refer to
With Intelligent Key System.






DTC CONFIRMATION PROCEDURE


1. PERFORM DTC CONFIRMATION PROCEDURE

1.Shift the selector lever to the P position.
2.Turn ignition switch ON and wait 1 second or more.
3.Shift the selector lever to the N position and wait 1 second or more.
4.Shift the selector lever to any position other than P and N, and wait 1 second or more.
5.Check DTC in "Self Diagnostic Result" mode of "BCM" using CONSULT.
Is DTC detected?
YES- Go to .
NO- INSPECTION END


Diagnosis Procedure


1. CHECK IPDM E/R INPUT SIGNAL CIRCUIT

1.Turn ignition switch OFF.
2.Disconnect IPDM E/R connector.
3.Disconnect BCM connector.

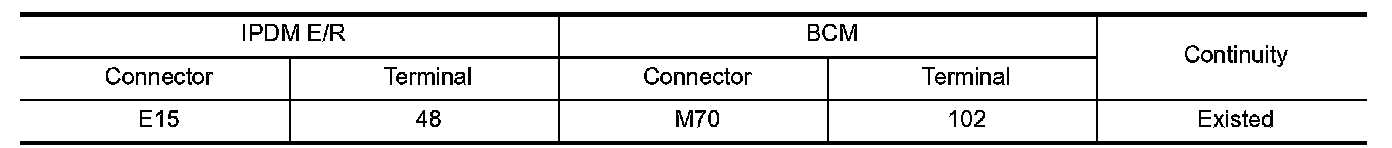

4.Check continuity between IPDM E/R harness connector and BCM harness connector.





Is the inspection result normal?
YES- GO TO 2.
NO- Repair or replace harness.

2. REPLACE BCM

1.Replace BCM. With Intelligent Key System.
2.Perform initialization of BCM and registration of all Intelligent Keys using CONSULT.
3.Perform DTC CONFIRMATION PROCEDURE for B2605. .
Is DTC B2605 detected again?
YES- Replace IPDM E/R. IPDM E/R (With I-Key).
NO- INSPECTION END
