B2562

B2562 LOW VOLTAGE

DTC Logic

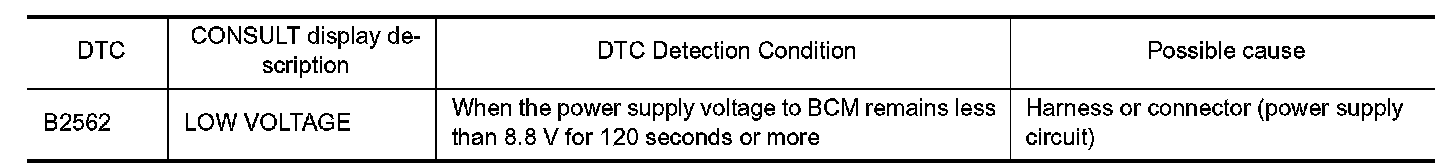

DTC DETECTION LOGIC







DTC CONFIRMATION PROCEDURE


1. DTC CONFIRMATION

1.Erase DTC.
2.Turn ignition switch OFF.
3.Perform the "Self Diagnostic Result" of BCM with CONSULT, when passed 120 seconds or more after the ignition switch is turned ON.
Is any DTC detected?
YES- .
NO- INSPECTION END


Diagnosis Procedure


1. CHECK POWER SUPPLY CIRCUIT

Check BCM power supply circuit. With Intelligent Key System.
Is the circuit normal?
YES- Replace BCM. With Intelligent Key System.
NO- Repair the malfunctioning part.
