B2268

Description

The engine coolant temperature signal is transmitted from ECM to the combination meter via CAN communication.


DTC Logic

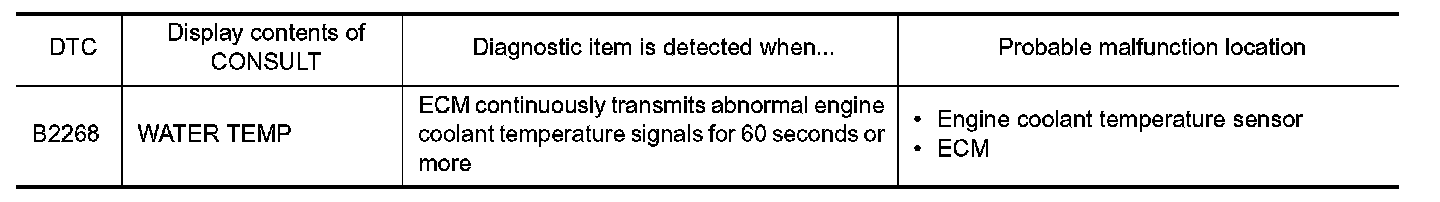

DTC DETECTION LOGIC








Diagnosis Procedure


1. PERFORM SELF-DIAGNOSIS OF ECM

Perform "Self Diagnosis Result" of "ENGINE", and repair or replace malfunctioning parts.
- Testing and Inspection.
