B2205

Description

Vehicle speed signal is transmitted from ABS actuator and electric unit (control unit) via CAN communication to combination meter.


DTC Logic

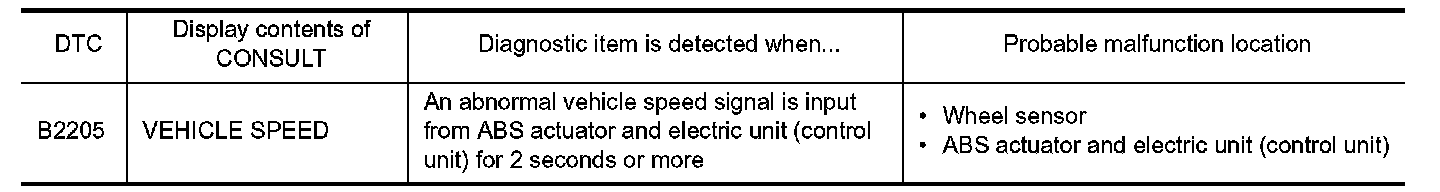

DTC DETECTION LOGIC








Diagnosis Procedure


1. PERFORM SELF-DIAGNOSIS OF ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)

Perform "Self Diagnostic Result" of "ABS", and repair or replace malfunctioning parts.
- Scan Tool Testing and Procedures.
