B2198

B2198 NATS ANTENNA AMP.

DTC Logic

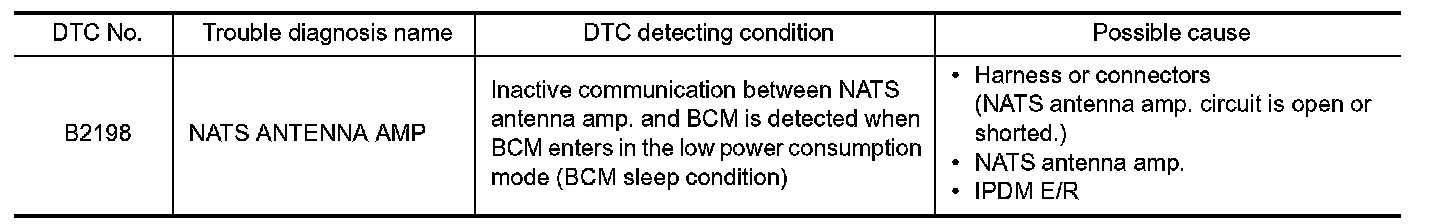

DTC DETECTION LOGIC







DTC CONFIRMATION PROCEDURE


1. PERFORM DTC CONFIRMATION PROCEDURE

1.Make the conditions that BCM enters in the low power consumption mode (BCM sleep condition).
With Intelligent Key System.
2.Turn ignition switch ON.
3.Check DTC in "Self Diagnostic Result" mode of "BCM" using CONSULT.
Is DTC detected?
YES- Go to .
NO- INSPECTION END


Diagnosis Procedure


1. CHECK FUSE

1.Turn ignition switch OFF.

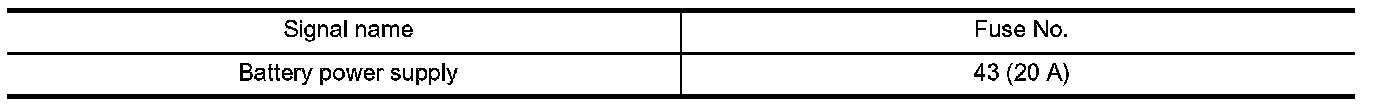

2.Check that the following fuse in IPDM E/R is not blown.





Is the inspection result normal?
YES- GO TO 2.
NO- Replace the blown fuse after repairing the cause of blowing.

2. CHECK NATS ANTENNA AMP. POWER SUPPLY

1.Disconnect NATS antenna amp. connector.

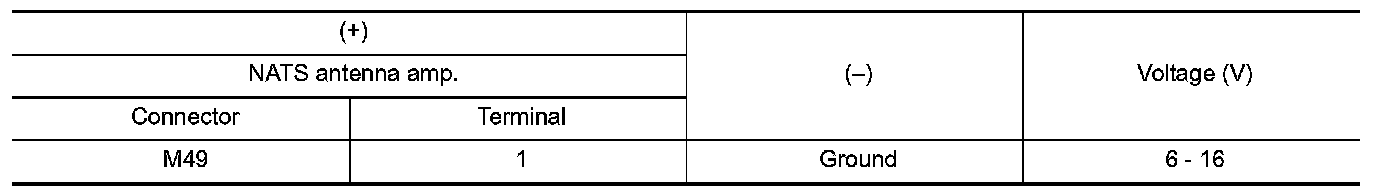

2.Check voltage between NATS antenna amp. harness connector and ground.





Is the inspection result normal?
YES- GO TO 4.
NO- GO TO 3.

3. CHECK NATS ANTENNA AMP. POWER SUPPLY CIRCUIT

1.Disconnect IPDM E/R connector.

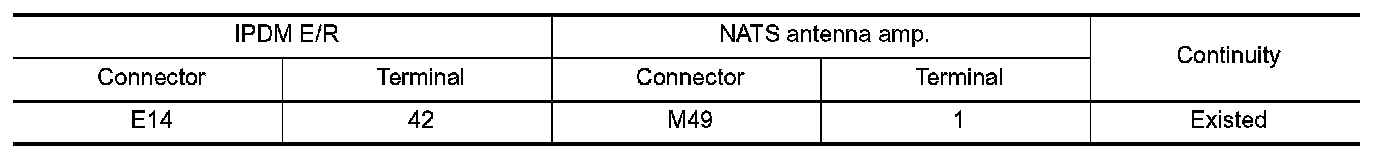

2.Check continuity between IPDM E/R harness connector and NATS antenna amp. connector.





Is the inspection result normal?
YES- Replace IPDM E/R. IPDM E/R (With I-Key).
NO- Repair or replace harness.

4. CHECK NATS ANTENNA AMP. GROUND CIRCUIT

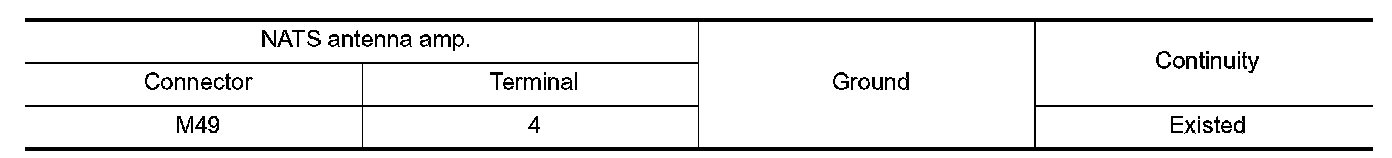

Check continuity between NATS antenna amp. harness connector and ground.





Is the inspection result normal?
YES- GO TO 5.
NO- Repair or replace harness.

5. CHECK NATS ANTENNA AMP. COMMUNICATION SIGNAL 1

Check voltage signal between NATS antenna amp. harness connector and ground using an oscilloscope.





Is the inspection result normal?
YES- GO TO 7.
NO- GO TO 6.

6. CHECK NATS ANTENNA AMP. OUTPUT SIGNAL CIRCUIT 1

1.Disconnect BCM connector.

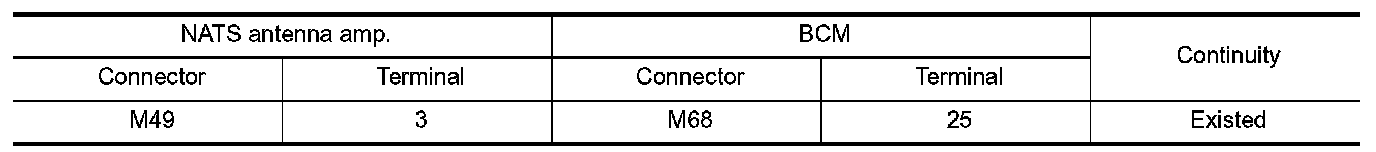

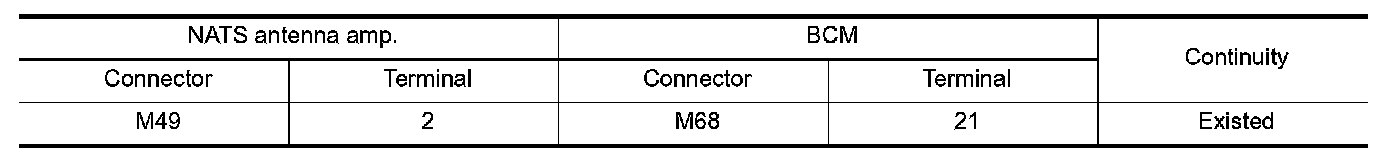

2.Check continuity between NATS antenna amp. connector and BCM harness connector.

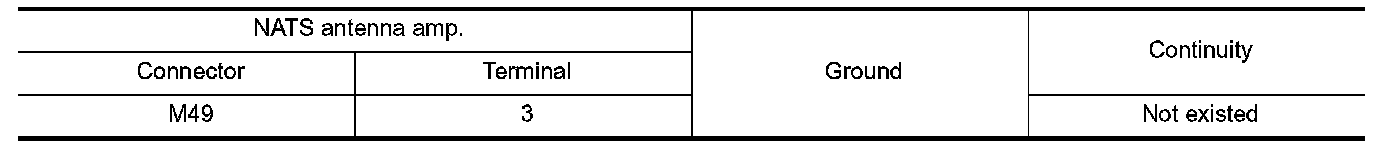

3.Check continuity between BNATS antenna amp. harness connector and ground.





Is the inspection result normal?
YES- GO TO 9.
NO- Repair or replace harness.

7. CHECK NATS ANTENNA AMP. COMMUNICATION SIGNAL 2

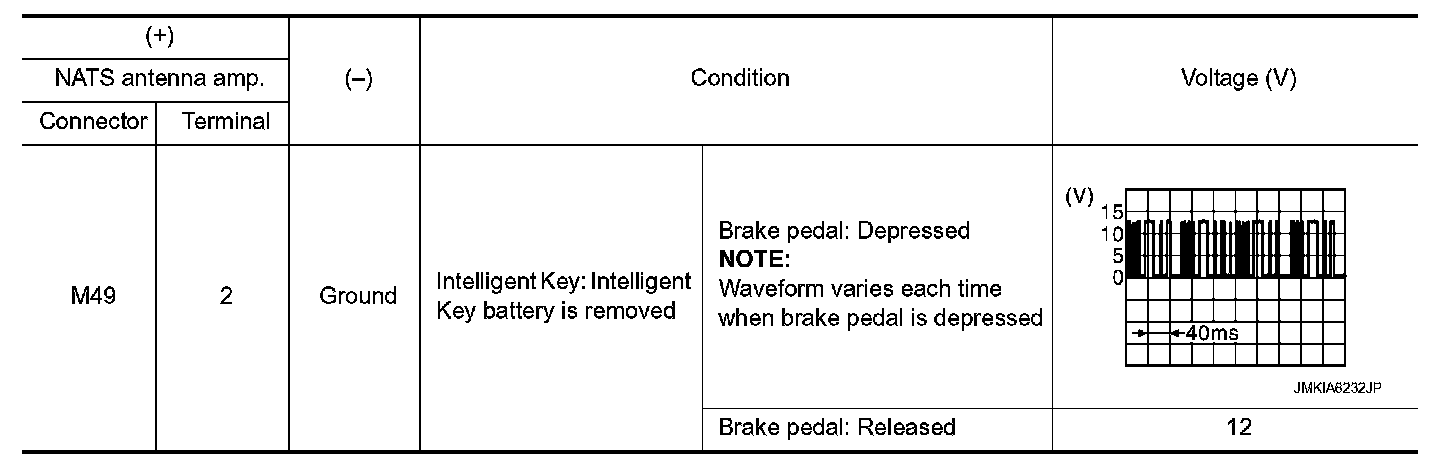

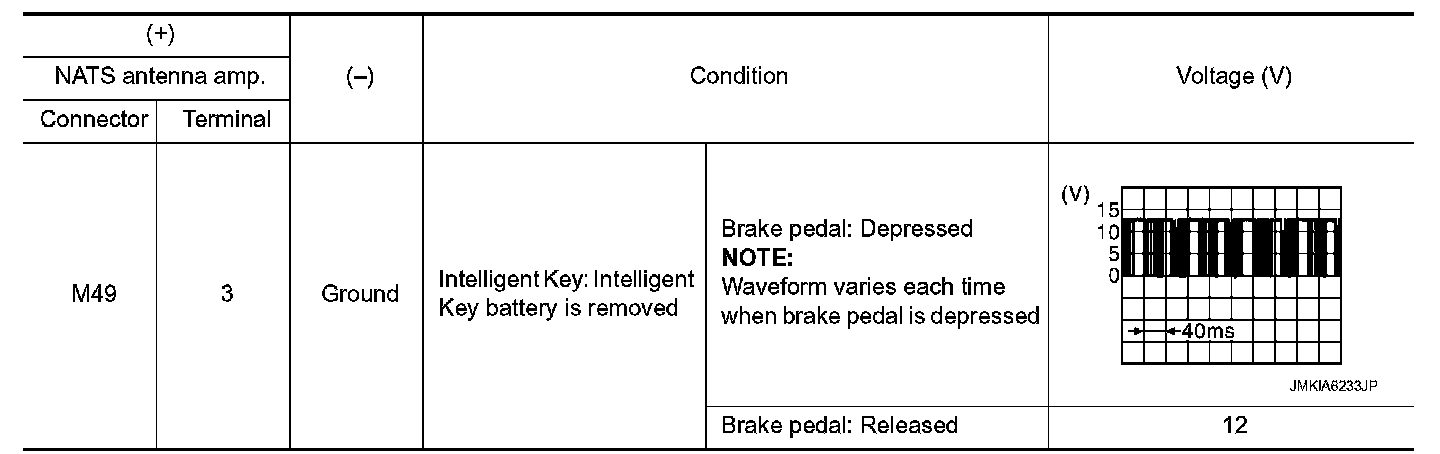

Check voltage signal between NATS antenna amp. harness connector and ground using an oscilloscope.





Is the inspection result normal?
YES- Replace NATS antenna amp. With Intelligent Key System.
NO- GO TO 8.

8. CHECK NATS ANTENNA AMP. OUTPUT SIGNAL CIRCUIT 2

1.Disconnect BCM connector.
2.Check continuity between NATS antenna amp. harness connector and BCM connector.

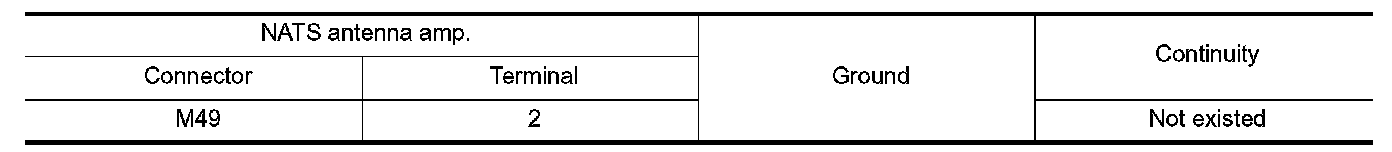

3.Check continuity between NATS antenna amp. harness connector and ground.





Is the inspection result normal?
YES- GO TO 9.
NO- Repair or replace harness.

9. REPLACE BCM

1.Replace BCM. With Intelligent Key System.
2.Perform initialization of BCM and registration of all Intelligent Keys using CONSULT.
- INSPECTION END
