Without Intelligent Key System

B2196 DONGLE UNIT

Description

BCM performs ID verification between BCM and dongle unit.
When verification result is OK, BCM permits cranking.


DTC Logic

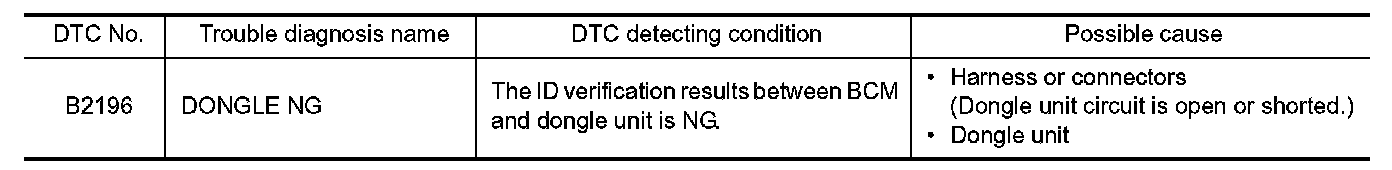

DTC DETECTION LOGIC







DTC CONFIRMATION PROCEDURE


1. PERFORM DTC CONFIRMATION PROCEDURE

1.Turn ignition switch ON.
2.Turn ignition switch OFF.
3.Turn ignition switch ON.
4.Check DTC in "Self-diagnosis result" mode of "BCM" using CONSULT.
Is the DTC detected?
YES- .
NO- INSPECTION END


Diagnosis Procedure


1. PERFORM INITIALIZATION

1.Perform initialization of BCM and registration of all Intelligent Keys using CONSULT.
2.Start the engine.
Dose the engine start?
YES- INSPECTION END
NO- GO TO 2.

2. CHECK DONGLE UNIT CIRCUIT

1.Turn ignition switch OFF.
2.Disconnect BCM connector and dongle unit connector.

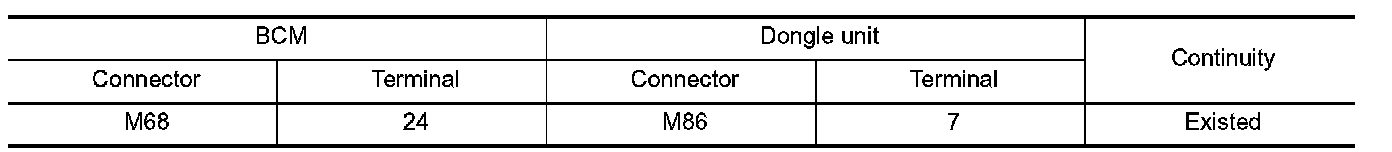

3.Check continuity between BCM harness connector and dongle unit harness connector.

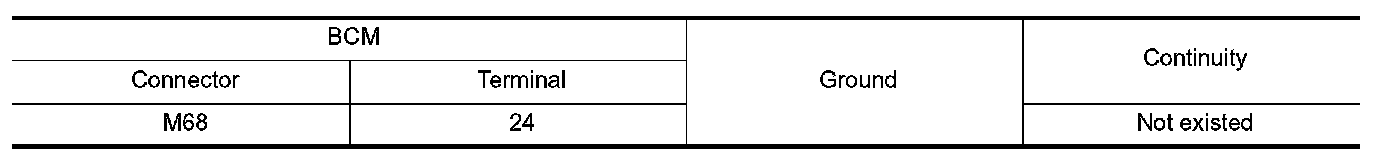

4.Check continuity between BCM harness connector and ground.





Is the inspection result normal?
YES- GO TO 3.
NO- Repair or replace harness.

3. CHECK DONGLE UNIT GROUND CIRCUIT

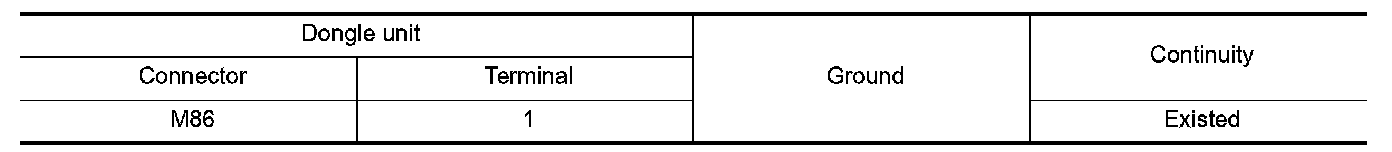

Check continuity between dongle unit harness connector and ground.





Is the inspection result normal?
YES- Replace dongle unit.
NO- Repair or replace harness.
